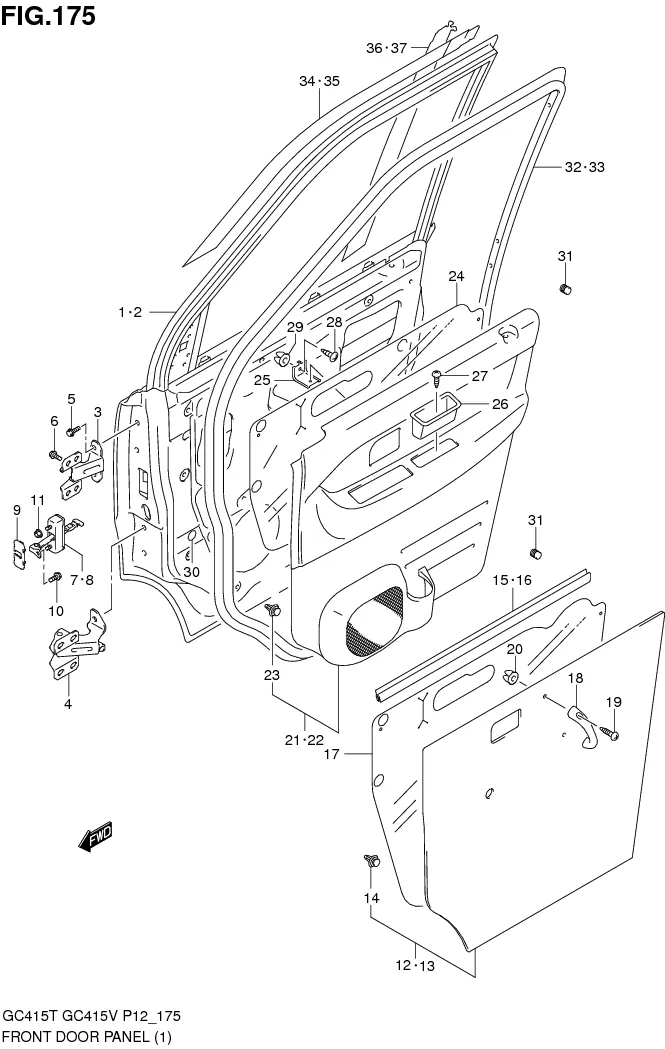

FIG.175 FRONT DOOR PANEL (TYPE 1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68001-61J10-000	PANEL, FRONT DOOR RH	1	Rp3.443.000
2	68002-61J10-000	PANEL, FRONT DOOR LH	1	Rp3.443.000
3	69310-61J00-000	HINGE, DOOR UPPER	2	Rp486.500
4	69330-61J00-000	HINGE, DOOR LOWER	2	Rp486.500
5	01551-0825A-000	BOLT	8	Rp16.000
6	01551-0820A-000	BOLT	8	Rp17.500
7	81810-61J01-000	STOP, DOOR OPEN RH	1	Rp105.000
8	81820-61J01-000 SUB: 81820-61J00-000	STOP, DOOR OPEN LH	1	Rp105.000
9	81891-61J00-000	COVER, DOOR OPEN STOP	2	Rp39.000
10	09112-08015-000	BOLT (8X25)	2	Rp32.000
11	08316-1006A-000 SUB: 08316B1006AN000	NUT	4	Rp2.000
12	83710-61J00-P4Z	TRIM, FRONT DOOR RH (GRAY)	1	Rp121.500	VAN,GA
13	83720-61J00-P4Z	TRIM, FRONT DOOR LH (GRAY)	1	Rp121.500	VAN,GA
14	09409-10327-000 SUB: 09409B10312N000	.CLIP	20	Rp5.000	VAN,GA
15	83851-61J00-000	WEATHERSTRIP, DOOR INNER RH	1	Rp45.000	VAN,GA
16	83861-61J00-000	WEATHERSTRIP, DOOR INNER LH	1	Rp45.000	VAN,GA
17	83911-61J00-000	COVER, DOOR SEALING	2	Rp93.000	VAN,GA
18	76411-70G00-P4Z	GRIP, DOOR INSIDE HANDLE (GRAY)	2	Rp150.000	VAN,GA
19	03111-0625A-000	SCREW	4	Rp11.500	VAN,GA
20	71851M70F00-000 SUB: 09148M06007-000	NUT	4	Rp4.000	VAN,GA
21-1	DISCONTINUE SUB: 83701-61J70-BFA	TRIM ASSY, FRONT DOOR RH (GRAY)	1	-	GL
21-2	DISCONTINUE SUB: 83701-61J50-AYL	TRIM ASSY, FRONT DOOR RH (BEIGE)	1	-	GLX
22-1	DISCONTINUE SUB: 83702-61J80-BFA	TRIM ASSY, FRONT DOOR LH (GRAY)	1	-	GL
22-2	DISCONTINUE SUB: 83702-61J60-AYL	TRIM ASSY, FRONT DOOR LH (BEIGE)	1	-	GLX
23	09409-10327-000 SUB: 09409B10312N000	.CLIP	18	Rp5.000	GL,GLX
24-1	83911-61J00-000	COVER, DOOR SEALING	2	Rp93.000	GL
24-2	DISCONTINUE SUB: 83911-61J10-000	COVER, DOOR SEALING	2	-	GLX
25	83751-61J00-000	BRACKET, FRONT DOOR TRIM	2	Rp6.000	GL,GLX
26-1	83799M73H00-P4Z	CASE, INSIDE PULL HANDLE (GRAY)	2	Rp19.000	GL
26-2	83799-73H00-R8H	CASE, INSIDE PULL HANDLE (BEIGE)	2	Rp120.500	GLX
27	09132-05058-000	SCREW (5X12)	2	Rp14.000	GL,GLX
28	03241M0612A-000	SCREW	2	Rp6.500	GL,GLX
29	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000	GL,GLX
30	77195-61J00-000	FILM	2	Rp31.000
31	82711M70F00-000 SUB: 82711M56B00-000	STOPPER, DOOR	4	Rp8.500
32	84641-61J00-000	WEATHERSTRIP, DOOR OPENING RH	1	Rp224.500
33	84651-61J00-000	WEATHERSTRIP, DOOR OPENING LH	1	Rp224.500
34	83921-61J00-0CC	TAPE, SASH ROOF RH (BLACK)	1	Rp83.500	GLX
35	83922-61J00-0CC	TAPE, SASH ROOF LH (BLACK)	1	Rp83.500	GLX
36	83923-61J00-0CC	TAPE, SASH B-PILLAR RH (BLACK)	1	Rp29.000	GLX
37	83924-61J00-0CC	TAPE, SASH B-PILLAR LH (BLACK)	1	Rp29.000	GLX
