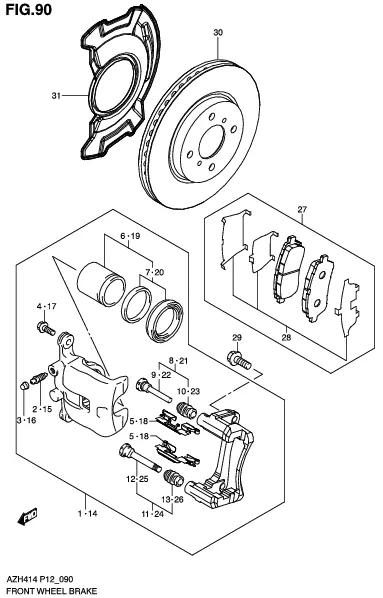

FIG.90 FRONT WHEEL BRAKE

FIG.90 FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55101-58M50-999
SUB: 55101B58M50N999		 CALIPER ASSY, FRONT BRAKE RH 1 Rp1.983.000
2 55151-78451-000
SUB: 55151B78451N000		 •PLUG, BLEEDER 1 Rp45.500
3 55156-58M00-000
SUB: 55156B58M00N000		 •CAP, BLEEDER PLUG 1 Rp39.000
4 55206-78452-000
SUB: 55206B78452N000		 •BOLT, PIN 2 Rp43.500
5 55234-68L00-000
SUB: 55234B68L00N000		 •SPRING, PAD 2 Rp75.000
6 55840-58M00-000
SUB: 55840B58M00N000		 •PISTON/SEAL SET 1 Rp263.500
7 55830-58M00-000
SUB: 55830B58M00N000		 ••SEAL SET, PISTON 1 Rp144.000
8 55851-58M50-000
SUB: 55851B58M50N000		 •BOOT SET, PIN 1 Rp192.500
9 55191-58M50-000
SUB: 55191B58M50N000		 ••PIN 1 Rp67.000
10 55201-58M50-000
SUB: 55201B58M50N000		 ••BOOT 1 Rp48.000
11 55852-58M50-000
SUB: 55852B58M50N000		 •BOOT SET,GUIDE PIN,B 1 Rp199.000
12 55192-58M50-000
SUB: 55192B58M50N000		 ••PIN,B 1 Rp67.500
13 55201-58M50-000
SUB: 55201B58M50N000		 ••BOOT 1 Rp48.000
14 55102-58M50-999
SUB: 55102B58M50N999		 CALIPER ASSY, FRONT BRAKE LH 1 Rp1.983.000
15 55151-78451-000
SUB: 55151B78451N000		 •PLUG, BLEEDER 1 Rp45.500
16 55156-58M00-000
SUB: 55156B58M00N000		 •CAP, BLEEDER PLUG 1 Rp39.000
17 55206-78452-000
SUB: 55206B78452N000		 •BOLT, PIN 2 Rp43.500
18 55234-68L00-000
SUB: 55234B68L00N000		 •SPRING, PAD 2 Rp75.000
19 55840-58M00-000
SUB: 55840B58M00N000		 •PISTON/SEAL SET 1 Rp263.500
20 55830-58M00-000
SUB: 55830B58M00N000		 ••SEAL SET, PISTON 1 Rp144.000
21 55851-58M50-000
SUB: 55851B58M50N000		 •BOOT SET, PIN 1 Rp192.500
22 55191-58M50-000
SUB: 55191B58M50N000		 ••PIN 1 Rp67.000
23 55201-58M50-000
SUB: 55201B58M50N000		 ••BOOT 1 Rp48.000
24 55852-58M50-000
SUB: 55852B58M50N000		 •BOOT SET,GUIDE PIN,B 1 Rp199.000
25 55192-58M50-000
SUB: 55192B58M50N000		 ••PIN,B 1 Rp67.500
26 55201-58M50-000
SUB: 55201B58M50N000		 ••BOOT 1 Rp48.000
27 55810-58M50-000
SUB: 55810B58M50N000		 PAD SET 1 Rp773.000
28 55820-58M50-000
SUB: 55820B58M50N000		 •SHIM SET 1 Rp239.000
29 09117-12012-000 BOLT (12X32) 4 Rp38.500
30 55311-58M50-000 DISC, FRONT BRAKE 2 Rp1.052.000
31 55321M74L00-000 COVER, BRAKE DISC DUST 2 Rp40.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
