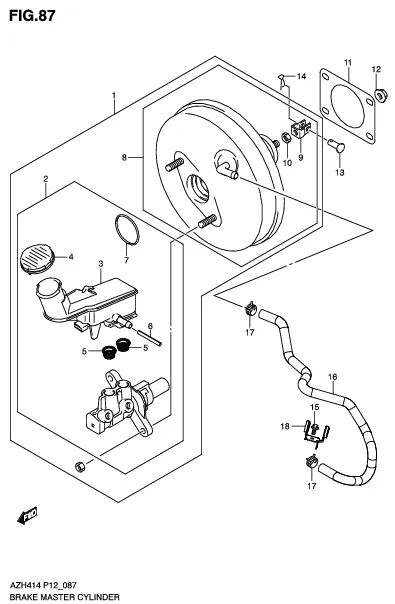

FIG.87 BRAKE MASTER CYLINDER

FIG.87 BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 51000-58M32-000
SUB: 51000-58M30-000		 CYLINDER ASSY, BRAKE MASTERAT 1 Rp3.033.500 AT
1-1 51000-58M22-000
SUB: 51000-58M20-000		 CYLINDER ASSY, BRAKE MASTER MT 1 Rp2.996.000 MT
2-1 51100-58M22-000
SUB: 51100-58M20-000		 •CYLINDER S/ASSY, BRAKE MASTER MT 1 Rp2.309.000 MT
2-2 51100-58M32-000
SUB: 51100-58M30-000		 •CYLINDER S/ASSY, BRAKE MASTER AT 1 Rp2.090.000 AT
3-1 51200-58M00-000 ••TANK ASSY MT 1 Rp496.500 MT
3-2 51200-58M10-000 ••TANK ASSYAT 1 Rp484.500 AT
4 51220-58M00-000 ••CAP, RESERVOIR 1 Rp188.000
5 51232-65J00-000 ••GROMMET 2 Rp39.500
6 51233M65J00-000
SUB: 51233-65J00-000		 ••SPRING PIN 1 Rp29.500
7 51311-58M00-000 ••O RING 1 Rp56.000
8 51300-58M21-000
SUB: 51300-58M20-000		 •BOOSTER ASSY, BRAKE MASTER 1 Rp3.082.000
9 51182-58M00-000 ••CLEVIS 1 Rp93.000
10 08316-1010A-000
SUB: 08316B1010BN000		 ••NUT 1 Rp3.500
11 51132-82003-000 PACKING, BRAKE MASTER CYLINDER 1 Rp33.000
12 09159-08127-000 NUT 4 Rp11.000
13 51151-58M00-000 PIN, BRAKE MASTER CYLINDER 1 Rp30.500
14 09385-08007-000 CLIP 1 Rp16.500
15 51022-71L00-000 BRACKET, VACUUM HOSE 1 Rp85.500
16 51010-58M00-000 HOSE, BRAKE VACUUM INTAKE 1 Rp195.500
17 09401-15404-000 CLIP 2 Rp14.500
18 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
