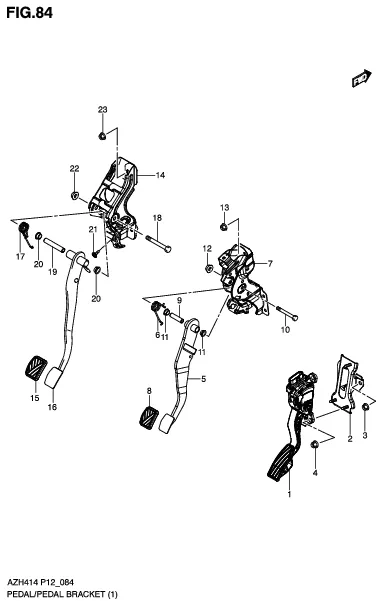

FIG.84 PEDAL/PEDAL BRACKET (MT:GL)

FIG.84 PEDAL/PEDAL BRACKET (MT:GL)
No No. Part Description Qty Price Per Pcs Remarks
1 49400-71L00-000 PEDAL ASSY, ACCELERATOR 1 Rp377.000
2 49511-68L00-000
SUB: 49511B68L00N000		 BRACKET, ACCELERATOR PEDAL 1 Rp58.000
3 09159-08127-000 NUT 3 Rp11.000
4 08316-1006A-000
SUB: 08316B1006AN000		 NUT 3 Rp2.000
5 49610-74L00-000 PEDAL, BRAKE 1 Rp1.100.500
6 49691-74L00-000
SUB: 49691B74L00N000		 SPRING, BRAKE PEDAL 1 Rp17.000
7 49710-68L00-000 BRACKET, BRAKE PEDAL 1 Rp988.500
8 49751M58J00-000
SUB: 49751-58J00-000		 PAD, PEDAL 1 Rp9.500
9 49871M80F00-000
SUB: 49871-80F00-000		 SPACER, BRAKE PEDAL SHAFT 1 Rp8.500
10 49881M75J00-000 BOLT, BRAKE PEDAL SHAFT 1 Rp9.500
11 09306M13004-000
SUB: 09307-13005-000		 BUSH 2 Rp11.500
12 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
13 09159-08127-000 NUT 1 Rp11.000
14 49720-74L00-000
SUB: 49720B74L00N000		 BRACKET, CLUTCH PEDAL 1 Rp176.500
15 49751M58J00-000
SUB: 49751-58J00-000		 PAD, PEDAL 1 Rp9.500
16 49810-74L00-000
SUB: 49810B74L00N000		 PEDAL, CLUTCH 1 Rp144.500
17 49891-68L10-000
SUB: 49891-68L00-000		 SPRING, CLUTCH PEDAL 1 Rp69.500
18 09100-10226-000 BOLT (10X85) 1 Rp19.500
19 09180-10121-000 SPACER (10.1X13X73.8) 1 Rp38.500
20 09306M13004-000
SUB: 09307-13005-000		 BUSH 2 Rp11.500
21 09321M06026-000
SUB: 09321-06026-000		 CUSHION 1 Rp4.500
22 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
23 09159-08127-000 NUT 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
