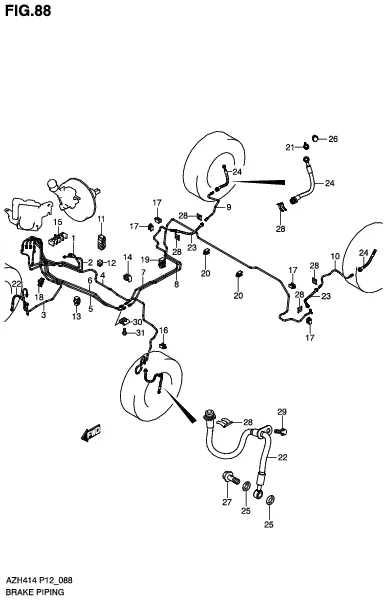

FIG.88 BRAKE PIPING

FIG.88 BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51410-58M10-000 PIPE, MA PRI TO HU 1 Rp423.000
2 51420-58M10-000 PIPE, MA SEC TO HU 1 Rp423.000
3 51430-58M00-000 PIPE, HU TO FR BRAKE HOSE RH 1 Rp438.500
4 51440-58M00-000 PIPE, HU TO FR BRAKE HOSE LH 1 Rp484.500
5 51450-58M00-000 PIPE, HU TO JOINT RH 1 Rp438.500
6 51460-58M00-000 PIPE, HU TO JOINT LH 1 Rp438.500
7 51470-58M00-000 PIPE, JOINT TO RR BK HOSE RH 1 Rp476.000
8 51480-58M00-000 PIPE, JOINT TO RR BK HOSE LH 1 Rp476.000
9 51510-58M20-000 PIPE, RR BK HOSE TO RR W/C RH 1 Rp60.000
10 51520-58M20-000 PIPE, RR BK HOSE TO RR W/C LH 1 Rp51.000
11 51751-77M00-000
SUB: 51751-65J40-000		 CLAMP, BRAKE PIPE 3 1 Rp6.500
12 51751-65J50-000 CLAMP, BRAKE PIPE DASH 1 2 Rp34.000
13 51751-77M10-000
SUB: 51751-76G00-000		 CLAMP, BRAKE PIPE SIDE MEMBER 1 Rp5.500
14 51751-77M10-000
SUB: 51751-76G00-000		 CLAMP, BRAKE PIPE MAIN FL 3 Rp5.500
15 51761-77M10-000
SUB: 51761-62J40-000		 CLAMP, BRAKE PIPE 4 1 Rp6.500
16 51761-77M20-000
SUB: 51761-68L00-000		 CLAMP, BRAKE PIPE SIDE MEMBER 1 Rp6.500
17 51761-58M00-000 CLAMP, BRAKE PIPE RR SIDE 4 Rp28.500
18 51761-58M00-000 CLAMP, BRAKE PIPE SIDE MEMBER 1 Rp28.500
19 51761-77M30-000
SUB: 51761M76G00-000		 CLAMP, BRAKE PIPE REAR FL 1 Rp6.500
20 51761-58M10-000 CLAMP, BRAKE PIPE REAR FL 2 Rp28.500
21 51543-65J01-000 WASHER,RR DISC FLEXIBLE HOSE 2 Rp111.500
22 51550-58M00-000
SUB: 51550B58M00N000		 HOSE, FR BRAKE FLEXIBLE 2 Rp282.000
23 51570-58M01-000
SUB: 51570-58M00-000		 HOSE, RR BRAKE FLEXIBLE 2 Rp105.000
24 51570-58M11-000
SUB: 51570-58M10-000		 HOSE, REAR DISC FLEXIBLE 2 -
25 09161-10009-000 WASHER (10X15X1.5) 4 Rp12.500
26 09360-10026-000 UNION 2 Rp26.000
27 51561M55K00-000
SUB: 09360-10046-000		 UNION 2 Rp8.500
28 09383M13004-000
SUB: 09383-13003-000		 E RING 8 Rp7.000
29 01551-0816C-000 BOLT 2 Rp17.500
30 51630M70F00-000 JOINT, BRAKE 4 WAY 1 Rp122.000
31 02162-0625A-000 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
