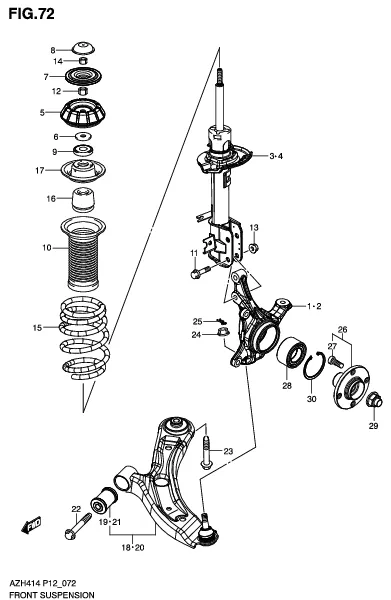

FIG.72 FRONT SUSPENSION

FIG.72 FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111-71L00-000 KNUCKLE, STEERING RH 1 Rp3.859.500
2 45151-71L00-000 KNUCKLE, STEERING LH 1 Rp3.859.500
3 41601-58M01-000
SUB: 41601-58M00-000		 STRUT ASSY, FR SUSPENSION RH 1 Rp2.665.000
4 41602-58M01-000
SUB: 41602-58M00-000		 STRUT ASSY, FR SUSPENSION LH 1 Rp2.665.000
5 41710-58M00-000 SUPPORT, FRONT STRUT 2 Rp365.500
6 41711M57K00-000
SUB: 41711-57K00-000		 PLATE, STRUT BEARING 2 Rp10.500
7 41720-58M00-000 STOPPER, FRONT STRUT REBOUND 2 Rp132.000
8 41724-58M00-000 CAP, STRUT ROD 2 Rp33.000
9 41742M57K10-000
SUB: 41742-57K00-000		 BEARING, FRONT STRUT 2 Rp81.000
10 41931-58M01-000
SUB: 41931-58M00-000		 COVER, STRUT DUST 2 Rp175.500
11 09103-12118-000 BOLT (12X50) 4 Rp33.000
12 09140-12049-000 NUT 2 Rp18.000
13 08316-1012A-000
SUB: 09159-12064-000		 NUT 4 Rp6.500
14 08310-0012A-000 NUT 2 Rp17.500
15 41111-58M00-000 SPRING, FRONT COIL 2 Rp626.000
16 42111-58M00-000 STOPPER, FRONT BUMP 2 Rp139.000
17 41230-58M00-000 SEAT, FRONT SPRING UPPER 2 Rp426.500
18 45201-58M00-000 ARM ASSY, FRONT SUSPENSION RH 1 Rp1.626.000
19 45530-58M00-000 •BUSHING, SUSPENSION ARM FRONT 1 Rp318.500
20 45202-58M00-000 ARM ASSY, FRONT SUSPENSION LH 1 Rp1.626.000
21 45530-58M00-000 •BUSHING, SUSPENSION ARM FRONT 1 Rp318.500
22 09135-14011-000 BOLT (14X90) 2 Rp65.500
23 09135-14018-000 BOLT (14X77) 2 Rp70.500
24 09159-12069-000 NUT 2 Rp23.000
25 09385-12002-000
SUB: 09385B12002N000		 CLIP 2 Rp4.500
26 43420-50853-000 HUB SET, FRONT WHEEL 2 Rp1.377.500
27 09119-12012-000 •BOLT (12X38) 8 Rp14.500
28 43440-58M00-000 BEARING, FRONT WHEEL 2 Rp659.500
29 09159-18024-000 NUT 2 Rp74.500
30 09381-72002-000
SUB: 09381-72L01-000		 CIRCLIP 2 Rp56.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
