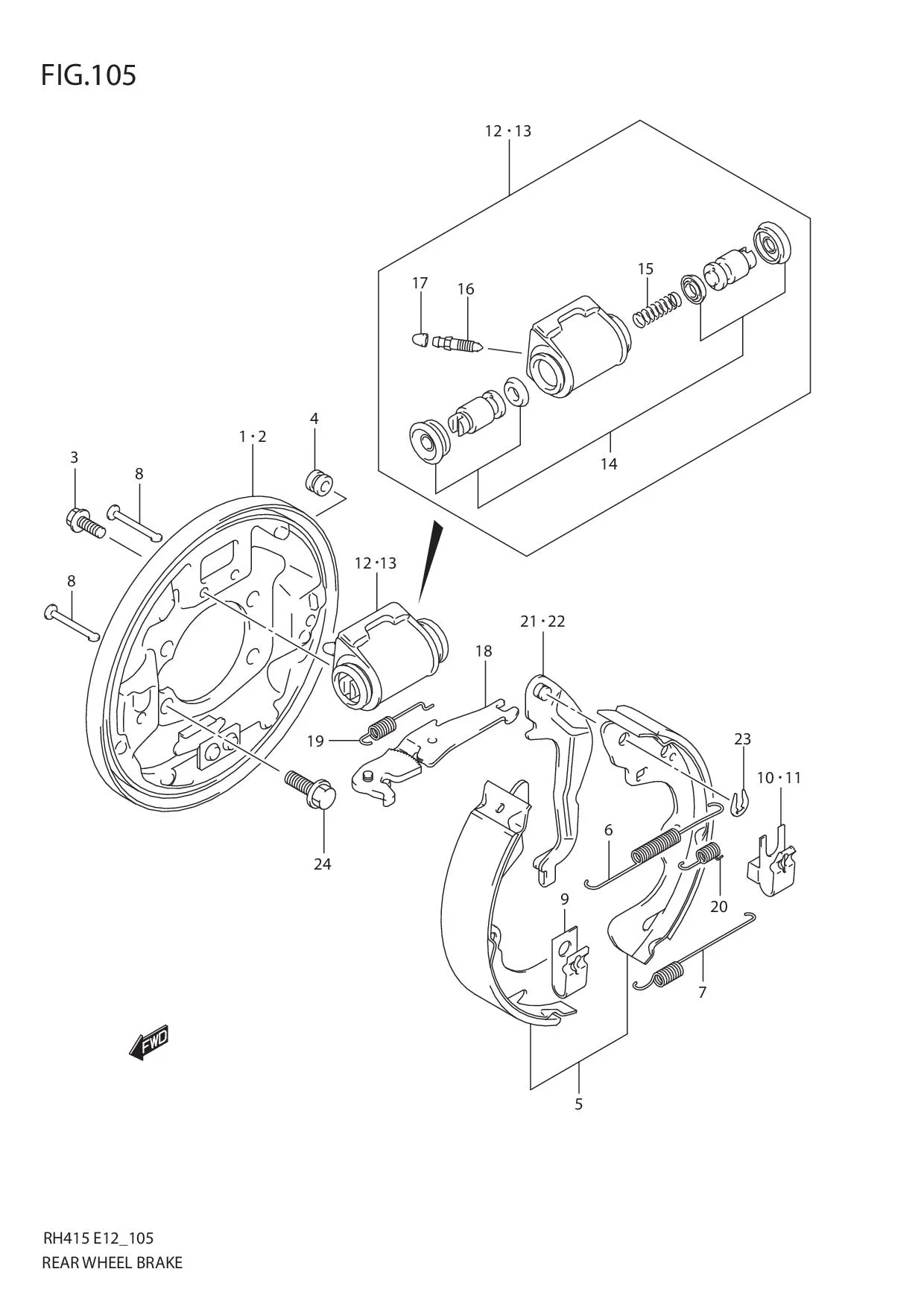

FIG.105 REAR WHEEL BRAKE

FIG.105 REAR WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 53101-60G01-000		 PLATE, BACKING RH 1 -
2 DISCONTINUE
SUB: 53102-60G01-000		 PLATE, BACKING LH 1 -
3 01550-0610B-000
SUB: 01550-06103L000		 BOLT 4 Rp3.000
4 DISCONTINUE
SUB: 53141-84010-000		 PLUG, BACKING PLATE 4 -
5 53200-69G13-000
SUB: 53200-69G11-000		 SHOE SET, BRAKE 1 Rp884.500
6 53231-70C00-000 SPRING, SHOE RETURN 2 Rp61.000
7 53232-85120-000 SPRING, SHOE RETURN LOWER 2 Rp54.500
8 53241-82030-000 PIN, SHOE HOLD DOWN 4 Rp21.500
9 53243-85010-000 SPRING, SHOE HOLD DOWN 2 Rp29.000
10 53244-82031-000 SPRING, SHOE HOLD DOWN RH 1 Rp58.500
11 53245-82031-000 SPRING, SHOE HOLD DOWN LH 1 Rp54.500
12 53401-63B00-000 CYLINDER ASSY, REAR WHEEL RH 1 Rp857.500
13 53402-63B00-000 CYLINDER ASSY, REAR WHEEL LH 1 Rp915.500
14 53400-70810-000 •PISTON CUP/BOOT SET 2 Rp111.000
15 DISCONTINUE
SUB: 53432-82030-000		 •SPRING, WHEEL CYLINDER 2 -
16 DISCONTINUE
SUB: 54542-19B00-000		 •PLUG, BLEEDER 2 -
17 55156M66310-000 •CAP, BLEEDER PLUG 2 Rp23.500
18 DISCONTINUE
SUB: 53700-70C00-000		 STRUT ASSY, BRAKE 2 -
19 53714-85010-000 SPRING, QUADRANT 2 Rp33.000
20 53715-70C00-000 SPRING, ANTIRATTLE 2 Rp33.000
21 DISCONTINUE
SUB: 53750-70C00-000		 LEVER, PARKING SHOE RH 1 -
22 53760-70C01-000
SUB: 53760-70C00-000		 LEVER, PARKING SHOE LH 1 Rp139.500
23 53753-82030-000 E RING, PARKING LEVER 2 Rp11.000
24 DISCONTINUE
SUB: 09112-10001-000		 BOLT (10X20) 8 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
