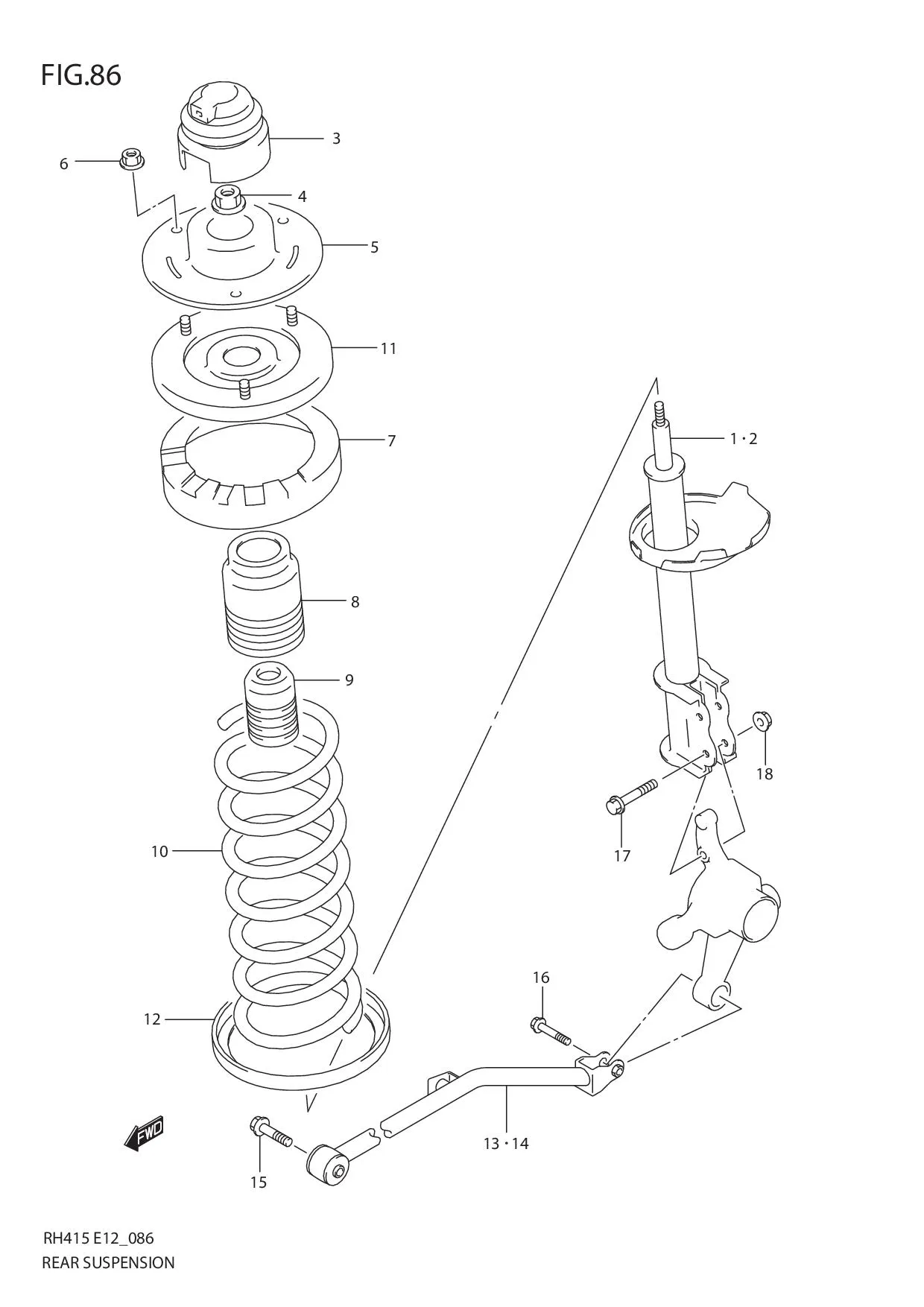

FIG.86 REAR SUSPENSION

FIG.86 REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1-2 41801-59JB0-000 STRUT ASSY, REAR SUSPENSION RH 1 Rp3.989.000 TYPE 2:4DR
1-3 DISCONTINUE
SUB: 41801-54G50-000		 STRUT ASSY, REAR SUSPENSION RH 1 - TYPE 1:5DR
1-4 41801-59J20-000 STRUT ASSY, REAR SUSPENSION RH 1 Rp3.830.500 TYPE 2:5DR
1-1 41801-55G50-000 STRUT ASSY, REAR SUSPENSION RH 1 Rp3.051.000 TYPE 1:4DR
2-1 41802-55G50-000 STRUT ASSY, REAR SUSPENSION LH 1 Rp3.051.000 TYPE 1:4DR
2-2 41802-59JB0-000 STRUT ASSY, REAR SUSPENSION LH 1 Rp3.989.000 TYPE 2:4DR
2-3 DISCONTINUE
SUB: 41802-54G50-000		 STRUT ASSY, REAR SUSPENSION LH 1 - TYPE 1:5DR
2-4 41802-59J20-000 STRUT ASSY, REAR SUSPENSION LH 1 Rp3.830.500 TYPE 2:5DR
3 DISCONTINUE
SUB: 41951-60G20-000		 CAP, STRUT UPPER 2 -
4 09159-12060-000 NUT 2 Rp45.500
5 41910-60G20-000 SUPPORT, REAR STRUT 2 Rp668.000
6 08316-1008A-000
SUB: 08316B10083N000		 NUT 6 Rp3.500
7 41341-60G00-000 SEAT, REAR SPRING 2 Rp179.500
8 41931-54G00-000 COVER, STRUT DUST 2 Rp227.000
9-1 DISCONTINUE
SUB: 42251-54G20-000		 STOPPER, REAR BUMP 2 - TYPE 1
9-2 42251-54G10-000 STOPPER, REAR BUMP 2 Rp206.500 TYPE 2
10-1 41311-55G10-000 SPRING, REAR COIL 2 Rp1.160.500 TYPE 1:4DR
10-2 DISCONTINUE
SUB: 41311-59JB0-000		 SPRING, REAR COIL 1 - TYPE 2:4DR
10-3 41311-54G10-000 SPRING, REAR COIL 2 Rp1.281.000 TYPE 1:5DR
10-4 41311-59J20-000 SPRING, REAR COIL 1 Rp1.198.000 TYPE 2:5DR
11 41350-60G00-000 SEAT, REAR SPRING UPPER 2 Rp440.500
12 41212-60G01-000 SEAT, COIL SPRING LOWER 2 Rp161.000
13 46200-54G10-000 ROD ASSY, REAR TRAILING RH 1 Rp994.500
14 46200-54G20-000 ROD ASSY, REAR TRAILING LH 1 Rp1.082.500
15 09103-12068-000
SUB: 09103-12064-000		 BOLT (12X80) 2 Rp58.500
16 09103-12065-000 BOLT (12X62) 2 Rp42.000
17 09103M12051-000 B0LT (12X50) 4 Rp10.500
18 08316-1012A-000
SUB: 08316-10123-000		 NUT 4 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
