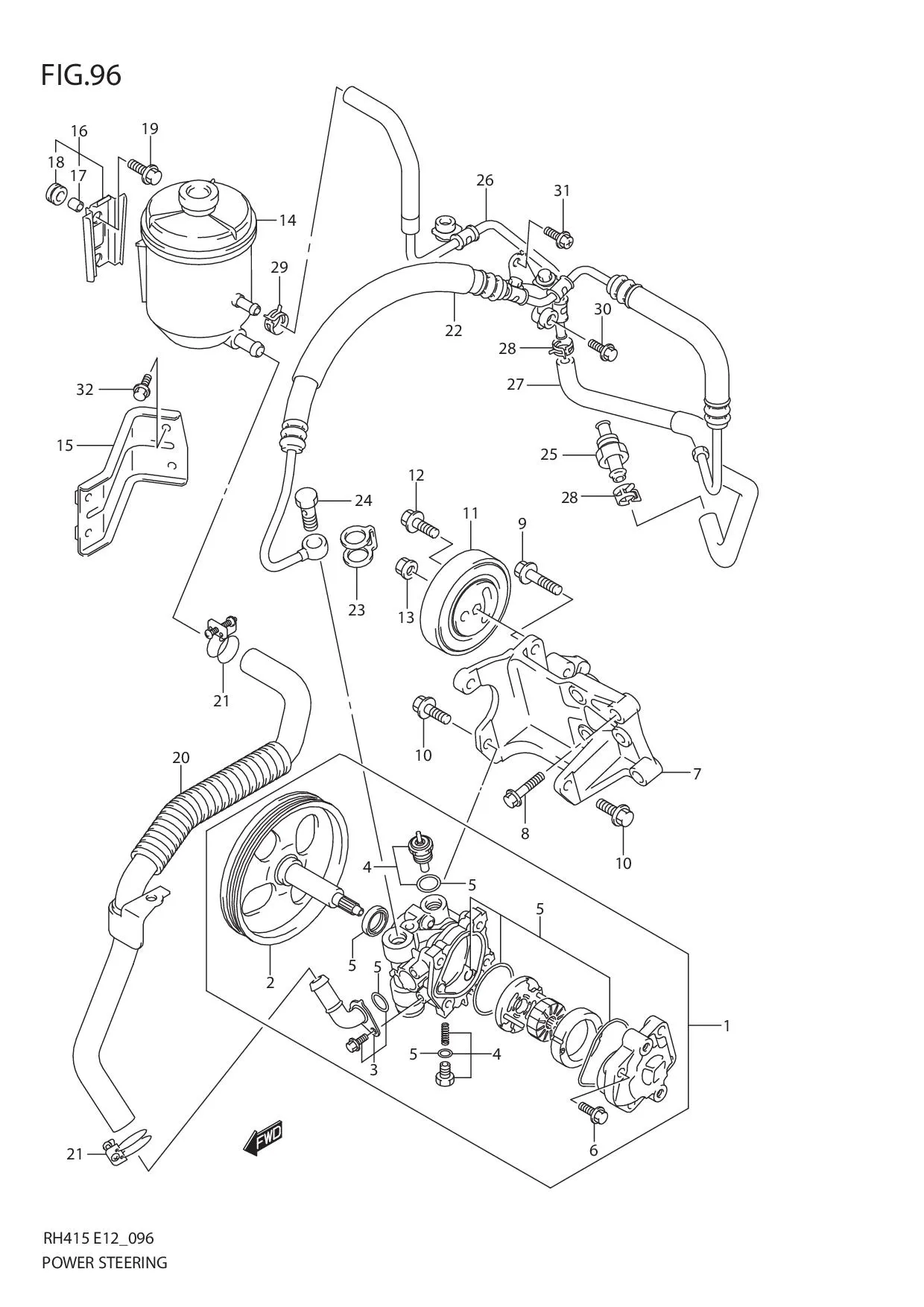

FIG.96 POWER STEERING

FIG.96 POWER STEERING
No No. Part Description Qty Price Per Pcs Remarks
1 49110-54G00-000 PUMP ASSY, POWER STEERING 1 Rp6.671.000
2 49111-56B30-000 •PULLEY SET 1 Rp1.728.500
3 49112-54G00-000 •CONNECTOR SET 1 Rp433.000
4 49113-65D00-000 •TERMINAL SET 1 Rp476.000
5 49114-64G10-000 •SEAL SET 1 Rp497.000
6 DISCONTINUE
SUB: 49115-56B30-000		 •BOLT SET 1 -
7 DISCONTINUE
SUB: 49120-69G00-000		 BRACKET, PUMP 1 -
8 01550-0835B-000
SUB: 01550B08353N000		 BOLT 4 Rp4.500
9 01550-0850B-000
SUB: 01550-08503-000		 BOLT 2 Rp24.500
10 01550-0825A-000
SUB: 01550-08253-000		 BOLT 3 Rp3.500
11 49160-81A00-000 PULLEY, BELT TENSION 1 Rp1.939.500
12 09103-08071-000 BOLT (8X36) 1 Rp33.000
13 09159-08127-000
SUB: 09159M08069-000		 NUT 1 Rp11.000
14 49140-54G00-000 TANK ASSY, POWER STEERING 1 Rp773.000
15 49152-54G00-000 BRACKET TANK 1 Rp158.000
16 49150-60G00-000 BRACKET, TANK 1 Rp121.500
17 DISCONTINUE
SUB: 09180-06038L000		 •SPACER (6.1X9X7.5) 2 -
18 09320-08501-000 •CUSHION 2 Rp21.500
19 09136-06133-000 BOLT (6X16) 2 Rp17.500
20 49222-54G70-000 HOSE, SUCTION 1 Rp407.500
21 09400-24301-000 CLAMP 2 Rp19.000
22 49210-54G50-000 PIPE ASSY, HIGH PRESSURE 1 Rp2.609.500
23 49211-63G03-000
SUB: 49211-63G02-000		 GASKET, PRESSURE PIPE 1 Rp56.500
24 09360-16008-000 BOLT, UNION (16X30) 1 Rp135.500
25 49212-60G42-000 PIPE, RETURN GEAR SIDE 1 Rp188.000
26 49220-54G50-000 PIPE, LOW PRESSURE RETURN 1 Rp654.500
27 49223-54G10-000 HOSE, RETURN GEAR SIDE 1 Rp1.300.000
28 49225-65G00-000 CLAMP, RETURN HOSE 2 Rp66.000
29 09401-16405-000 CLAMP 1 Rp25.500
30 09116-06146-000 BOLT (6X25) 2 Rp18.000
31 02162-0612B-000
SUB: 02162-06123-000		 BOLT 1 Rp16.000
32 DISCONTINUE
SUB: 01550B06123N000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
