AERIO, BALENO NEXT G

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.79 FRONT SUSPENSIONFIG.80 FRONT STABILIZER (TYPE 1)FIG.81 FRONT STABILIZER (TYPE 2)FIG.82 DRIVER SHAFT (MT)FIG.83 DRIVER SHAFT (AT)FIG.84 FRONT WHEEL HUBFIG.85 FRONT SUSPENSION FRAMEFIG.86 REAR SUSPENSIONFIG.87 REAR AXLEFIG.88 REAR STABILIZER (TYPE 1)FIG.89 REAR STABILIZER (TYPE 2)FIG.90 REAR SUSPENSION FRAMEFIG.91 ROAD WHEEL/TIREFIG.92 STEERING WHEEL (TYPE 1)FIG.93 STEERING WHEEL (TYPE 2)FIG.94 STEERING COLUMNFIG.95 STEERING UNITFIG.96 POWER STEERINGFIG.97 PEDAL/PEDAL BRACKET (MT)FIG.98 PEDAL/PEDAL BRACKET (AT)FIG.99 BRAKE MASTER CYLINDERFIG.100 BRAKE PIPING (TYPE 1)FIG.101 BRAKE PIPING (TYPE 2)FIG.102 ANTILOCK BRAKE SYSTEM (TYPE 1)FIG.103 ANTILOCK BRAKE SYSTEM (TYPE 2)FIG.104 FRONT WHEEL BRAKEFIG.105 REAR WHEEL BRAKEFIG.106 PARKING BRAKE

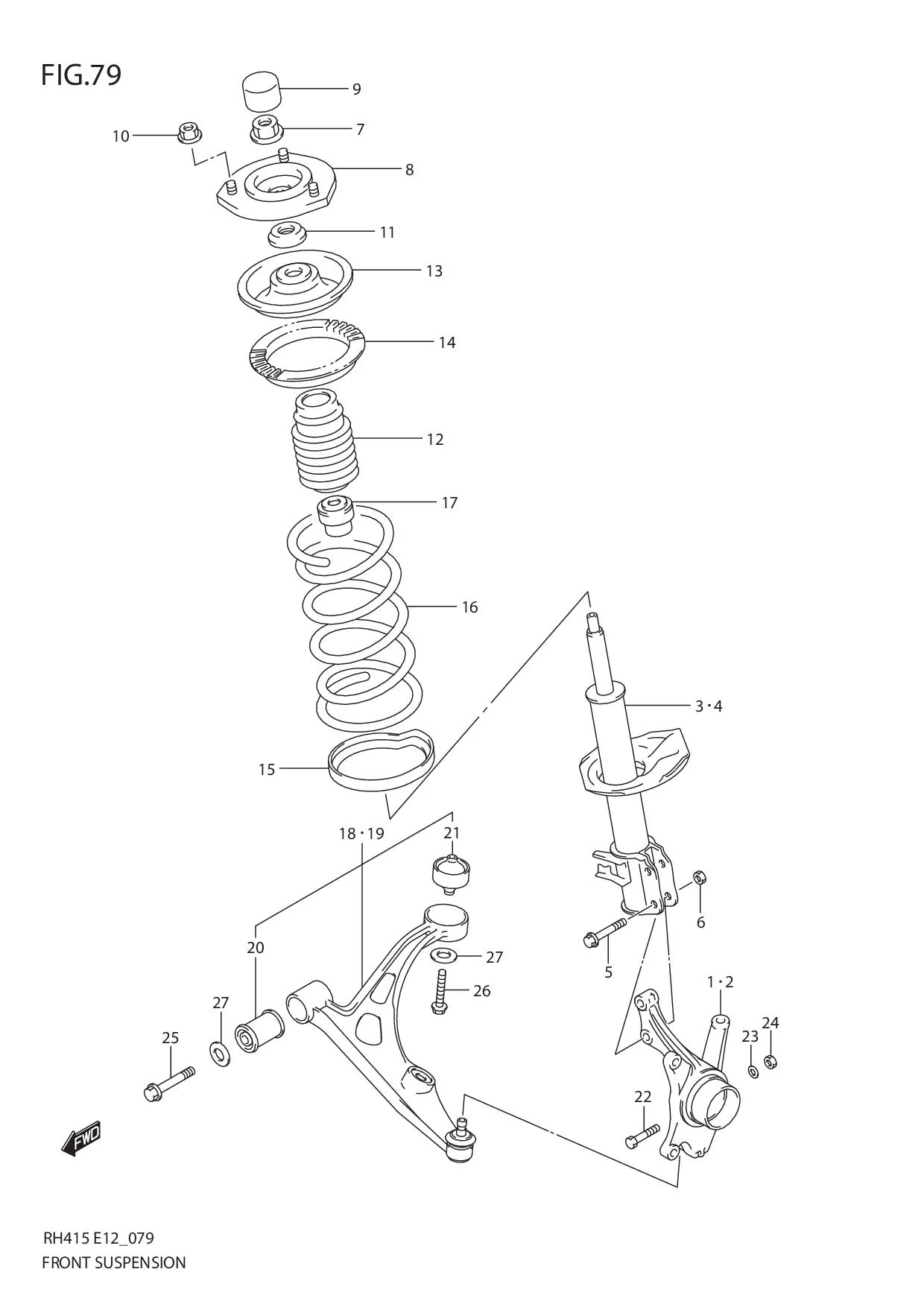

FIG.79 FRONT SUSPENSION

FIG.79 FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45110-54810-000 KNUCKLE, STEERING RH 1 Rp2.832.500
2 45150-54810-000 KNUCKLE, STEERING LH 1 Rp2.832.500
3-2 41601-59JB0-000 STRUT ASSY, FR SUSPENSION RH 1 Rp3.977.500 TYPE 2:4DR
3-3 41601-54G51-000 STRUT ASSY, FR SUSPENSION RH 1 Rp4.071.500 TYPE 1:5DR
3-4 41601-59J20-000 STRUT ASSY, FR SUSPENSION RH 1 Rp4.555.500 TYPE 2:5DR
3-1 41601-55G50-000 STRUT ASSY, FR SUSPENSION RH 1 Rp2.779.000 TYPE 1:4DR
4-1 DISCONTINUE
SUB: 41602-55G50-000		 STRUT ASSY, FR SUSPENSION LH 1 - TYPE 1:4DR
4-2 41602-59JB0-000 STRUT ASSY, FR SUSPENSION LH 1 Rp3.977.500 TYPE 2:4DR
4-3 41602-54G51-000 STRUT ASSY, FR SUSPENSION LH 1 Rp4.071.500 TYPE 1:5DR
4-4 41602-59J20-000 STRUT ASSY, FR SUSPENSION LH 1 Rp4.555.500 TYPE 2:5DR
5 09103M12051-000 BOLT (12X50) 4 Rp10.500
6 08316-1012A-000
SUB: 08316-10123-000		 NUT 4 Rp6.500
7 09159-12060-000 NUT 2 Rp45.500
8 41710-54G10-000 SUPPORT, FRONT STRUT 2 Rp1.211.000
9 41724-54G01-000 CAP, STRUT ROD 2 Rp101.500
10 DISCONTINUE
SUB: 09159-08104-000		 NUT 6 -
11 41742-60G00-000 BEARING, FRONT STRUT 2 Rp159.000
12 41931-54G00-000 COVER, STRUT DUST 2 Rp227.000
13 41230-54G00-000 SEAT, COIL SPRING UPPER 2 Rp319.000
14 41211-60G00-000 SEAT, COIL SPRING 2 Rp158.000
15 41212-60G01-000 SEAT, COIL SPRING LOWER 2 Rp161.000
16-1 41111-54G70-000 SPRING, FRONT COIL 2 Rp1.281.500 TYPE 1
16-2 41111-59J20-000 SPRING, FRONT COIL 1 Rp1.242.500 TYPE 2
17 42251-54G10-000 STOPPER, FRONT BUMP 2 Rp206.500
18-1 45201-54G01-000 ARM ASSY, FR SUSPENSION RH 1 Rp3.465.500 TYPE 1
18-2 45201-59J00-000 ARM ASSY, FR SUSPENSION RH 1 Rp3.486.000 TYPE 2
19-2 45202-59J00-000 ARM ASSY, FR SUSPENSION LH 1 Rp3.486.000 TYPE 2
19-1 45202-54G01-000 ARM ASSY, FR SUSPENSION LH 1 Rp3.465.500 TYPE 1
20 45500-50810-000 •BUSHING, FRONT 2 Rp406.000
21 45540-54G00-000 •BUSHING, REAR 2 Rp376.000
22 09100-10222-000 BOLT (10X50) 2 Rp27.500
23 09160-10142-000
SUB: 09160-10085-000		 WASHER (10X20X2.3) 2 Rp17.000
24 09159-10048-000 NUT 2 Rp19.500
25 09135-12005-000 BOLT (12X98) 2 Rp61.000
26 45511-54G00-000 BOLT, SUSPENSION ARM REAR 2 Rp56.500
27 DISCONTINUE
SUB: 09162-12005-000		 LOCK WASHER 4 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
