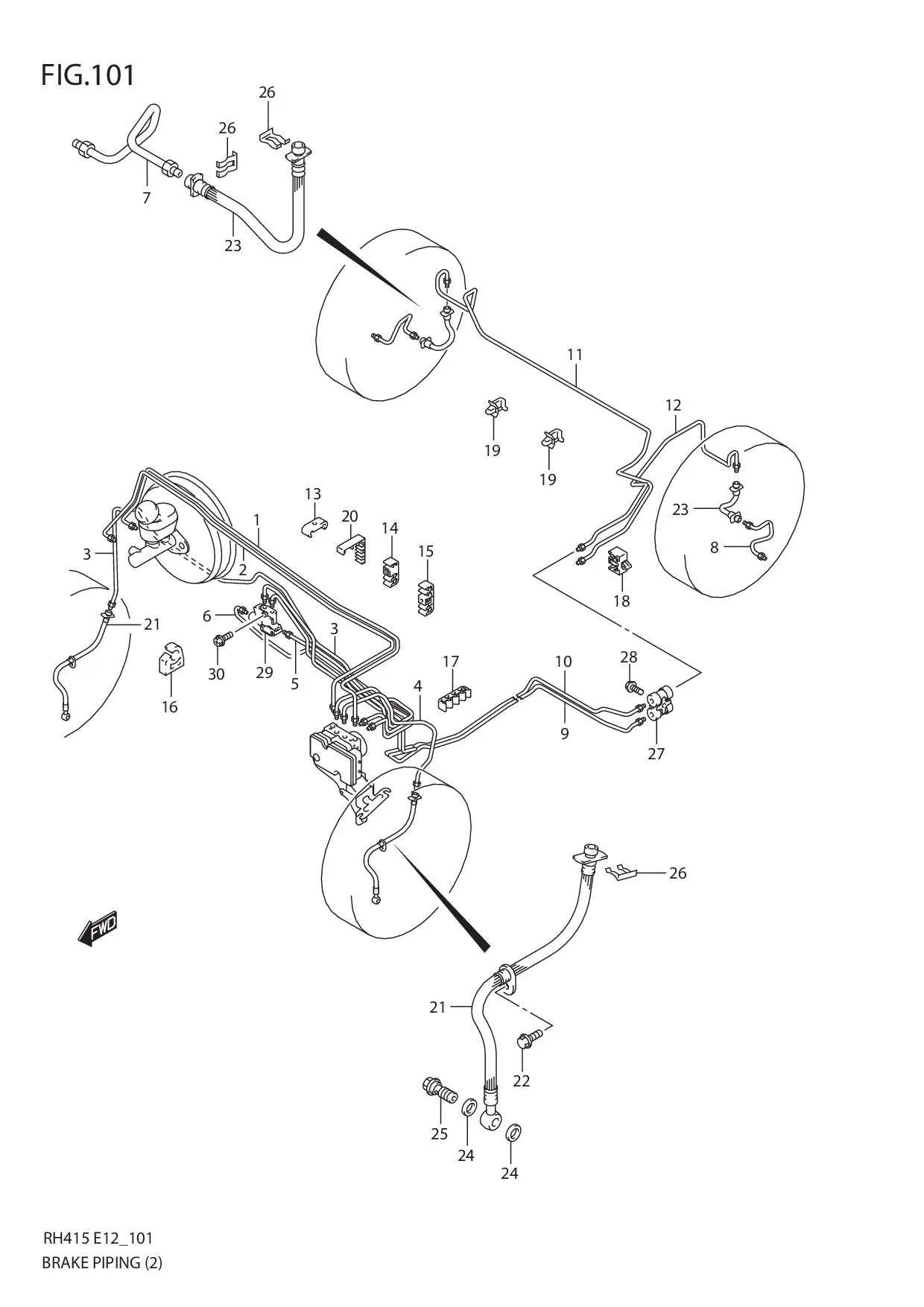

FIG.101 BRAKE PIPING (TYPE 2)

FIG.101 BRAKE PIPING (TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51410-59JA0-000		 PIPE, MASTER PRIMARY TO UNIT 1 -
2 DISCONTINUE
SUB: 51420-59JA0-000		 PIPE, MASTER SECONDARY TO UNIT 1 -
3 51440-59JA0-000 PIPE, UNIT TO FR BK HOSE RH 1 Rp242.000
4 51430-59JA0-000 PIPE, UNIT TO FR BK HOSE LH 1 Rp122.500
5 DISCONTINUE
SUB: 51450-59JA0-000		 PIPE, UNIT TO VALVE RH 1 -
6 DISCONTINUE
SUB: 51460-59JA0-000		 PIPE, UNIT TO VALVE LH 1 -
7 DISCONTINUE
SUB: 51470-54G00-000		 PIPE, RR BK HOSE TO WHL CYL RH 1 -
8 DISCONTINUE
SUB: 51490-54G00-000		 PIPE, RR BK HOSE TO WHL CYL LH 1 -
9 DISCONTINUE
SUB: 51510-54G01-000		 PIPE, VALVE TO JOINT RH 1 -
10 DISCONTINUE
SUB: 51520-54G01-000		 PIPE, VALVE TO JOINT LH 1 -
11 DISCONTINUE
SUB: 51530-60G00L000		 PIPE, JOINT TO RR BK HOSE RH 1 -
12 DISCONTINUE
SUB: 51540-60G00L000		 PIPE, JOINT TO RR BK HOSE LH 1 -
13 51751-60B00-000 CLAMP, BRAKE PIPE DASH 2 Rp29.000
14-1 51751-77E00-000 CLAMP, BRAKE PIPE DASH 1 Rp34.500 MT
14-2 51751-77E00-000 CLAMP, BRAKE PIPE DASH 2 Rp34.500 AT
15 51751-82CB0-000 CLAMP, BRAKE PIPE DASH 1 Rp33.500 MT
16 51752-77M00-000
SUB: 51752-70B00-000		 CLAMP, BRAKE PIPE DASH 3 Rp5.500
17 51753M74G60-000
SUB: 51753-74G50-000		 CLAMP, BRAKE PIPE UNIT 1 Rp34.500
18 DISCONTINUE
SUB: 51761-60B00-000		 CLAMP, BK PIPE RR SIDE 1 -
19 DISCONTINUE
SUB: 51771-60B00-000		 CLAMP, BK PIPE RR XMBR 2 -
20 DISCONTINUE
SUB: 51791-50G50-000		 CLAMP, BK PIPE ABS 1 -
21 DISCONTINUE
SUB: 51580-59J00-000		 HOSE, FRONT BRAKE FLEXIBLE 2 -
22 01551-0820A-000
SUB: 01551-08203-000		 BOLT 2 Rp17.500
23 51570-50A50-000 HOSE, REAR BRAKE FLEXIBLE 2 Rp297.500
24 09161-10009-000 WASHER (10X15X1.5) 4 Rp12.500
25 09360-10026-000 BOLT, UNION 2 Rp25.000
26 09383M13004-000
SUB: 09383-13003-000		 E RING 6 Rp7.000
27 DISCONTINUE
SUB: 51630B82040N000		 JOINT, BRAKE 4 WAY 1 -
28 02162-0625A-000
SUB: 02162-06253-000		 BOLT 1 Rp3.500
29 DISCONTINUE
SUB: 51630-54G00-000		 JOINT, ABS 4 WAY 1 -
30 01550-0640A-000
SUB: 01550-06403-000		 BOLT 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
