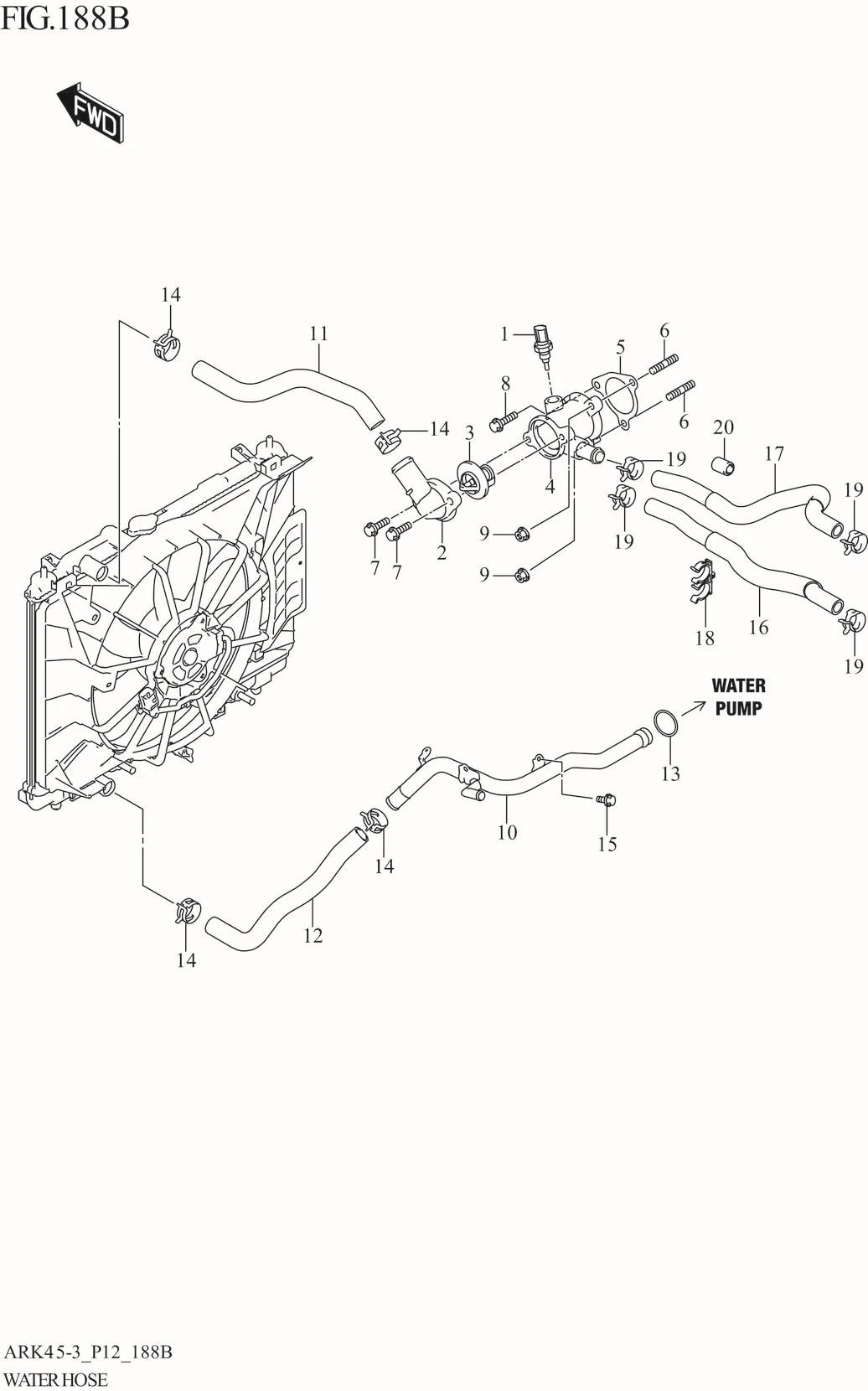

FIG. 188B WATER HOSE (4AT)

FIG. 188B WATER HOSE (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR,WTR TEMP 1 Rp368.000
2 17561-68P00-000 CAP,WTR THERMO 1 Rp73.000
3 17670-50G11-000
SUB: 17670-50G10-000		 THERMOSTAT,WATER (88?C) 1 Rp215.500
4 17690M68P00-000 CASE,THERMO 1 Rp153.500
5 17699-67LA0-000
SUB: 17699B67LA0N000		 GASKET,THERMO CASE 1 Rp13.500
6 01421-0825A-000 BOLT,STUD (8X25) 2 Rp13.000
7 01550-0825A-000 BOLT (8X25) 2 Rp3.500
8 01550-0830A-000
SUB: 01550B0830AN000		 BOLT (8X30) 1 Rp4.000
9 08316-1008A-000 NUT 2 Rp3.500
10 17830-73R00-000 PIPE,WTR INLET 1 Rp171.000
11 17852-73R00-000 HOSE,RDTR INLET 1 Rp48.500
12 17854-73R00-000 HOSE,RDTR OUTLET 1 Rp43.500
13 09280-28008-000
SUB: 09280B28008N000		 O-RING (D:3.5,ID:27.7) 1 Rp2.500
14 09401-30002-000 CLIP, RDTR HOSE 4 Rp42.000
15 DISCONTINUE
SUB: 01550B0612AN000		 BOLT (6X12) 1 -
16 17871-73R00-000 HOSE,HTR INLET 1 Rp39.000
17 17872-73R00-000 HOSE,HTR OUTLET 1 Rp39.000
18 17875-73R00-000 CLAMP,HEATER HOSE 1 Rp7.500
19 09401-21415-000 CLIP 4 Rp27.000
20 17879M54LA0-000 SPACER,HTR HOSE 1 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
