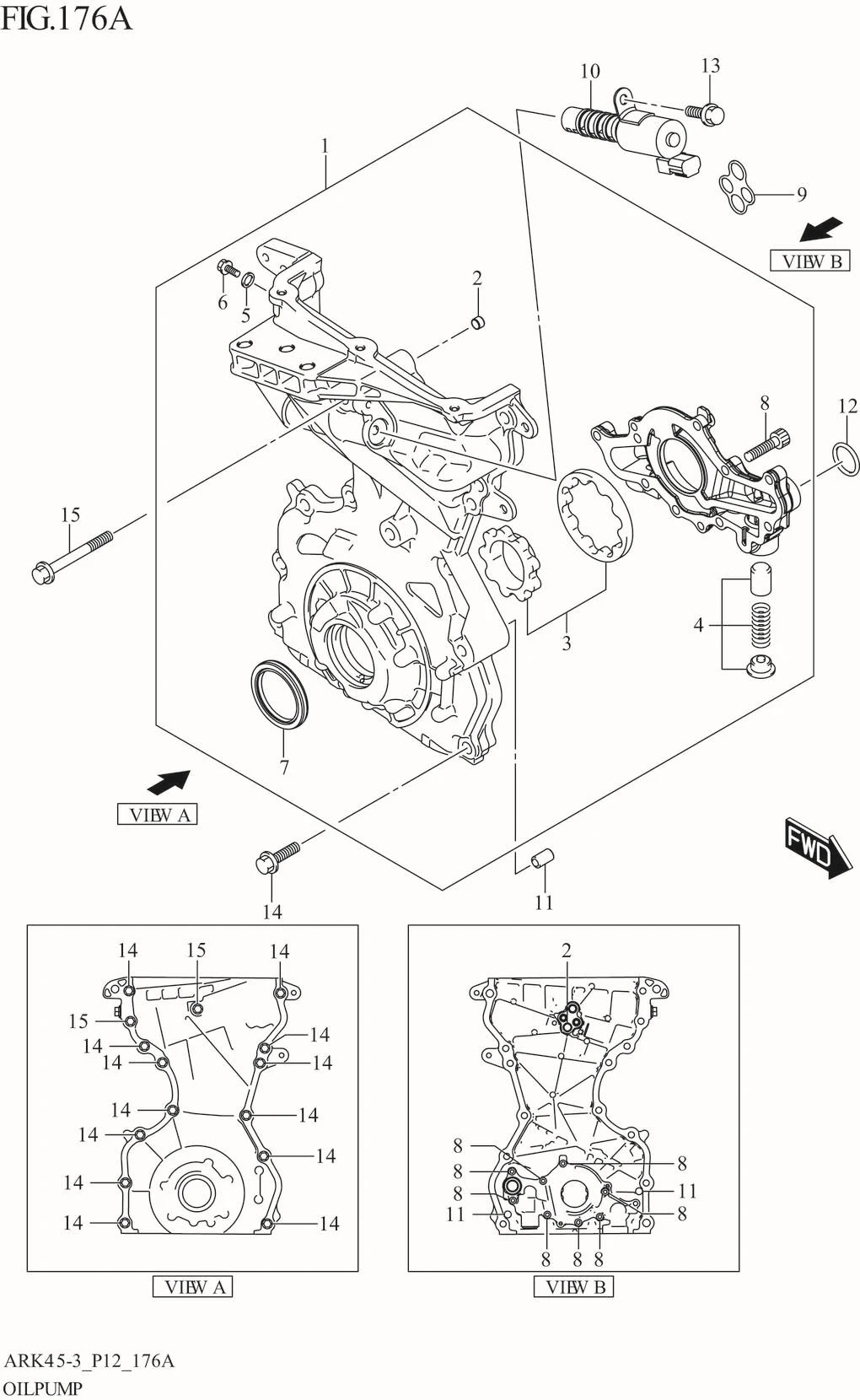

FIG. 176A OIL PUMP

FIG. 176A OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100-73R00-000 PUMP ASSY,OIL 1 Rp1.728.000
2 16116-69GE0-000 .FILTER,OIL GALLERY 1 Rp66.000
3 16130-77MB0-000 .ROTOR SET, OIL PUMP 1 Rp166.500
4 16151-51K00-000
SUB: 16151B51K00N000		 .VALVE SET,OIL PUMP RELIEF 1 Rp22.000
5 09168-08016-000
SUB: 09168B08016N000		 .GASKET (8.2X14X1) 1 Rp25.000
6 01550-0816A-000
SUB: 01550B0816AN000		 .BOLT (8X16) 1 Rp6.000
7 16141-73R00-000 .SEAL,CRANKSHAFT FRONT OIL 1 Rp52.500
8 07130-0625A-000 .BOLT (6X25) 8 Rp3.500
9 16118-77M00-000 O RING, OCV 1 Rp9.500
10 16550-58MA0-000
SUB: 16550B58MA0N000		 VALVE,OIL CONTROL 1 Rp695.500
11 09206-06005-000 PIN (4X6X11) 2 Rp14.500
12 16119-67LA0-000
SUB: 16119B67LA0N000		 O-RING 1 Rp5.500
13 DISCONTINUE
SUB: 01550B0612AN000		 BOLT (6X12) 1 -
14 01550-0830A-000
SUB: 01550B0830AN000		 BOLT (8X30) 13 Rp4.000
15 01550-0885A-000 BOLT (8X85) 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
