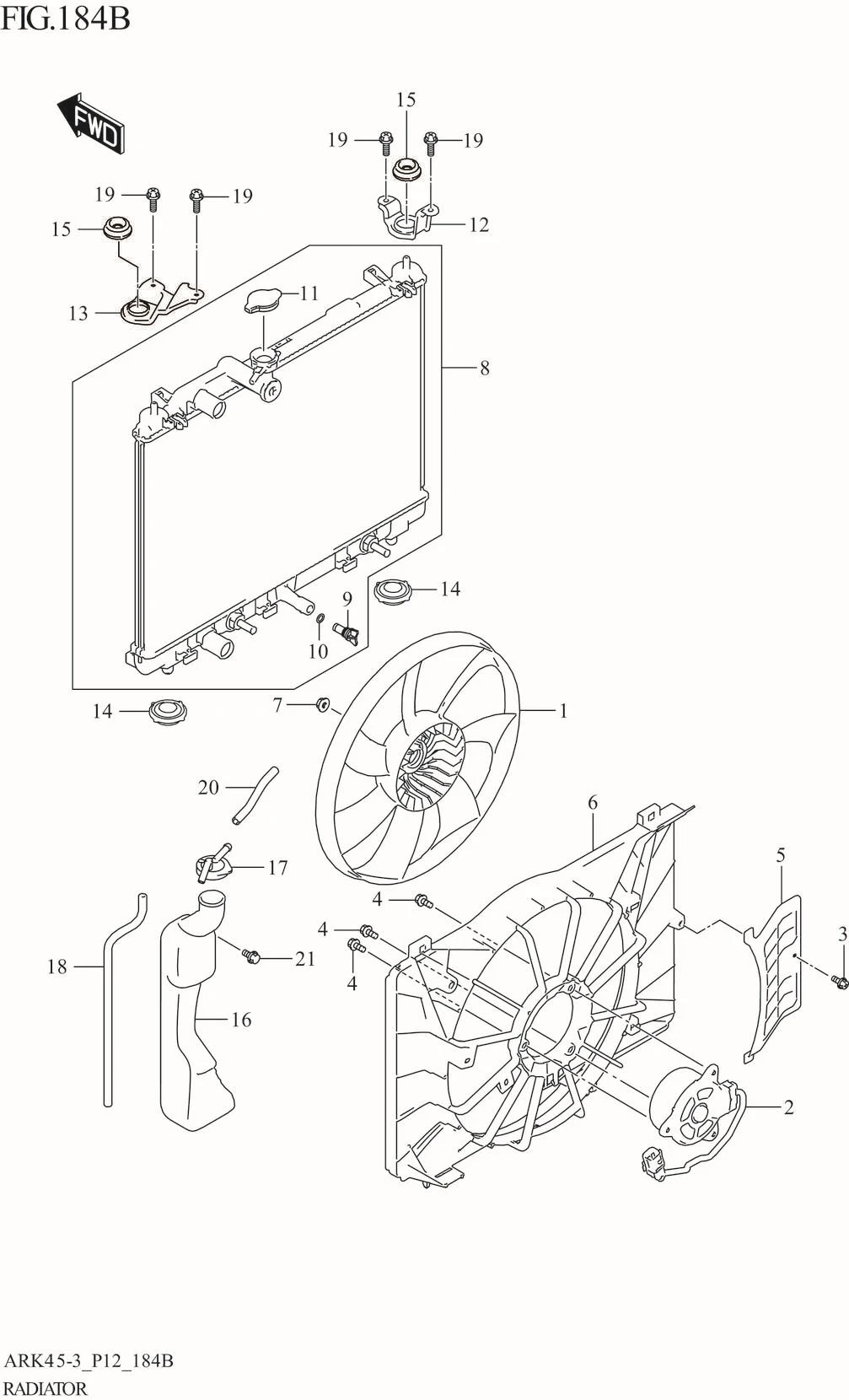

FIG. 184B RADIATOR (4AT)

FIG. 184B RADIATOR (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 17111-73R00-000 FAN ASSY 1 Rp376.000
2 17120-73R00-000 MOTOR ASSY,COOLING FAN 1 Rp816.500
3 17129-50F10-000 SCREW (M4) 1 Rp21.500
4 17129-56F00-000 SCREW,FAN MOTOR (5X11) 3 Rp24.000
5 17191-73R00-000 BRACKET 1 Rp112.000
6 17760-73R00-000 SHOROUD ASSY,FAN 1 Rp155.000
7 08316-2005A-000 NUT 1 Rp13.000
8 17700-73R10-000 RADIATOR ASSY 1 Rp1.787.500
9 17751-61A00-000
SUB: 17751B61A00N000		 .PLUG,DRAIN 1 Rp13.000
10 17759-82K00-000
SUB: 17759B82K00N000		 .O-RING 1 Rp7.500
11 17920-52S00-000 .CAP,RADIATOR (1.1) 1 Rp46.000
12 17861-52R00-000 BRACKET,RDTR SUPPORT UPPER R 1 Rp31.000
13 17861-72R00-000 BRACKET,RDTR SUPPORT UPPER L 1 Rp33.500
14 17878-77MA0-000
SUB: 17878B77MA0N000		 MOUNT, RADIATOR SUPPORT LOWER 2 Rp12.500
15 17879-73R00-000 MOUNT,RADIATOR SUPPORT UPPER 2 Rp8.000
16 17931-73R00-000 TANK ASSY 1 Rp128.000
17 17932-76G00-000
SUB: 17932B76G00N000		 CAP,WATER RESERVE TANK 1 Rp5.500
18 17934-73R00-000 HOSE,RSV TANK 1 Rp22.000
19 09122-76003-000 SCREW (6X16) 4 Rp15.000
20 09352-70L04-120 HOSE,RDTR TO RSV TANK 1 Rp6.500
21 DISCONTINUE
SUB: 01550B0612AN000		 BOLT (6X12) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
