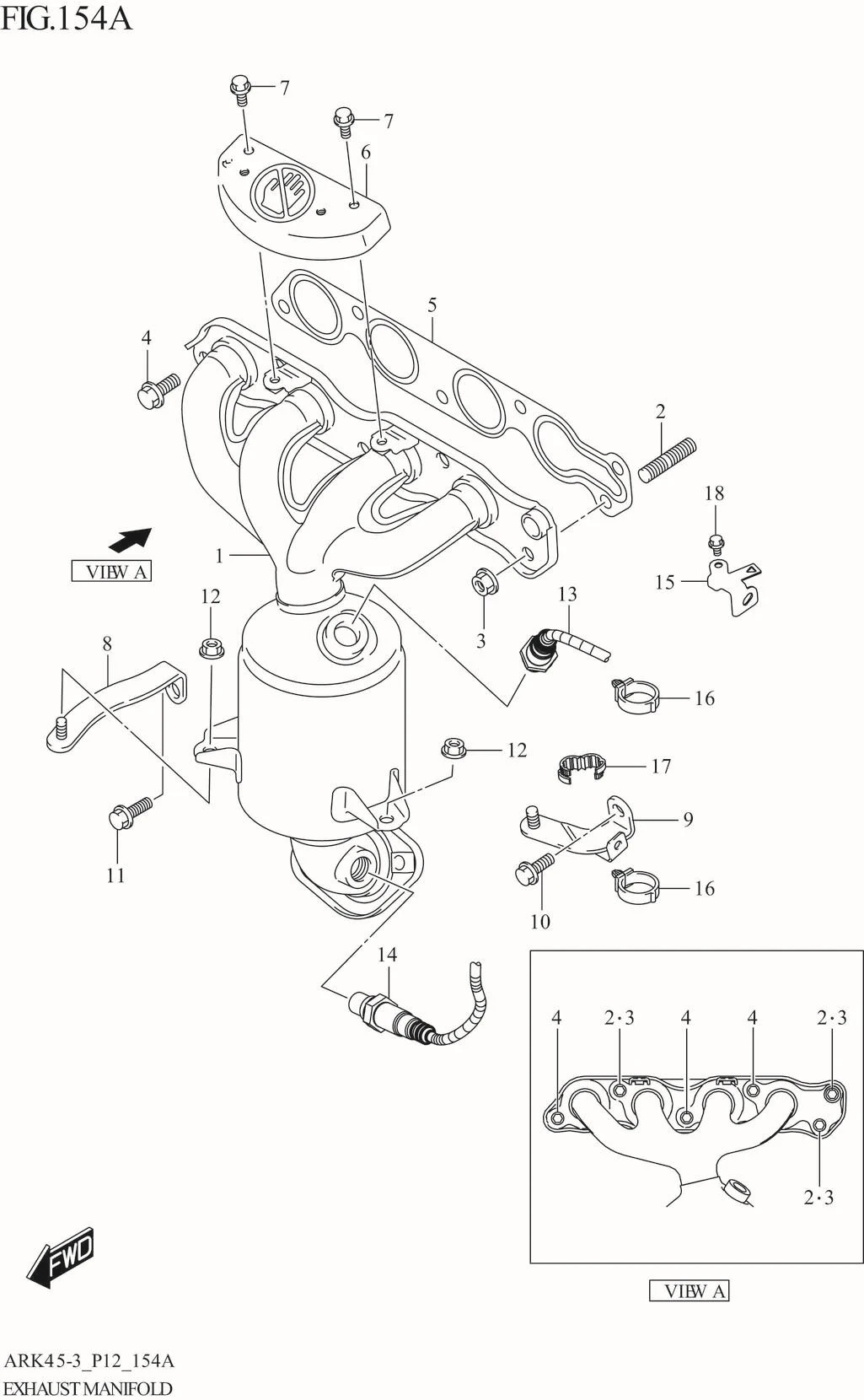

FIG. 154A EXHAUST MANIFOLD

FIG. 154A EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110-73R10-000 MANIFOLD ,EXH 1 Rp5.619.500
2 14118-63J00-000 BOLT,STUD,EXH MANF 3 Rp21.500
3 08316-1010A-000 NUT 3 Rp3.500
4 01550-1020A-000 BOLT (10X20) 3 Rp21.000
5 14140-59R00-000 GASKET,EXH MANF 1 Rp43.000
6 14121-73KB0-000
SUB: 14121B73KB0N000		 PLATE,CAUTION 1 Rp20.500
7 01550-0612C-000 BOLT (6X12) 2 Rp19.500
8 14271-73K00-000
SUB: 14271B73K00N000		 STIFFENER,EXH MANF 1 Rp20.500
9 14272-73KA0-000
SUB: 14272B73KA0N000		 STIFFENER,EXH MANF NO.2 1 Rp23.500
10 01550-0820A-000
SUB: 01550B0820AN000		 BOLT (8X20) 1 Rp5.500
11 01550-1020A-000 BOLT (10X20) 1 Rp21.000
12 08316-1008A-000 NUT 2 Rp3.500
13 18213-73R00-000 SENSOR,OXYGEN 1 Rp376.000
14 18213-73R10-000 SENSOR,OXYGEN RR 1 Rp400.500
15 18214M68P00-000 BRACKET,OXYGEN SNSR 1 Rp6.500
16 09403-12404-000 CLAMP 2 Rp13.500
17 09408-00258-000 CLAMP 1 Rp14.500
18 DISCONTINUE
SUB: 01550B0612AN000		 BOLT (6X12) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
