SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERY (5MT)BATTERY (6AT)SPEEDOMETERHEAD LAMP (TYPE-1)HEAD LAMP (TYPE-2)FRONT FOG LAMP (TYPE-1: W/FRONT FOG LAMP)FRONT FOG LAMP (TYPE-2: W/FRONT FOG LAMP)REAR LAMP (TYPE-1)REAR LAMP (TYPE-2)ROOM LAMPWIRING HARNESSELECTRICAL CONTROLLOCK SETFRONT WINDOW WIPERWINDOW WASHERREAR WINDOW WIPERAUDIO

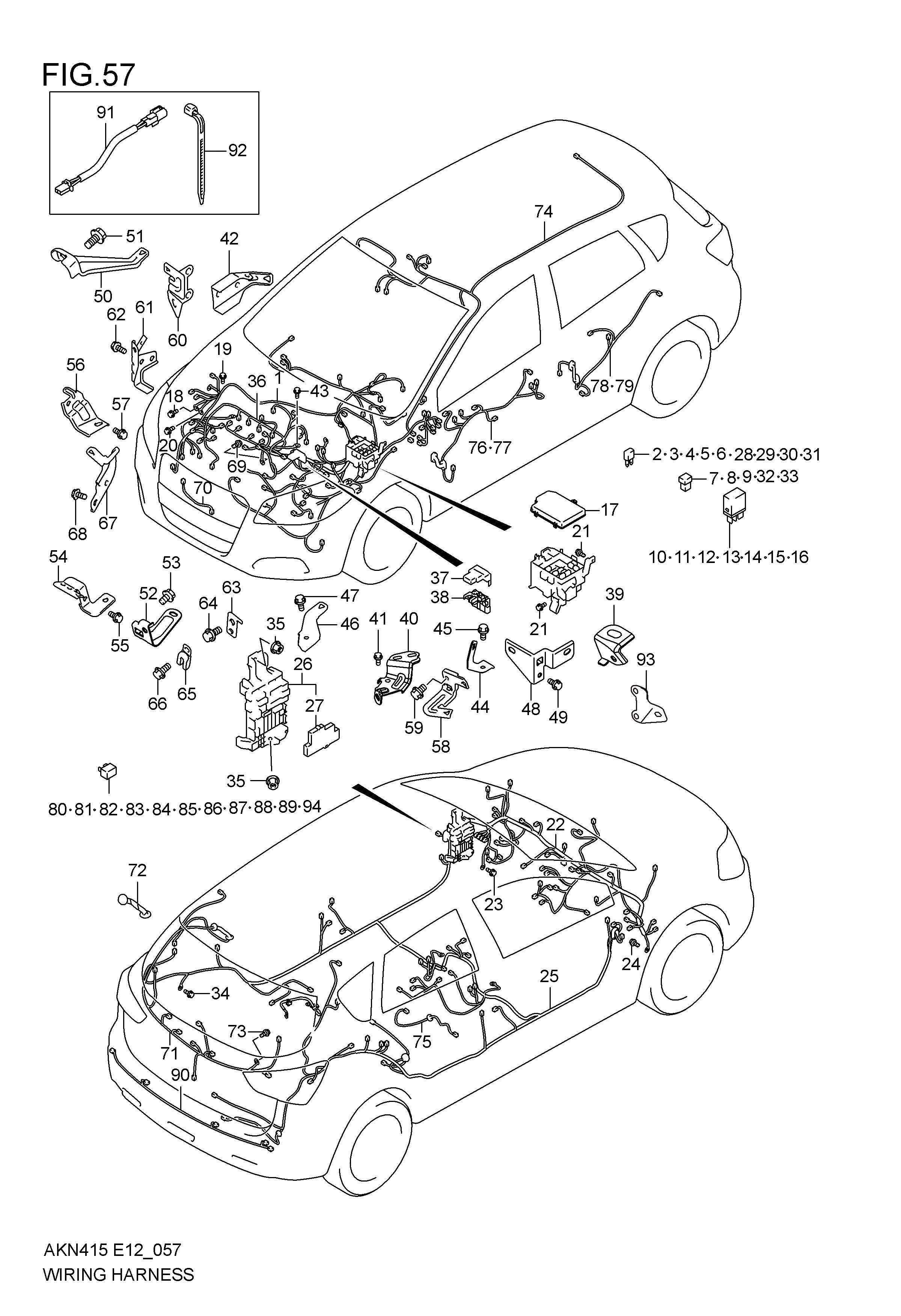

WIRING HARNESS

WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1-4 36610M84RB0-000 HARNESS ASSY,MAIN 1 Rp9.290.000 6AT:TYPE-2
1-3 36610M65M90-000 HARNESS ASSY,MAIN 1 Rp9.393.000 6AT:TYPE-1
1-2 36610M84RA0-000 HARNESS ASSY, MAIN 1 Rp9.300.000 5MT:TYPE-2
1-1 36610M65M80-000 HARNESS ASSY, MAIN 1 Rp9.393.000 5MT:TYPE-1
2 09481-07504-000 .FUSE (7.5A) 2 Rp13.000
3 09481-10504-000 .FUSE (10A) 1 Rp12.500
4 09481-15504-000 .FUSE (15A) 5 Rp13.000
5 09481-20504-000 .FUSE (20A) 2 Rp14.500
6 09481-25504-000 .FUSE (25A) 2 Rp17.500
7 09481-30504-000 .FUSE (30A) 1 Rp15.000
8 09481-30403-000 .FUSE (30A) 1 Rp41.000
9 09481-40403-000 .FUSE (40A) 1 Rp51.500
10 38860M76M00-000 .RELAY ASSY, ST 1 Rp58.500
11 38860M76M00-000 .RELAY ASSY, RDTR 2 Rp58.500
12 38860-78F00-000 .RELAY ASSY, WIPER 2 Rp274.000
13 38860M76M00-000 .RELAY ASSY, HEAD LAMP 3 Rp58.500
14 38860M76M00-000 RELAY, A/C 1 Rp58.500
15 38860M76M00-000 RELAY ASSY, FUEL PUMP 1 Rp58.500
16 38860M76M00-000 RELAY ASSY, MAIN 1 Rp58.500
17-2 36717M84R00-000 COVER, RELAY BOX 1 Rp192.000 TYPE-2
17-1 36717M65M11-000 COVER, RELAY BOX 1 Rp237.500 TYPE-1
18 09115-06005-000 BOLT 4 Rp14.000
19 09115-06005-000 BOLT 1 Rp14.000
20 01550-0612B-000 BOLT 1 Rp16.500
21 02162-0616A-000 BOLT 3 Rp3.000
22-4 36620M84RF0-000 HARNESS ASSY, I/P 1 Rp2.230.000 6AT:TYPE-2
22-3 36620M84RE0-000 HARNESS ASSY, I/P 1 Rp2.240.000 5MT:TYPE-2
22-2 36620M65M90-000 HARNESS ASSY, I/P 1 Rp4.012.500 6AT:TYPE-1
22-1 36620M65M80-000 HARNESS ASSY, I/P 1 Rp4.012.500 5MT:TYPE-1
23 09115-06005-000 BOLT 2 Rp14.000
24 02162-0612A-000 BOLT 1 Rp11.000
25-2 36630M84RC0-000 HARNESS ASSY, FLOOR 1 Rp7.019.500 TYPE-2
25-1 36630M65M70-000 HARNESS ASSY, FLOOR 1 Rp5.489.000 TYPE-1
26 36710M65M30-000 .BOX ASSY, JUNCTION 1 Rp4.434.000
27 36717M65MP0-000 ..COVER, FUSE 1 Rp200.000
28 09481-07504-000 ..FUSE (7.5A) 6 Rp13.000
29 09481-10504-000 ..FUSE (10A) 12 Rp12.500
30 09481-15504-000 ..FUSE (15A) 9 Rp13.000
31 09481-20504-000 ..FUSE (20A) 5 Rp14.500
32 09481-30504-000 ..FUSE (30A) 1 Rp15.000
33 09481-30403-000 ..FUSE (30A) 1 Rp41.000
34 09115-06005-000 BOLT, NO.3 GND 4 Rp14.000
35 09159-08127-000
SUB: 09159M08153-000		 NUT 2 Rp11.000
36-2 36650M65M40-000 HARNESS ASSY, ENG 1 Rp5.924.500 6AT
36-1 36650M65M30-000 HARNESS ASSY, ENG 1 Rp5.934.500 5MT
37 36694M65M00-000
SUB: 36694M66M00-000		 .COVER, BTRY TERMINAL 1 Rp82.000
38 36739M61M00-000 .FUSE, BATTERY 1 Rp881.000
39 36652-70L10-000 BRACKET, ENG HARN 1 Rp65.000
40 36651M61MA0-000 BRACKET, ENG HARN MT 1 Rp13.000 5MT
41 01550-0612B-000 BOLT 1 Rp16.500 5MT
42 36654-51K20-000 BRACKET, ENG HARN MT 1 Rp74.000 5MT
43 01550-0812A-000 BOLT 1 Rp3.500 5MT
44 36651M78M10-000 BRACKET, ENG HARN 1 Rp8.000 6AT
45 01550-0612B-000 BOLT 1 Rp16.500 6AT
46 36651M60R10-000 BRACKET, ENG HARN AT 1 Rp9.000 6AT
47 01550-0612C-000 BOLT 1 Rp19.500 6AT
48 36651M61MB0-000 BRACKET, ENG HARN BACK 1 Rp12.500 5MT
49 01550-0612B-000 BOLT 1 Rp16.500 5MT
50 36651-54L80-000 BRACKET, ENG HARN BLOCK 1 Rp140.000
51 01550-1020A-000 BOLT 1 Rp21.000
52 36651M65M30-000 BRACKET, ENG HARN 1 Rp16.000
53 01550-0812A-000 BOLT 1 Rp3.500
54 36651-54L40-000 BRACKET, HEAD COVER 1 Rp123.500
55 01550-0612B-000 BOLT 1 Rp16.500
56 36651-54L50-000 BRACKET, HEAD COVER 1 Rp99.000
57 01550-0612B-000 BOLT 1 Rp16.500
58 36651-72L00-000 BRACKET, ENG HOOK (FRONT) 1 Rp77.500
59 01550-0612B-000 BOLT 1 Rp16.500
60 DISCONTINUE
SUB: 36651B79J30N000		 BRACKET, O2 SNSR CONN 1 -
61 36651-54LD0-000 BRACKET, O2 CONN 1 Rp60.000
62 01550-0612B-000 BOLT 1 Rp16.500
63 DISCONTINUE
SUB: 36995B77E21N000		 BRACKET, ENG HARN OP SW & CPLR 1 -
64 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
65 DISCONTINUE
SUB: 09404-08419-000		 CLAMP 1 -
66 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
67 36653M54PA0-000 BRACKET, ENG HARN BODY 1 Rp13.500 6AT
68 01551-0612C-000 BOLT 2 Rp18.000 5MT
69 01550-0612C-000 BOLT 1 Rp19.500
70 36895M65M00-000 WIRE, OIL P SW 1 Rp397.000
71-2 36680M84R20-000 HARNESS ASSY, BACK DOOR 1 Rp480.000 TYPE-2
71-1 36680M65M40-000 HARNESS ASSY, BACK DOOR 1 Rp791.500 TYPE-1
72 36993M74L00-000 .GROMMET, BACK DOOR 1 Rp56.500
73 09115-06005-000 BOLT 1 Rp14.000
74 36820M65M20-000 WIRE, DOME LAMP 1 Rp605.500
75 36840M55K00-000 WIRE, FUEL PUMP 1 Rp192.500
76 36756M65M20-000 WIRE, P/W MAIN 1 Rp1.127.000
77 36757M65M20-000 WIRE, P/W SUB 1 Rp731.500
78 36751M65MA0-000 WIRE, RR DOOR L SIDE 1 Rp384.000
79 36751M65M00-000 WIRE, RR DOOR R SIDE 1 Rp358.000
80 38860M76M00-000 RELAY ASSY, HTR 1 Rp58.500
81 38860M76M00-000 RELAY ASSY, HORN 1 Rp58.500
82 38860M76M00-000 RELAY ASSY, RR DEF 1 Rp58.500
83 38860M76M00-000 RELAY ASSY, TAIL 1 Rp58.500
84 38860-77M10-000
SUB: 38860B77M10N000		 RELAY ASSY, IGN 2 1 Rp71.000
85 38860M76M00-000 RELAY ASSY, ACC 1 Rp58.500
86 38860M76M00-000 RELAY ASSY, IGN 1 1 Rp58.500
87 38860M76M00-000 RELAY, FR FOG 1 Rp58.500
88 38860M76M00-000 RELAY, REAR WIPER 1 Rp58.500
89 38860M76M00-000 RELAY ASSY, BACK UP LAMP 1 Rp58.500
90 36813M64M00-000 WIRE, RR PARK SNSR 1 Rp1.131.000
91 36691M65M00-000 WIRE, A/B 1 Rp243.000
92 09407-18402-000
SUB: 09407B18402N000		 CLAMP, A/B WIRE 5 Rp8.000
93 36651M65M40-000 BRACKET,O2 SNSR CONN 1 Rp10.500 TYPE-2
94 38860M76M00-000 RELAY ASSY,DRL 1 Rp58.500 TYPE-2

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
