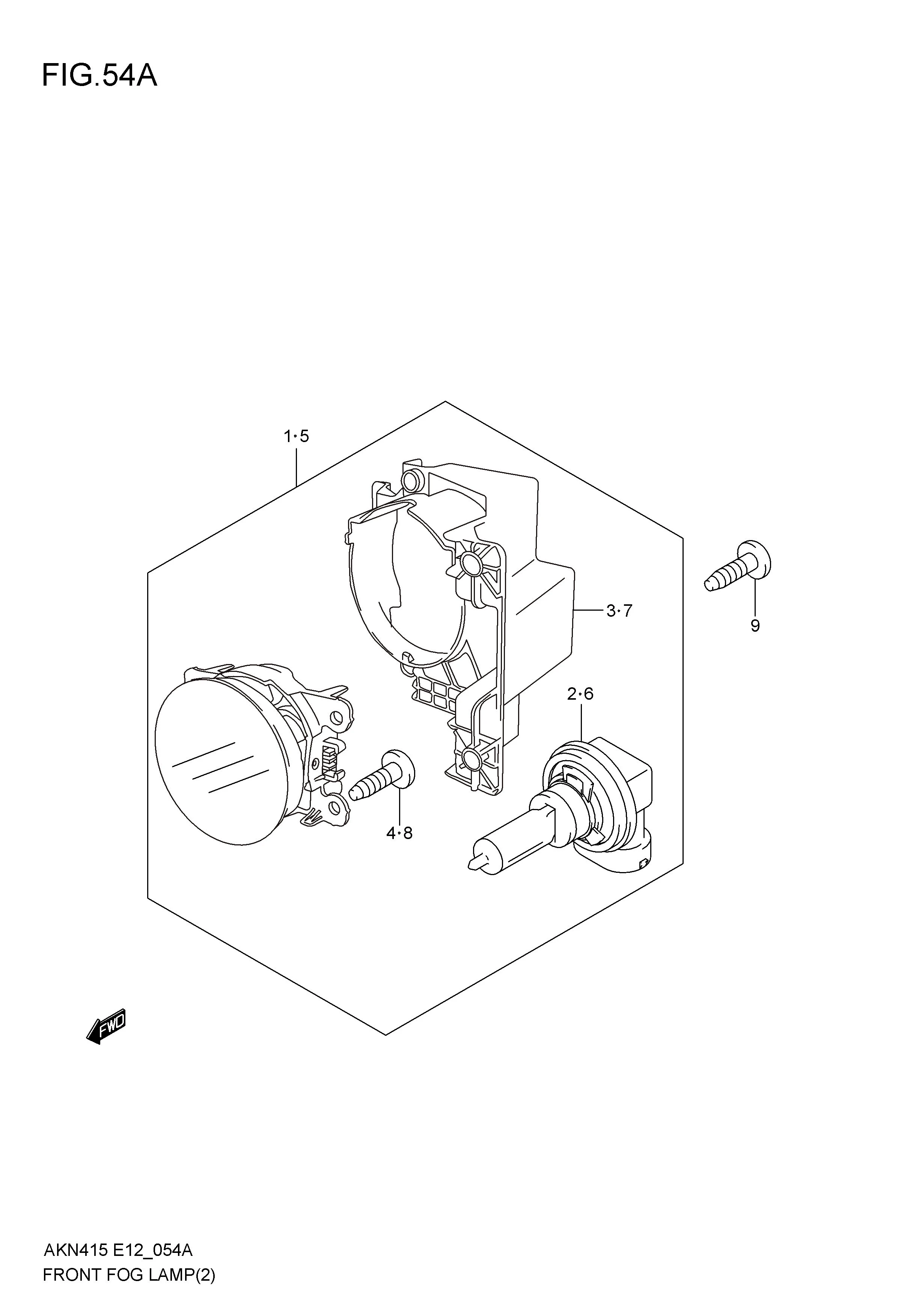

FRONT FOG LAMP (TYPE-2: W/FRONT FOG LAMP)

FRONT FOG LAMP (TYPE-2: W/FRONT FOG LAMP)
No No. Part Description Qty Price Per Pcs Remarks
1 35501M84R00-000 LAMP ASSY,FOG,RH 1 Rp458.000
2 09471M12236-000 .BULB(12V19W) 1 Rp204.000
3 35526M84R00-000 .BRACKET,FOG LAMP,RH 1 Rp42.000
4 03541-0516A-000 .SEREW 3 Rp3.500
5 35502M84R00-000 LAMP ASSY,FOG,LH 1 Rp458.000
6 09471M12236-000 .BULB(12V19W) 1 Rp204.000
7 35566M84R00-000 .BRACKET,FOG LAMP,LH 1 Rp42.000
8 03541-0516A-000 .SCREW 3 Rp3.500
9 03541-0516A-000 SCREW,FOG LAMP 8 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
