SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERY (5MT)BATTERY (6AT)SPEEDOMETERHEAD LAMP (TYPE-1)HEAD LAMP (TYPE-2)FRONT FOG LAMP (TYPE-1: W/FRONT FOG LAMP)FRONT FOG LAMP (TYPE-2: W/FRONT FOG LAMP)REAR LAMP (TYPE-1)REAR LAMP (TYPE-2)ROOM LAMPWIRING HARNESSELECTRICAL CONTROLLOCK SETFRONT WINDOW WIPERWINDOW WASHERREAR WINDOW WIPERAUDIO

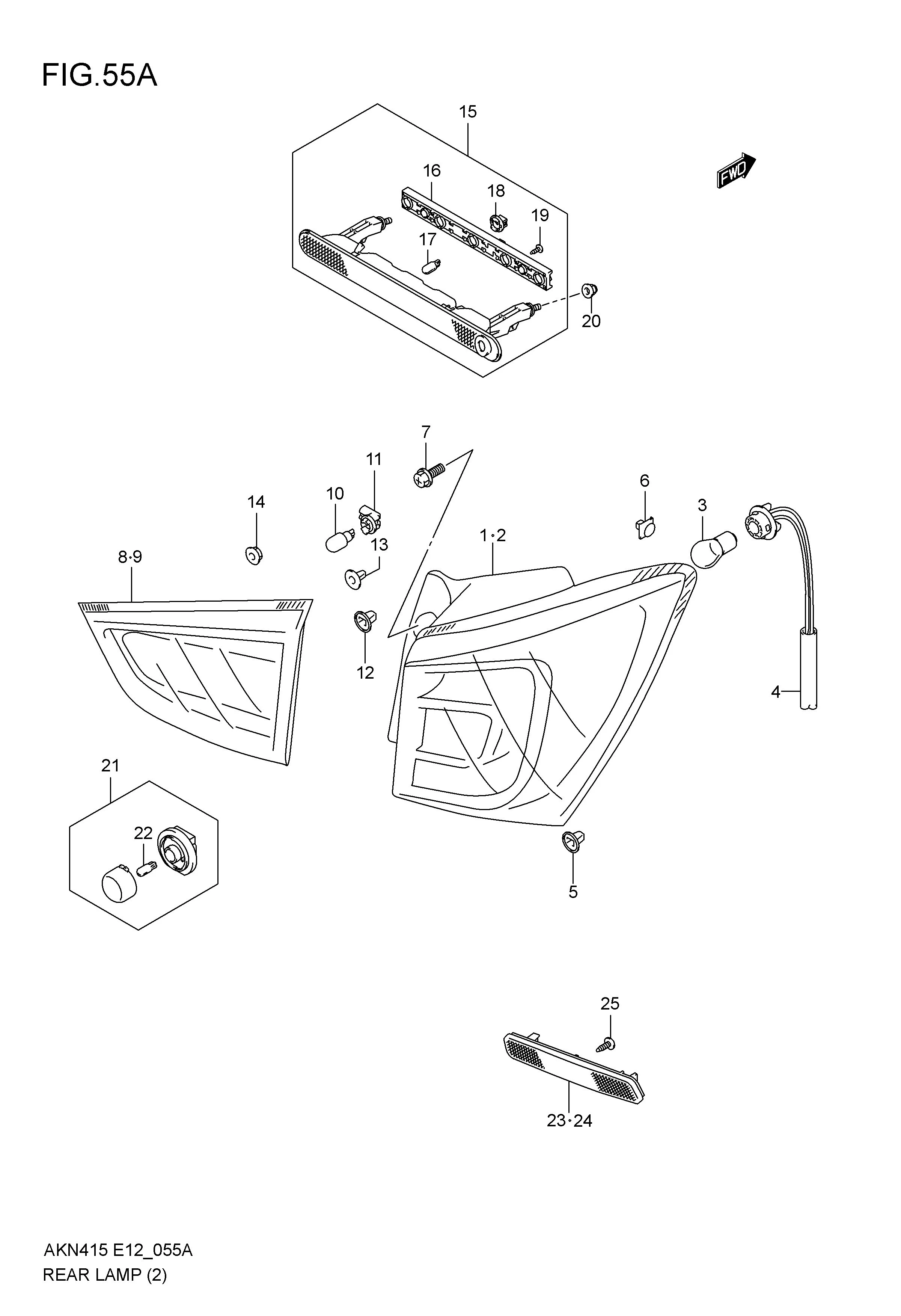

REAR LAMP (TYPE-2)

REAR LAMP (TYPE-2)
No No. Part Description Qty Price Per Pcs Remarks
1 35650M84R00-000 LAMP UNIT RR COMB, RH 1 Rp1.971.500
2 35750M84R00-000 LAMP UNIT RR COMB, LH 1 Rp1.971.500
3 09471-12245-000
SUB: 09471B12245N000		 BULB (12V-21W) 2 Rp30.500
4 35658M84R00-000 WIRING HARNESS 2 Rp192.500
5 35153M59K10-000 GROMMET, REAR COMB LAMP LOWER 2 Rp8.000
6 35153M75L00-000 GROMMET, REAR COMB LAMP UPPER 2 Rp7.000
7 01551-0616C-000 SCREW 4 Rp14.500
8 35651M84R00-000 UNIT LAMP BACK UP, RH 1 Rp773.000
9 35751M84R00-000 UNIT LAMP BACK UP, LH 1 Rp773.000
10 09471-12146-000
SUB: 09471B12146N000		 BULB 12V-16W 2 Rp39.500
11 35818M84R00-000 BULB HOLDER 2 Rp39.500
12 35153M59K10-000 GROMMET, REAR COMB LAMP LOWER 2 Rp8.000
13 35153M59K20-000 GROMMET, REAR COMB LAMP UPPER 2 Rp8.000
14 09159-06076-000 NUT 2 Rp19.500
15 35810-74L00-000
SUB: 35810B74L00N000		 LAMP ASSY, HIGH MT STOP 1 Rp237.500
16 35822-74L00-000
SUB: 35822B74L00N000		 .CONTACT PLATE 1 Rp50.000
17 09471-12216-000 .BULB(12V 5W) 5 Rp15.000
18 35817-74L00-000
SUB: 35817B74L00N000		 .BULB HOLDER 5 Rp17.500
19 35827-74L00-000
SUB: 35827B74L00N000		 .SCREW 2 Rp4.500
20 09159-06100-000 NUT 2 Rp19.000
21 35910M83K03-000 LAMP ASSY, LICENSE 2 Rp49.000
22 09471-12216-000 .BULB(12V,5W) 2 Rp15.000
23 35950M55K01-000 REFLECTOR ASSY, REAR RH 1 Rp54.000
24 35970M55K01-000 REFLECTOR ASSY, REAR LH 1 Rp54.000
25 03241M0516A-000 SCREW 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
