SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERY (5MT)BATTERY (6AT)SPEEDOMETERHEAD LAMP (TYPE-1)HEAD LAMP (TYPE-2)FRONT FOG LAMP (TYPE-1: W/FRONT FOG LAMP)FRONT FOG LAMP (TYPE-2: W/FRONT FOG LAMP)REAR LAMP (TYPE-1)REAR LAMP (TYPE-2)ROOM LAMPWIRING HARNESSELECTRICAL CONTROLLOCK SETFRONT WINDOW WIPERWINDOW WASHERREAR WINDOW WIPERAUDIO

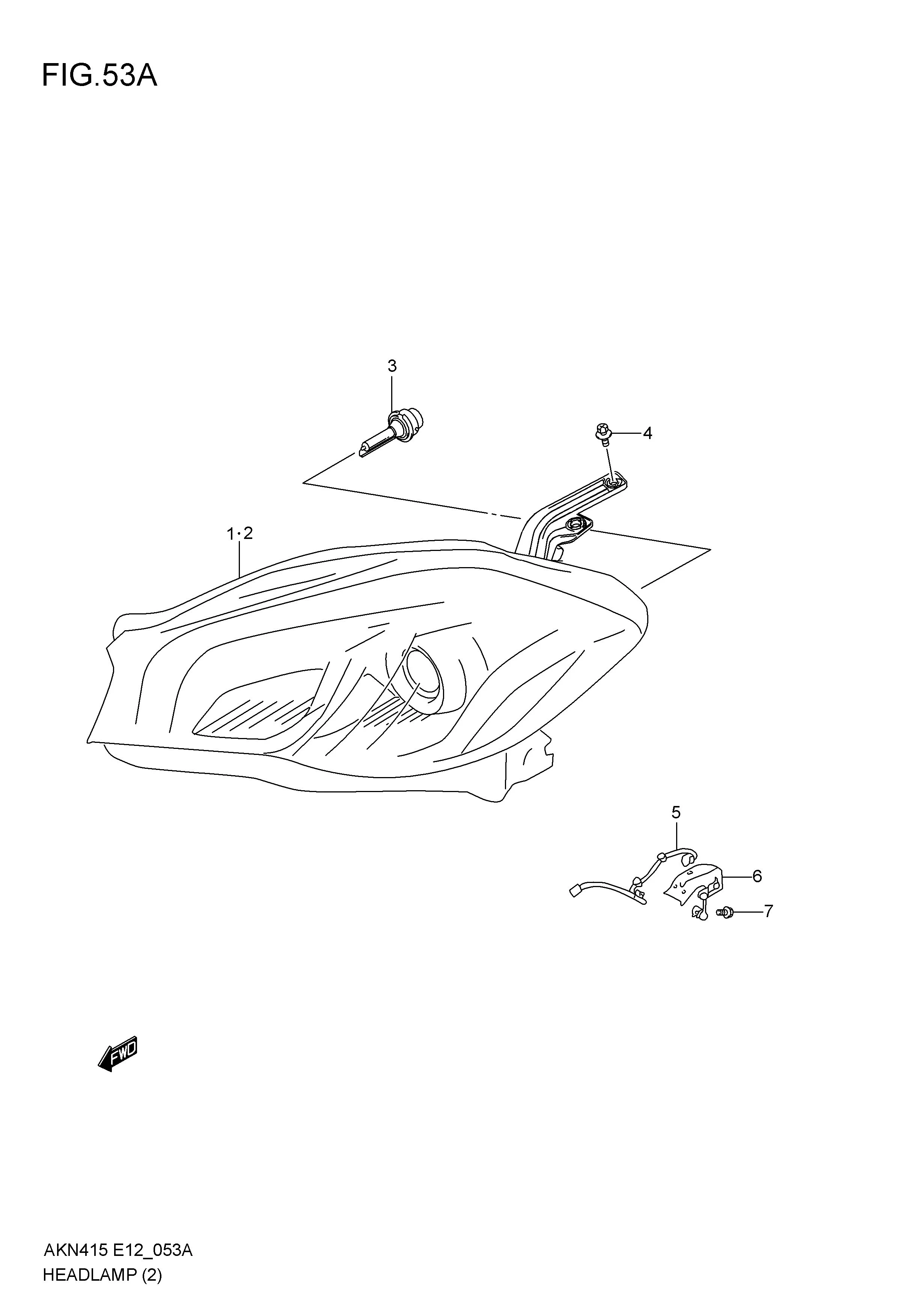

HEAD LAMP (TYPE-2)

HEAD LAMP (TYPE-2)
No No. Part Description Qty Price Per Pcs Remarks
1 35121M84RA1-000
SUB: 35121M84RA0-000		 UNIT HEADLAMP, RH 1 Rp7.506.000
2 35321M84RA1-000
SUB: 35321M84RA0-000		 UNIT HEADLAMP, LH 1 Rp7.506.000
3 09471-12186-000
SUB: 09471B12186N000		 BULB(12V21W) 2 Rp22.000
4 35181-71L00-000 SCREW, HEADLAMP 8 Rp22.500
5 36882M65M00-000 WIRE, RR HEIGHT SENSOR 1 Rp280.500
6 38640-80J10-000 SENSOR ASSY,RR HEIGHT 1 Rp2.470.000
7 02162-0612A-000 SCREW,HEIGHT SENSOR 3 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
