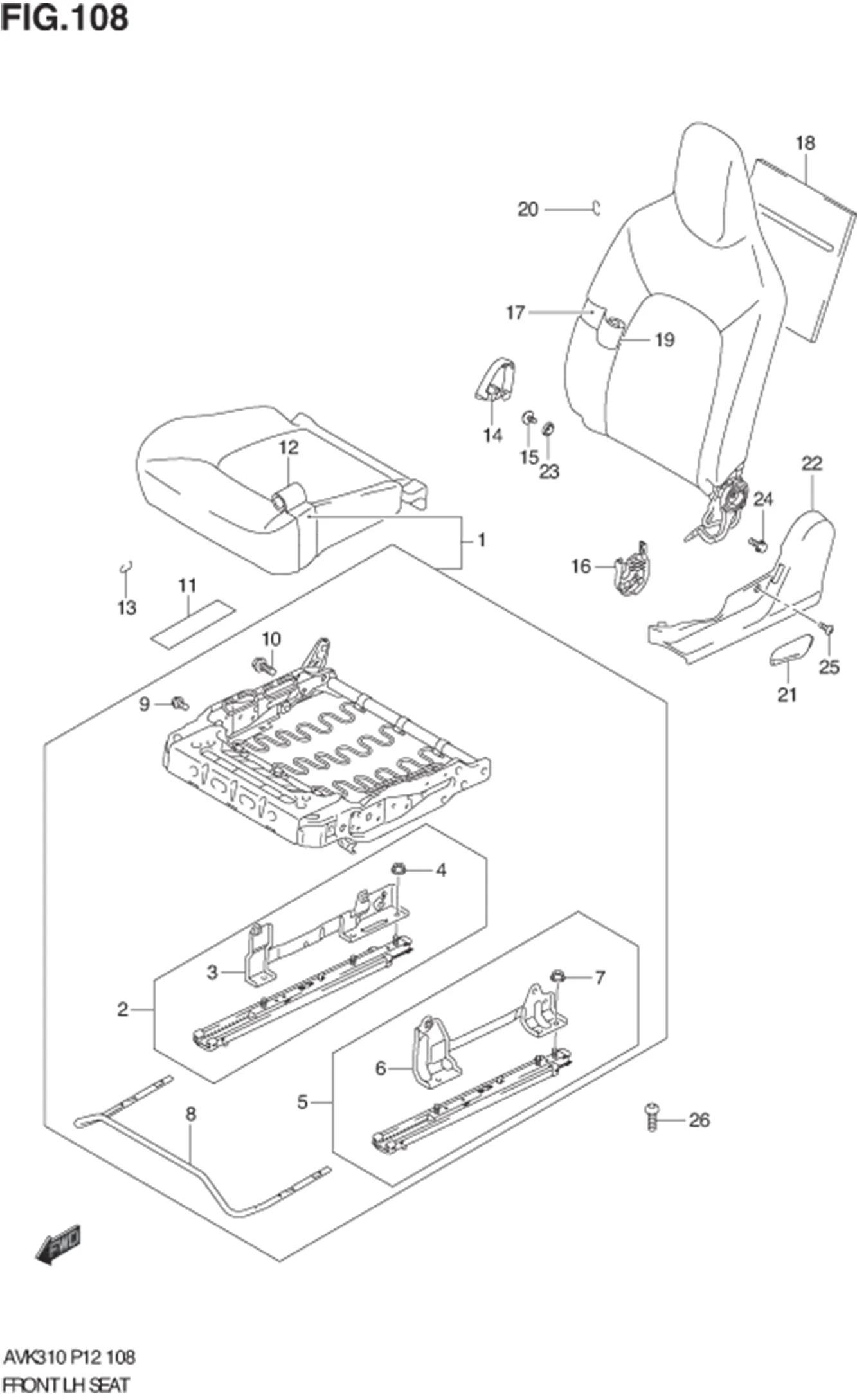

FIG.108 FRONT LH SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85106-84M00-000	CUSHION S/ASSY, FR LH	1	Rp4.559.500
2	86602-76M00-000	•ADJUSTER, FR INSIDE LH	1	Rp1.232.500
3	86720-76M00-000	••RISER, INSIDE LH	1	Rp771.000
4	08316-1008A-000 SUB: 08316B1008AN000	••NUT	3	Rp3.500
5	86604-76M00-000	•ADJUSTER, FR OUTSIDE LH	1	Rp1.100.500
6	86740-76M00-000	••RISER, OUTSIDE LH	1	Rp771.000
7	08316-1008A-000 SUB: 08316B1008AN000	••NUT	3	Rp3.500
8	86691-76M00-000	•HANDLE, FR SEAT ADJUSTER	1	Rp358.000
9	01550-0816A-000 SUB: 01550B0816AN000	•BOLT	2	Rp6.000
10	01550-1035A-000 SUB: 01550B1035AN000	•BOLT	2	Rp5.500
11	85164-84M00-000	FELT, FR CUSH WIRE	2	Rp53.500
12-1	85680-84M00-A4G	TRIM,FR CUSH LH(BLUE/BLACK/GRAY)	1	Rp1.234.000	GLX
12-2	85680-84M00-A4J	TRIM ,FR CUSH LH (YELLOW/BLACK/GRAY)	1	Rp1.234.000	GLX
13	09387-19001-000 SUB: 09387B19001N000	RING	14	Rp9.000
14	85241-75L00-P4Z	COVER, FR HINGE OUTSIDE (GRAY)	1	Rp211.500
15	85295-58J01-000 SUB: 85295B58J01N000	BOLT, FR BACK FIX	1	Rp34.000
16	85242-75L00-P4Z	COVER, FR BACK FRAME LH (GRAY)	1	Rp1.037.500
17	85306-84M10-000	BACK S/ASSY, FR LH	1	Rp3.835.500
18	85385-76M00-000	PAD,SPRING SUPPORT	1	Rp283.500
19-1	85880-84M00-A4G	TRIM,FR BACK LH(BLUE/BLACK/GRAY)	1	Rp1.452.000	GLX
19-2	85880-84M00-A4J	TRIM, FR BACK LH (YELLOW/BLACK/GRAY)	1	Rp1.452.000	GLX
20	09387-19001-000 SUB: 09387B19001N000	RING	8	Rp9.000
21	85711-68K00-P4Z	KNOB, RCLNG LH (GRAY)	1	Rp132.000
22	85721-84M00-P4Z	COVER, RCLNG OUTSIDE LH (GRAY)	1	Rp440.000
23	87286-58J10-000 SUB: 87286B58J10N000	BUSH, CUSH STAY FIX	1	Rp4.500
24	01550-1016A-000 SUB: 01550B1016AN000	BOLT	2	Rp5.500
25	03241-0510A-000	SCREW	2	Rp8.000
26	09119-08102-000	BOLT (8X25)	4	Rp33.000
