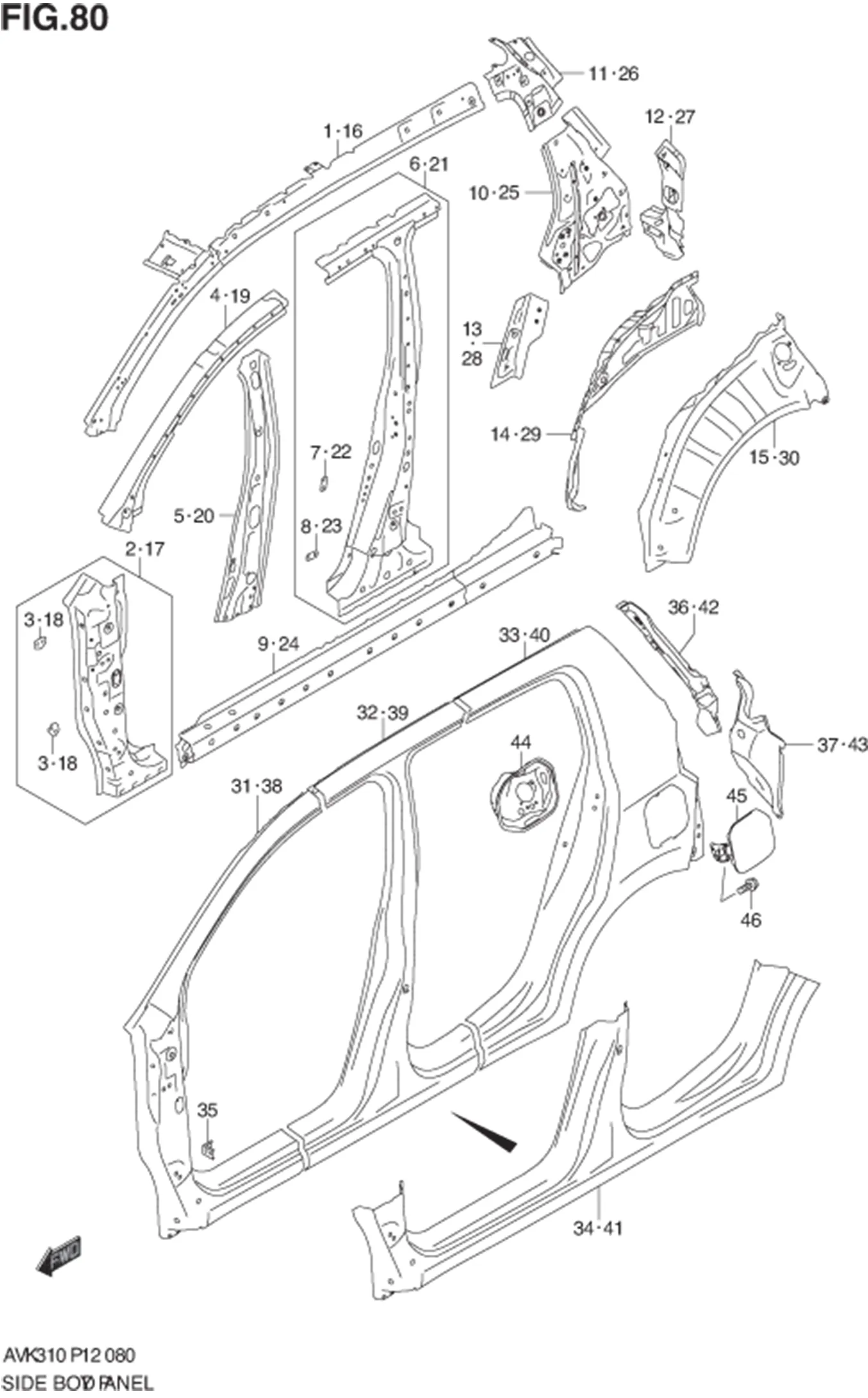

FIG.80 SIDE BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	63110-76M10-000	PANEL, FRONT PILLAR INR RH	1	Rp1.164.000
2	63140-84810-000	REINF SET, FR DR HNG RH	1	Rp2.852.500
3	63144-84M00-000	•RETAINER, FRONT DOOR HINGE	2	Rp60.000
4	63151-84M00-000	REINF, FR PILLAR UPPER RH	1	Rp595.000
5	63210-84M00-000	PANEL, CTR PILLAR INNER RH	1	Rp591.500
6	63220-84820-000	REINF SET, CTR PLR RH	1	Rp2.969.500
7	63243M75J00-000	•RETAINER, RR DOOR HINGE UPR	1	Rp8.500
8	63244M75J00-000	•RETAINER, RR DOOR HINGE LWR	1	Rp8.500
9	63230-84M10-000	STRENGTH, SIDE SILL RH	1	Rp1.266.500
10	63310-84M00-000	PANEL, QTR INNER CTR RH	1	Rp808.500
11	63312-84M00-000	EXTENSION, QTR INNER RH	1	Rp389.500
12	63313-84M00-000	PANEL, RR LAMP HOUSE INR RH	1	Rp400.500
13	63320-84M10-000	REINF, RR DOOR STRIKER RH	1	Rp150.000
14	63410-84M10-000	PANEL, WHEEL HOUSE INR RH	1	Rp970.500
15	63481-84M10-000	PANEL, WHEEL HOUSE OTR RH	1	Rp1.711.500
16	63510-76M10-000	PANEL, FRONT PILLAR INR LH	1	Rp1.164.000
17	63540-84810-000	REINF SET, FR DR HNG LH	1	Rp2.852.500
18	63144-84M00-000	•RETAINER, FRONT DOOR HINGE	2	Rp60.000
19	63551-84M00-000	REINF, FR PILLAR UPPER LH	1	Rp595.000
20	63610-84M00-000	PANEL, CTR PILLAR INNER LH	1	Rp591.500
21	63620-84820-000	REINF SET, CTR PLR LH	1	Rp2.969.500
22	63243M75J00-000	•RETAINER, RR DOOR HINGE UPR	1	Rp8.500
23	63244M75J00-000	•RETAINER, RR DOOR HINGE LWR	1	Rp8.500
24	63630-84M10-000	STRENGTH, SIDE SILL LH	1	Rp1.266.500
25	63710-84M10-000	PANEL, QTR INNER CTR LH	1	Rp809.500
26	63712-84M00-000	EXTENSION, QTR INNER LH	1	Rp389.500
27	63713-84M00-000	PANEL, RR LAMP HOUSE INR LH	1	Rp400.500
28	63720-84M10-000	REINF, RR DOOR STRIKER LH	1	Rp150.000
29	63810-84M10-000	PANEL, WHEEL HOUSE INR LH	1	Rp970.500
30	63881-84M10-000	PANEL, WHEEL HOUSE OTR LH	1	Rp1.711.500
31	64111-84M10-P11	PANEL, A-PLR RH	1	Rp4.104.000
32	64111-84M10-P21	PANEL, B-PLR RH	1	Rp3.536.000
33	64111-84M00-P31 SUB: 64111-84M10-P31	PANEL, QTR RH	1	Rp5.928.500
34	64111-84M10-P41	PANEL, SIDE SILL RH	1	Rp5.017.000
35	64113M63J00-000	BRACKET, FR FNDR	2	Rp7.500
36	64120-84M00-000	EXTENSION, SIDE BODY OTR RH	1	Rp496.000
37	64131-84M10-000	PANEL, RR LAMP HOUSE OTR RH	1	Rp515.000
38	64511-84M10-P11	PANEL, A-PLR LH	1	Rp4.104.000
39	64511-84M10-P21	PANEL, B-PLR LH	1	Rp3.536.000
40	64511-84M00-P31 SUB: 64511-84M10-P31	PANEL, QTR LH	1	Rp5.928.500
41	64511-84M10-P41	PANEL, SIDE SILL LH	1	Rp5.017.000
42	64520-84M00-000	EXTENSION, SIDE BODY OTR LH	1	Rp496.000
43	64531-84M10-000	PANEL, RR LAMP HOUSE OTR LH	1	Rp515.000
44	64571-84M00-000	BOX, FUEL FILLER	1	Rp173.000
45	64850-84M00-000	DOOR, FUEL FILLER	1	Rp565.000
46	DISCONTINUE SUB: 01550B0612AN000	BOLT	2	-
