CELERIO

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.76 FRONT HOOD PANEL FIG.77 FRONT FENDER PANEL FIG.78 FRONT BODY PANEL FIG.79 FLOOR PANEL FIG.80 SIDE BODY PANEL FIG.81 ROOF PANEL FIG.82 FRONT BUMPER (GLX) FIG.83 REAR BUMPER FIG.84 INSTRUMENT PANEL (W/PASSENGER AIR BAG) FIG.85 VENTILATOR FIG.86 HEATER UNIT FIG.87 HEATER CONTROL FIG.88 CONSOLE BOX FIG.89 FLOOR CARPET FIG.90 INTERIOR TRIM FIG.91 FUEL LID OPENER FIG.92 COVER/CAP FIG.93 ROOF LINING FIG.94 MOLDING FIG.95 EMBLEM FIG.96 WINDSHIELD FIG.97 FRONT DOOR PANEL (GLX) FIG.98 FRONT DOOR REGULATOR FIG.99 FRONT DOOR LOCK (GLX) FIG.100 REAR DOOR PANEL FIG.101 REAR DOOR REGULATOR FIG.102 REAR DOOR LOCK (GLX) FIG.103 BACK DOOR PANEL FIG.104 BACK DOOR LOCK FIG.105 MIRROR/SUNVISOR (GLX) FIG.106 SEAT BELT FIG.107 FRONT RH SEAT FIG.108 FRONT LH SEAT FIG.109 REAR SEAT (GLX) FIG.110 PARCEL SHELF FIG.111 FUEL TANK FIG.112 TOOL FIG.113 AIR CONDITIONER FIG.114 COMPRESSOR

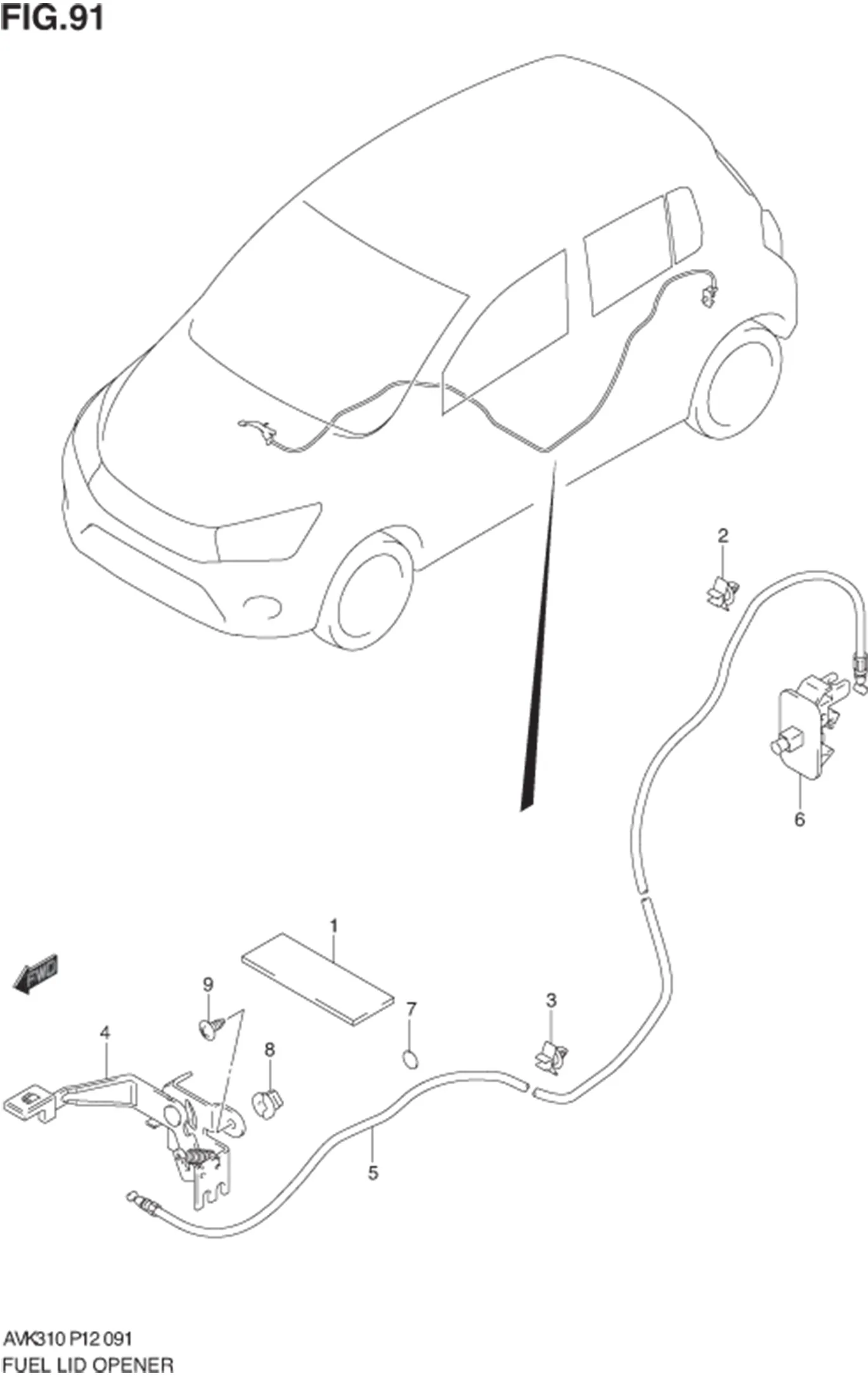

FIG.91 FUEL LID OPENER

FIG.91 FUEL LID OPENER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36930M82000-000 SUB: 36930M82010-000	COVER, HARNESS	3	Rp6.500
2	75411-76G00-000	CLAMP, CABLE	1	Rp31.000
3	75411-76G30-000	CLAMP, CABLE	1	Rp32.000
4	76420-58M00-000	LEVER, FUEL LID OPENER	1	Rp193.000
5	76430-84M00-000	CABLE, FUEL LID OPENER	1	Rp141.000
6	76520M74K01-000	OPENER, FUEL LID	1	Rp23.500
7	77191-79F00-000 SUB: 77191B79F00N000	FILM, BACK DR SIDE CUSHION	1	Rp7.500
8	71851M70F00-000 SUB: 09148M06007-000	NUT	1	Rp4.000
9	03241M0612A-000	SCREW	1	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
