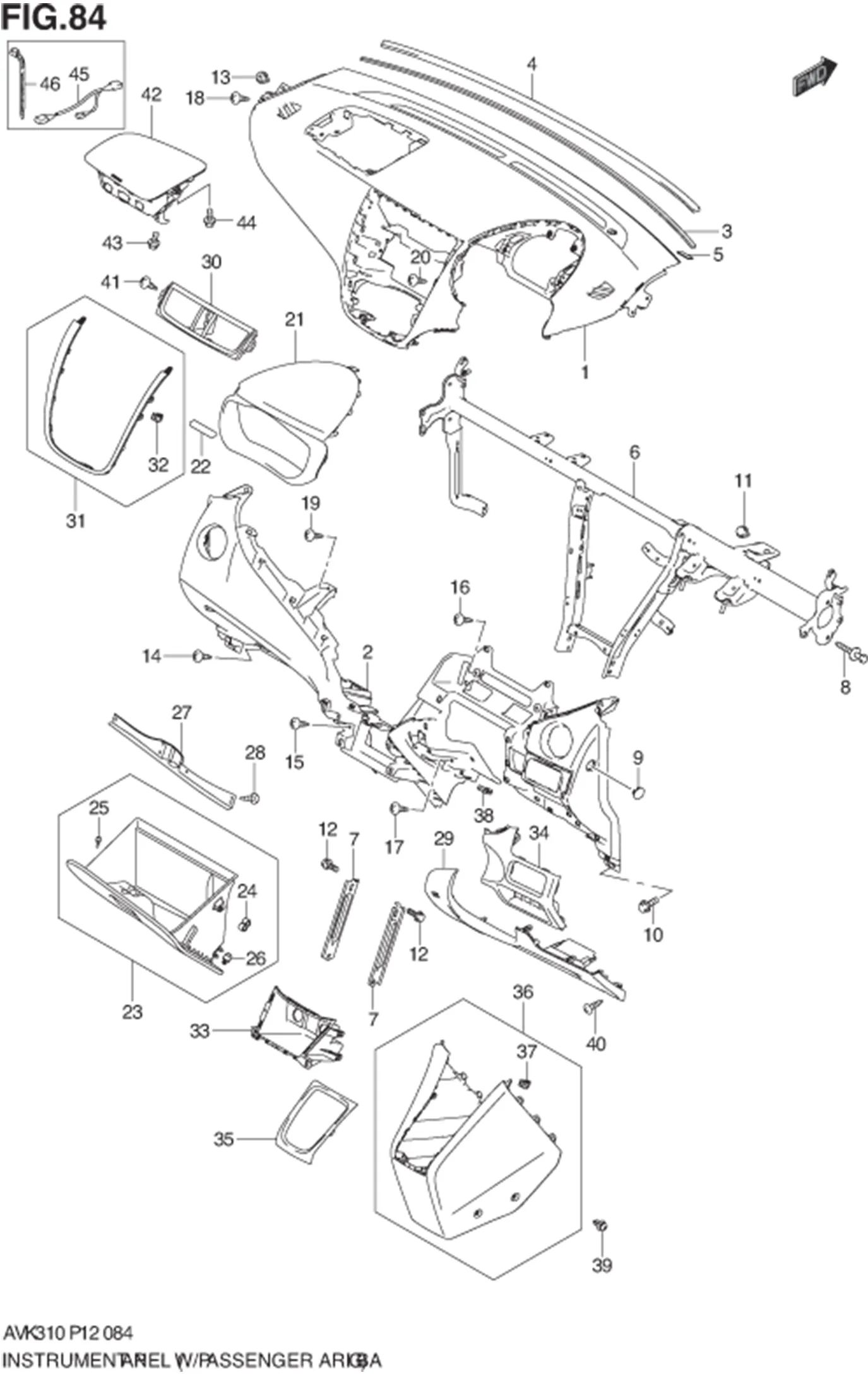

FIG.84 INSTRUMENT PANEL (W/PASSENGER AIR BAG)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73111-84M00-5PK	PANEL, INSTRUMENT MAIN (BLACK)	1	Rp2.177.000
2	73112-84M00-P4Z	PANEL, INSTRUMENT LOWER (GRAY)	1	Rp1.836.500
3	73114-76M00-000	SILENCER, I/P TOP	1	Rp275.500
4	73118-58J00-000 SUB: 73118B58J00N000	SEAL, I/P	1	Rp10.000
5	73123-61M00-000	FELT, I/P TOP	5	Rp16.000
6	73200-84M00-000	MEMBER ,STEERING SUPPORT	1	Rp3.659.000
7	73261-76M00-000	BRACE, STRG SPRT MBR LWR	2	Rp622.000
8	73291-50G20-000	BOLT, STRG SPRT MBR SIDE	4	Rp42.500
9	73871-73H00-P4Z SUB: 73871B73H00NP4Z	CAP, I/P SIDE (GRAY)	3	Rp9.000
10	09138-06049-000	BOLT (6X12)	2	Rp17.000
11	01551-0816C-000	BOLT	1	Rp13.500
12	01551-0820A-000	BOLT	4	Rp17.500
13	01550-0612B-000	SCREW	2	Rp16.500
14	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
15	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
16	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
17	03241-0512A-000 SUB: 03241B0512AN000	SCREW	1	Rp3.500
18	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
19	03241-0512A-000 SUB: 03241B0512AN000	SCREW	1	Rp3.500
20	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
21	73311-84M10-5PK	PANEL, INSTRMENT CLUSTER (BLACK)	1	Rp348.500
22	73314-62J00-000	SEAL, I/P CLUSTER	1	Rp34.000
23	73410-84M00-P4Z	BOX, GLOVE (GRAY)	1	Rp570.500
24	73413-63J00-000	•CUSHION, GLOVE BOX	2	Rp33.000
25	73413M82C00-000	•CUSHION, GLOVE BOX LID	1	Rp11.500
26	73461-54M00-000	•CUSHION, GLOVE BOX SIDE	2	Rp32.000
27	73480-76M00-000	REINF, GLOVE BOX UPR	1	Rp95.500
28	03541-0516A-000 SUB: 03541B0516AN000	SCREW	4	Rp3.500
29	73811-84M00-P4Z	COVER, STRG COLUMN HOLE (GRAY)	1	Rp292.000
30	73822-76M00-5PK	GARNISH, I/P CTR LOUVER (BLACK)	1	Rp120.000
31	73823-84M10-ZML	ORNAMENT, I/P CENTER (SILVER)	1	Rp155.000
32	09409-08349-000 SUB: 09409B08342N000	•CLIP	4	Rp4.500
33	73824-84M00-5PK	BOX, I/P LOWER (BLACK)	1	Rp114.000
34	73831-76M00-P4Z	BEZEL, I/P SW (GRAY)	1	Rp132.000
35	73840-76M10-5PK	GARNISH, I/P SHIFT AT (BLACK)	1	Rp132.000	CVT
36	73891-84M00-P4Z	COVER, I/P LOWER (GRAY)	1	Rp463.000
37	09409-08349-000 SUB: 09409B08342N000	•CLIP	2	Rp4.500
38	09148-05045-000 SUB: 09148B05045N000	NUT	2	Rp4.000
39	09409-06322-5PK SUB: 09409-06322-000	CLIP	4	Rp19.000
40	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
41	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
42	73910-84M00-5PK	MODULE ASSY, PASSENGER AIR BAG (BLACK)	1	Rp3.203.000	SEE NOTE
43	01551-0816C-000	BOLT	2	Rp13.500
44	01550-0612B-000	SCREW	2	Rp16.500
45	36691-84M00-000	WIRE, AIR BAG	1	Rp839.000	OPT:SEE SERVICE MANUAL
46	09407-18402-000 SUB: 09407B18402N000	CLAMP (L:165)	7	Rp8.000	OPT:SEE SERVICE MANUAL
