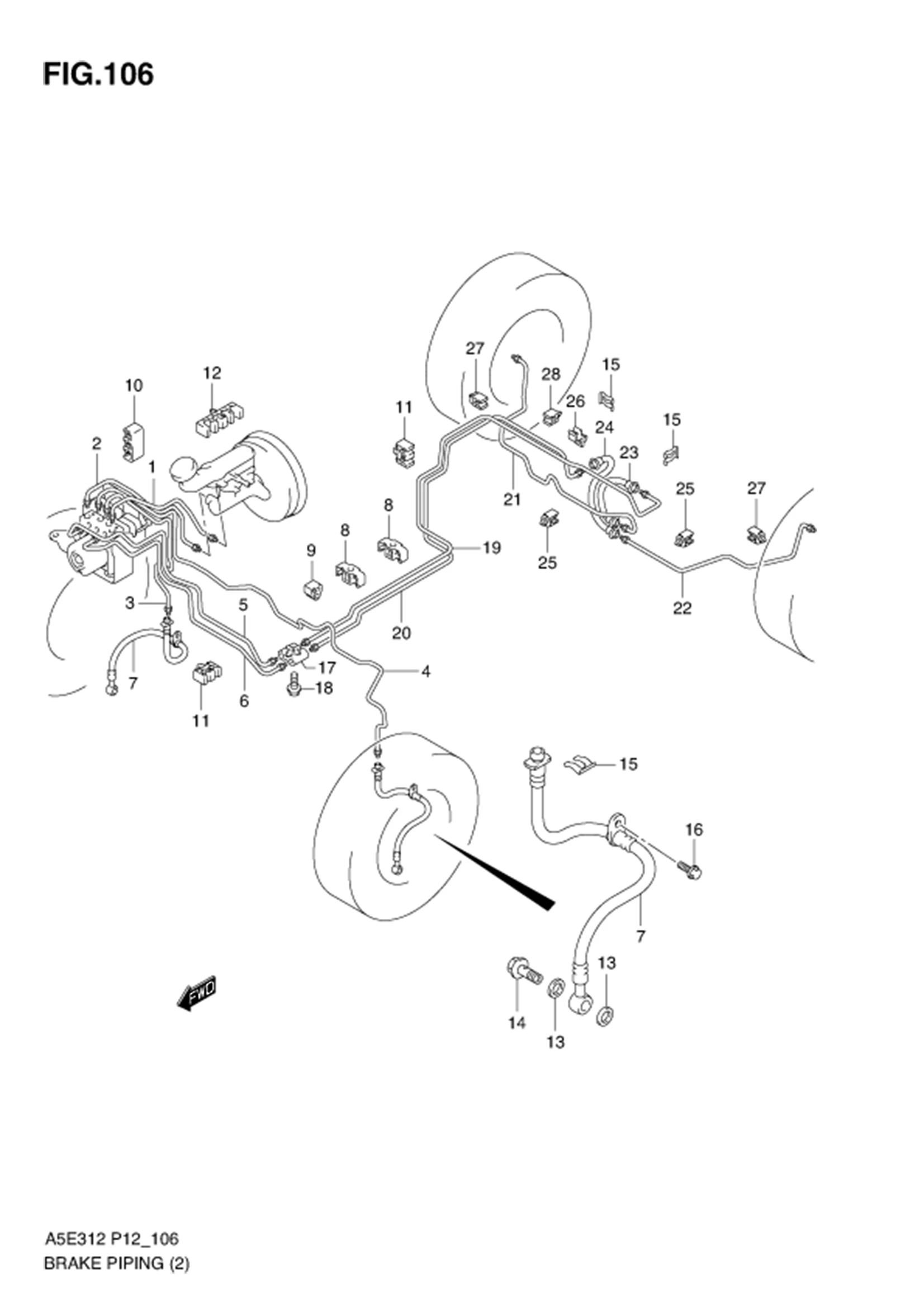

FIG.106 BRAKE PIPING (W/ABS)

FIG.106 BRAKE PIPING (W/ABS)
No No. Part Description Qty Price Per Pcs Remarks
1-2 51410M83K20-000 PIPE,MA PRI TO UNIT 1 Rp45.500 TYPE 2
1-1 51410M83K10-000 PIPE,MA PRI TO UNIT 1 Rp42.000 TYPE 1
2-1 51420M83K10-000 PIPE,MA SEC TO UNIT 1 Rp37.500 TYPE 1
2-2 51420M83K20-000 PIPE,MA SEC TO UNIT 1 Rp49.000 TYPE 2
3 51430M83K11-000
SUB: 51430M83K10-000		 PIPE,UNIT TO FR BK HOSE RH 1 Rp55.000
4 51440M83K10-000 PIPE,UNIT TO FR BK HOSE LH 1 Rp137.000
5 51450M83K10-000 PIPE,UNIT TO JOINT RH 1 Rp104.500
6 51460M83K10-000 PIPE,UNIT TO JOINT LH 1 Rp100.000
7 51550M75J00-000 HOSE,FR BRAKE FLEXIBLE 2 Rp127.000
8 51751M75J00-000 CLAMP,BRAKE PIPE FLOOR 3 Rp10.500
9 DISCONTINUE
SUB: 51752M70F00-000		 CLAMP,BRAKE PIPE DASH 3 -
10 51753M74G60-000
SUB: 51753M75J00-000		 CLAMP,BRAKE PIPE UNIT 1 Rp34.500
11 51761M75J20-000 CLAMP,BRAKE PIPE FRAME 5 Rp12.000
12 51761M75J40-000 CLAMP,BRAKE PIPE 4 1 Rp11.500
13 51562M55K00-000 WASHER 4 Rp8.500
14 51561M55K00-000 BOLT 2 Rp8.500
15 09383M13004-000
SUB: 09383-13003-000		 E RING 6 Rp7.000
16 01551-0816C-000 BOLT 2 Rp13.500
17 51630M70F00-000 JOINT,BRAKE 4 WAY 1 Rp122.000
18 02162-0625A-000 BOLT 1 Rp3.500
19 51470M83K00-000 PIPE,JOINT TO RR BK HOSE RH 1 Rp214.500
20 51480M83K01-000
SUB: 51480M83K00-000		 PIPE,JOINT TO RR BK HOSE LH 1 Rp192.500
21 51510M83K00-000 PIPE,RR BK HOSE TO WHL CYL RH 1 Rp75.500
22 51520M83K00-000 PIPE,RR BK HOSE TO WHL CYL LH 1 Rp66.000
23 51570M75J00-000 HOSE,RR BRAKE FLEXIBLE RH 1 Rp91.000
24 51580M75J00-000 HOSE,RR BRAKE FLEXIBLE LH 1 Rp93.000
25 51761M75J10-000 CLAMP,BRAKE PIPE AXLE 2 Rp6.500
26 DISCONTINUE
SUB: 51761-62J60-000		 CLAMP,BRAKE PIPE RR X MBR 1 -
27 51761M60M00-000 CLAMP,BRAKE PIPE SIDE MEMBER LH 2 Rp5.500
28 51761M60M00-000 CLAMP,BRAKE PIPE SIDE MEMBER LH 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
