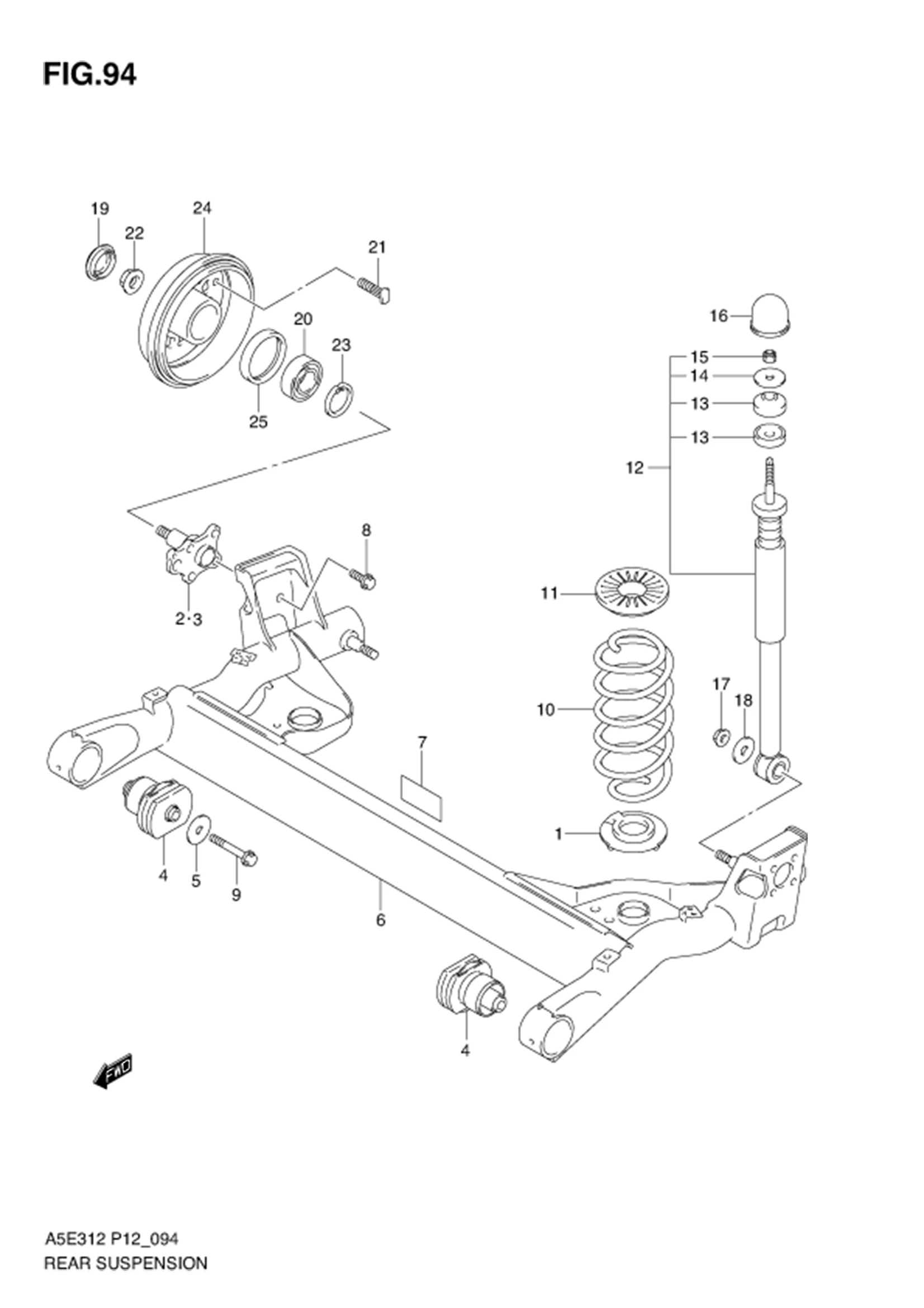

FIG.94 REAR SUSPENSION

FIG.94 REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 41312-63J00-000
SUB: 41312M63J00-000		 SEAT,REAR SPRING RUBBER LOWER 2 Rp61.000
2 46111M63J10-000 SPINDLE,REAR RH 1 Rp387.000
3 46151M63J10-000 SPINDLE,REAR LH 1 Rp395.500
4 46221M83K10-000
SUB: 46221-83K00-000		 BUSHING,TRAILING ARM 2 Rp399.000
5 46222M63J00-000 WASHER,TRAILING ARM 2 Rp13.500
6 46059M83K11-000
SUB: 46510M83K00-000		 AXLE,REAR 1 Rp4.552.500
7 79271M75J00-000 LABEL,AXLE 1 Rp12.500
8 09103-12502-000 BOLT (12X30) 8 Rp39.000
9 09135-12015-000 BOLT (12X115) 2 Rp65.500
10 41311M83K00-000
SUB: 41311M83K01-000		 SPRING,REAR COIL 2 Rp384.000
11 41341M63J00-000 SEAT,REAR SPRING RUBBER UPPER 2 Rp28.500
12 41800M83K00-000 ABSORBER ASSY,REAR SHOCK 2 Rp866.500
13 41812M83K00-000 •BUSH,REAR SHOCK 4 Rp75.500
14 41813M83K00-000 •WASHER,REAR SHOCK UPPER 2 Rp13.000
15 41814M74L00-000 •NUT,REAR SHOCK ABSORBER 2 Rp15.000
16 41951M75J00-000 CAP,REAR SHOCK ABSORBER 2 Rp12.500
17 09159-12045-000 NUT 2 Rp22.000
18 09160-12109-000 WASHER (12.5X38X3.2) 2 Rp30.500
19 43241M68K00-000 CAP,SPINDLE 2 Rp14.500
20 46860M83K01-000 BEARING,REAR WHEEL 2 Rp410.000
21 09119-12016-000 BOLT (12X33) 8 Rp27.000
22 09159-18022-000 NUT 2 Rp73.500
23 08331-41589-000
SUB: 08331-4158A-000		 CIRCLIP 2 Rp26.000
24-1 43511M75J30-000
SUB: 43511M75J10-000		 DRUM,REAR BRAKE 2 Rp788.500 N/ABS
24-2 43511M75J20-000 DRUM,REAR BRAKE 2 Rp619.500 W/ABS
25 56451-83K00-000 RING,REAR WHEEL SENSOR 2 Rp402.000 W/ABS

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
