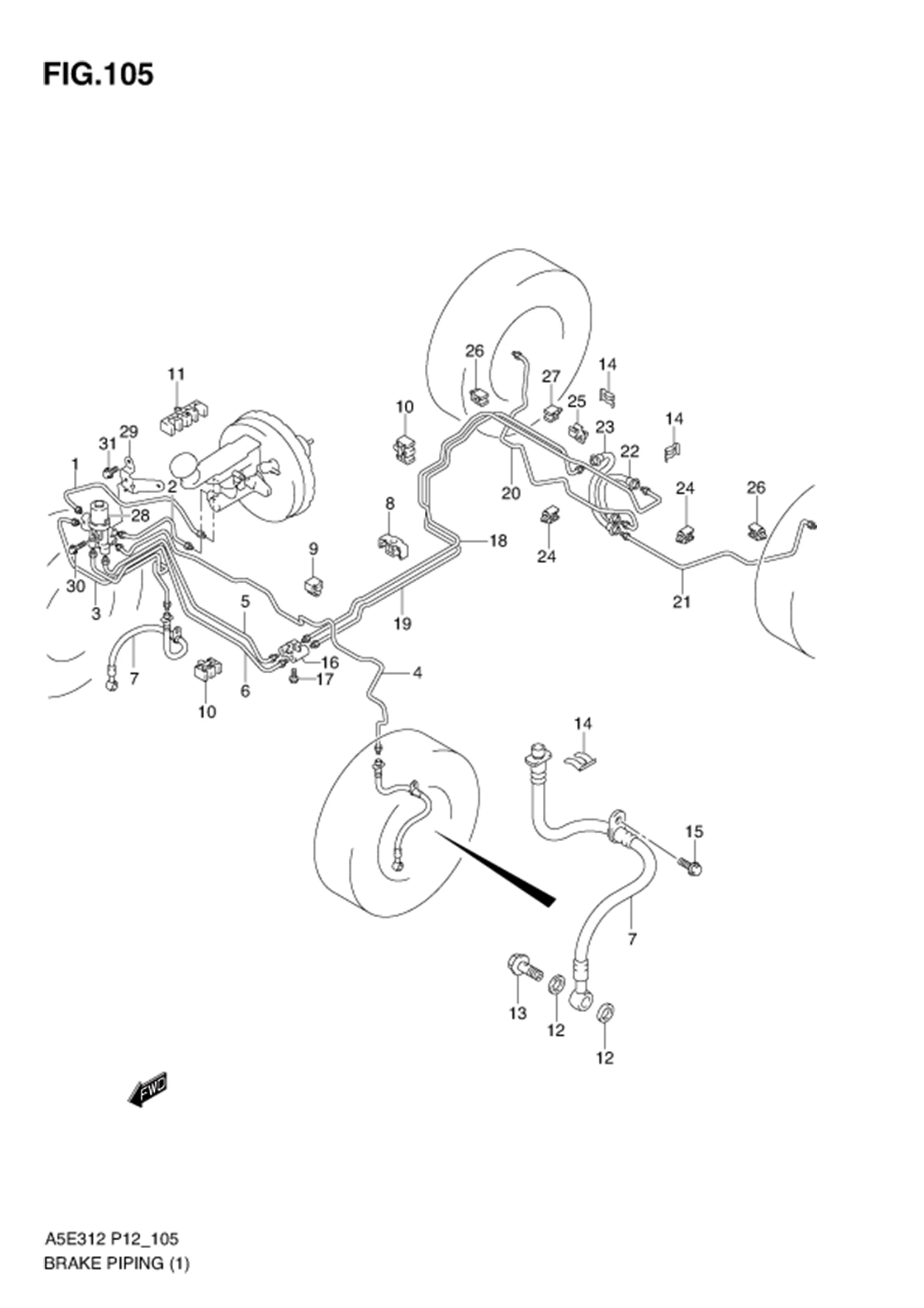

FIG.105 BRAKE PIPING (N/ABS)

FIG.105 BRAKE PIPING (N/ABS)
No No. Part Description Qty Price Per Pcs Remarks
1 51410M75J00-000 PIPE,MA PRI TO VALVE 1 Rp35.000
2 51420M75J00-000 PIPE,MA SEC TO VALVE 1 Rp28.500
3 51430M75J00-000 PIPE,VALVE TO FR BK HOSE RH 1 Rp57.500
4 51440M83K01-000
SUB: 51440M83K00-000		 PIPE,VALVE TO FR BK HOSE LH 1 Rp114.000
5 51450M75J00-000 PIPE,VALVE TO JOINT RH 1 Rp88.500
6 51460M75J00-000 PIPE,VALVE TO JOINT LH 1 Rp91.500
7 51550M75J00-000 HOSE,FR BRAKE FLEXIBLE 2 Rp127.000
8 51751M75J00-000 CLAMP,BRAKE PIPE FLOOR 3 Rp10.500
9 DISCONTINUE
SUB: 51752M70F00-000		 CLAMP,BRAKE PIPE DASH 3 -
10 51761M75J20-000 CLAMP,BRAKE PIPE FRAME 5 Rp12.000
11 51761M75J40-000 CLAMP,BRAKE PIPE 4 1 Rp11.500
12 51562M55K00-000 WASHER 4 Rp8.500
13 51561M55K00-000 BOLT 2 Rp8.500
14 09383M13004-000
SUB: 09383-13003-000		 E RING 6 Rp7.000
15 01551-0816C-000 BOLT 2 Rp13.500
16 51630M70F00-000 JOINT,BRAKE 4 WAY 1 Rp122.000
17 02162-0625A-000 BOLT 1 Rp3.500
18 51470M83K00-000 PIPE,JOINT TO RR BK HOSE RH 1 Rp214.500
19 51480M83K01-000
SUB: 51480M83K00-000		 PIPE,JOINT TO RR BK HOSE LH 1 Rp192.500
20 51510M83K00-000 PIPE,RR BK HOSE TO WHL CYL RH 1 Rp75.500
21 51520M83K00-000 PIPE,RR BK HOSE TO WHL CYL LH 1 Rp66.000
22 51570M75J00-000 HOSE,RR BRAKE FLEXIBLE RH 1 Rp91.000
23 51580M75J00-000 HOSE,RR BRAKE FLEXIBLE LH 1 Rp93.000
24 51761M75J10-000 CLAMP,BRAKE PIPE AXLE 2 Rp6.500
25 DISCONTINUE
SUB: 51761-62J60-000		 CLAMP,BRAKE PIPE RR X MBR 1 -
26 51761-77M00-000
SUB: 51761-62J70-000		 CLAMP,BRAKE PIPE AXLE 2 Rp5.500
27 51761-77M40-000
SUB: 51761-79J00-000		 CLAMP,BRAKE PIPE RR X MBR 2 Rp6.500
28 51910M860A1-000
SUB: 51910M860A3-000		 VALVE ASSY,PROPORTIONING 1 Rp1.016.000
29 DISCONTINUE
SUB: 51952M75J00-000		 BRACKET,VALVE 1 -
30 01550-0635A-000
SUB: 01550B0635AN000		 BOLT 1 Rp3.000
31 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
