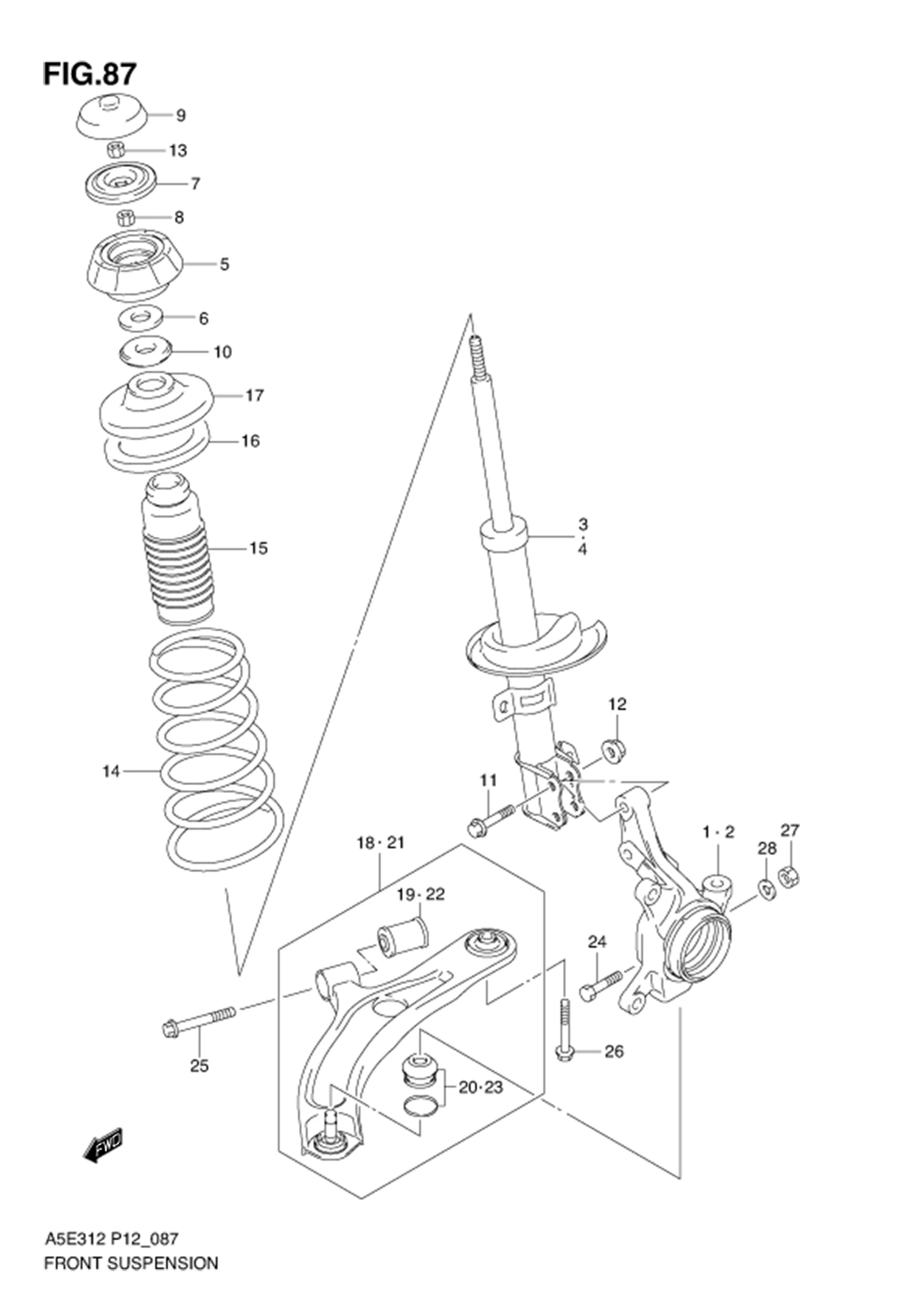

FIG.87 FRONT SUSPENSION

FIG.87 FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1-2 45111M83K10-000 KNUCKLE,STEERING RH 1 Rp1.304.500 W/ABS
1-1 45111M75J00-000 KNUCKLE,STEERING RH 1 Rp1.006.000 N/ABS
2-1 45151M75J00-000 KNUCKLE,STEERING LH 1 Rp1.006.000 N/ABS
2-2 45151M83K10-000 KNUCKLE,STEERING LH 1 Rp1.304.500 W/ABS
3 41601M83K12-000
SUB: 41601M83K10-000		 STRUT ASSY,FR SUSPENSION RH 1 Rp1.379.500
4 41602M83K12-000
SUB: 41602M83K10-000		 STRUT ASSY,FR SUSPENSION LH 1 Rp1.379.500
5 41710M83K00-000 SUPPORT,FRONT STRUT 2 Rp241.500
6 41711M57K00-000 PLATE,STRUT BEARING 2 Rp10.500
7 41720M83K10-000 STOPPER,FRONT STRUT REBOUND 2 Rp62.500
8 41721M83K00-000 NUT,STRUT SUPPORT LOWER 2 Rp10.000
9 41724M63J00-000 CAP,STRUT ROD 2 Rp34.500 FROM 2012-8
10 41742M57K10-000
SUB: 41742M57K00-000		 BEARING,FRONT STRUT 2 Rp81.000
11 09103-12118-000 BOLT (12X50) 4 Rp33.000
12 08316-1012A-000
SUB: 09159-12064-000		 NUT 4 Rp6.500
13 08310-0012A-000 NUT 2 Rp17.500
14 DISCONTINUE
SUB: 41111M83K00-000		 SPRING,FRONT COIL 2 -
15 42111M83K10-000 STOPPER,FRONT BUMP 2 Rp90.000
16 41211M63J00-000 SEAT,FRONT COIL SPRING UPPER 2 Rp23.000
17 41230-63J01-000 SEAT,FRONT SPRING UPPER 2 Rp264.500
18 45201M83K01-000 ARM ASSY,FRONT SUSPENSION RH 1 Rp954.500
19 45530M75J00-000 •BUSHING,SPNSN ARM FRONT 1 Rp110.500
20 45714-59811-000
SUB: 45714-59810-000		 •SEAL SET,DUST 1 Rp329.500
21 45202M83K01-000 ARM ASSY,FRONT SUSPENSION LH 1 Rp954.500
22 45530M75J00-000 •BUSHING,SPNSN ARM FRONT 1 Rp110.500
23 45714-59811-000
SUB: 45714-59810-000		 •SEAL SET,DUST 1 Rp329.500
24 09100-10222-000 BOLT (10X50) 2 Rp27.500
25 09135-14011-000 BOLT (14X90) 2 Rp65.500
26 09135-14018-000 BOLT (14X77) 2 Rp70.500
27 09159-10048-000 NUT 2 Rp19.500
28 09160-10142-000 WASHER (10X20X2.3) 2 Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
