Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET (TYPE 1)FIG.2 ENGINE GASKET SET (TYPE 2)FIG.3 CYLINDER HEAD (TYPE 1)FIG.4 CYLINDER HEAD (TYPE 2)FIG.5 CYLINDER FIG.6 OIL PAN (TYPE 1)FIG.7 OIL PAN (TYPE 2)FIG.8 ENGINE MOUNTING (TYPE 1)FIG.9 ENGINE MOUNTING (TYPE 2:MT)FIG.10 ENGINE MOUNTING (TYPE 2:AT)FIG.11 CRANKSHAFT (TYPE 1)FIG.12 CRANKSHAFT (TYPE 2)FIG.13 CAM SHAFT/VALVE (TYPE 1)FIG.14 CAM SHAFT/VALVE (TYPE 2)FIG.15 CAM CHAIN (TYPE 1)FIG.16 CAM CHAIN (TYPE 2)FIG.17 INTAKE MANIFOLD (TYPE 1)FIG.18 INTAKE MANIFOLD (TYPE 2)FIG.19 THROTTLE BODY (TYPE 1)FIG.20 THROTTLE BODY (TYPE 2)FIG.21 AIR CLEANER (TYPE 1)FIG.22 AIR CLEANER (TYPE 2)FIG.23 EXHAUST MANIFOLD (TYPE 1)FIG.24 EXHAUST MANIFOLD (TYPE 2)FIG.25 MUFFLER FIG.26 FUEL PUMP (TYPE 1)FIG.27 FUEL PUMP (TYPE 2)FIG.28 DELIVERY PIPE FIG.29 OIL PUMP (TYPE 1)FIG.30 OIL PUMP (TYPE 2)FIG.31 WATER PUMP FIG.32 RADIATOR (TYPE 1)FIG.33 RADIATOR (TYPE 2)FIG.34 WATER HOSE (TYPE 1)FIG.35 WATER HOSE (TYPE 2)FIG.36 EMISSION CONTROL (TYPE 1)FIG.37 EMISSION CONTROL (TYPE 2)FIG.38 LABEL

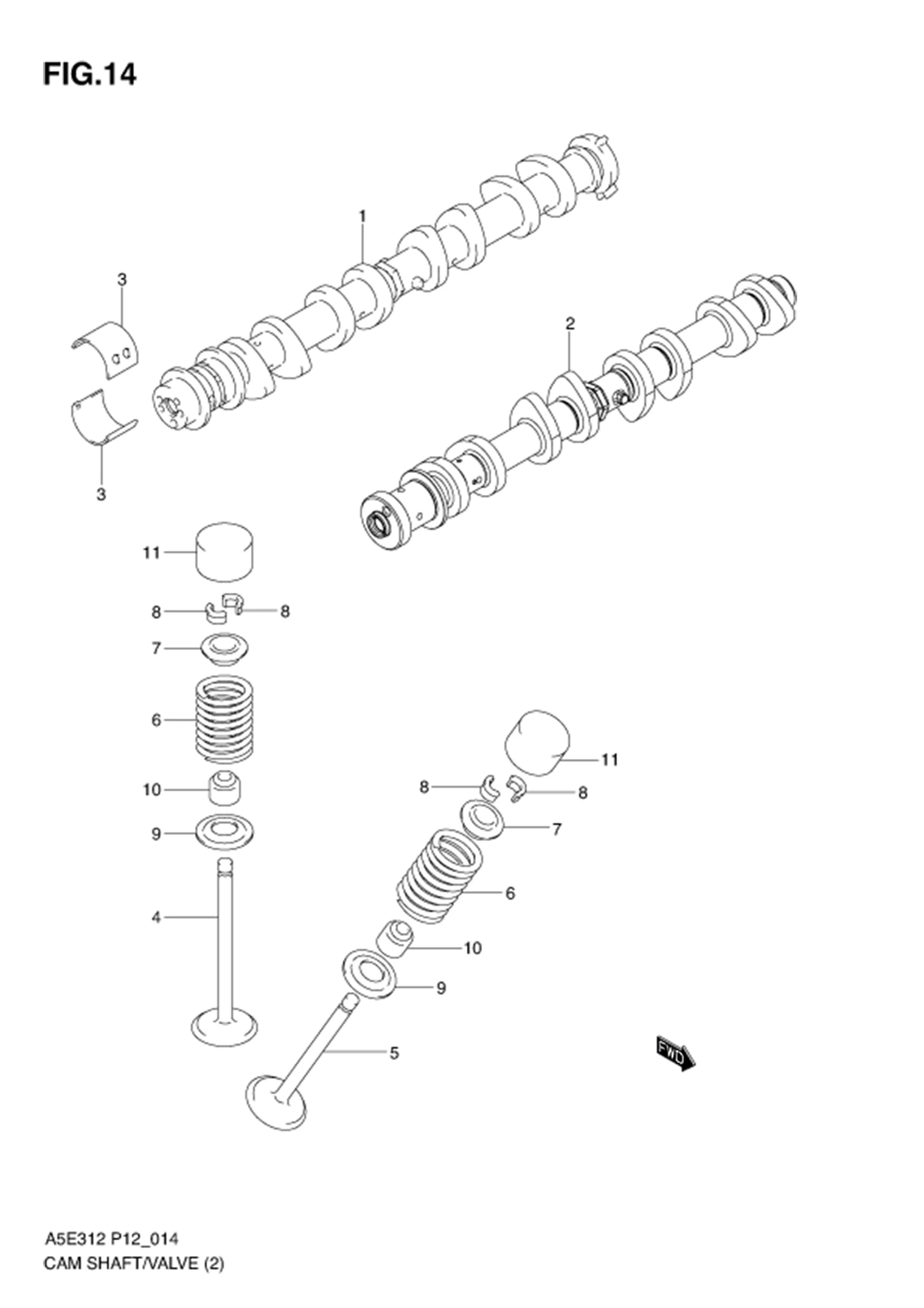

FIG.14 CAM SHAFT/VALVE (TYPE 2)

No	No. Part	Description	Qty	Price Per Pcs
1	12710M74LB0-000	CAMSHAFT,INTK	1	Rp1.052.000
2	12721M74LB0-000	CAMSHAFT,EXH	1	Rp995.000
3	12737-69LA0-000	BEARING,CAMSHAFT	2	Rp289.000
4	12911M74L00-000	VALVE,INTAKE	8	Rp91.000
5	12915M74L00-000	VALVE,EXH	8	Rp83.000
6	12921M58R00-000 SUB: 12921M74L00-000	SPRING,VALVE	16	Rp26.500
7	12931M74L00-000	RETAINER,VALVE SPRING	16	Rp8.500
8	12932M74L00-000	COTTER,VALVE	32	Rp5.500
9	12933M51E00-000	SEAT,VALVE SPRING	16	Rp3.500
10	12934M74L00-000	SEAL,VALVE STEM	16	Rp13.000
11-29	12891-51K00-366	TAPPET (T:3.66)	0	Rp226.000
11-28	12891-51K00-364	TAPPET (T:3.64)	0	Rp232.500
11-27	12891-51K00-362	TAPPET (T:3.62)	0	Rp232.500
11-26	12891-51K00-360	TAPPET (T:3.60)	0	Rp234.500
11-25	12891-51K00-358	TAPPET (T:3.58)	0	Rp232.500
11-24	12891-51K00-356	TAPPET (T:3.56)	0	Rp226.000
11-23	12891-51K00-354	TAPPET (T:3.54)	0	Rp232.500
11-22	12891-51K00-352	TAPPET (T:3.52)	0	Rp232.500
11-40	12891-51K00-388	TAPPET (T:3.88)	0	Rp226.000
11-21	12891-51K00-350	TAPPET (T:3.50)	0	Rp232.500
11-30	12891-51K00-368	TAPPET (T:3.68)	0	Rp234.500
11-31	12891-51K00-370	TAPPET (T:3.70)	0	Rp239.500
11-32	12891-51K00-372	TAPPET (T:3.72)	0	Rp239.500
11-33	12891-51K00-374	TAPPET (T:3.74)	0	Rp237.500
11-34	12891-51K00-376	TAPPET (T:3.76)	0	Rp232.500
11-35	12891-51K00-378	TAPPET (T:3.78)	0	Rp234.500
11-36	12891-51K00-380	TAPPET (T:3.80)	0	Rp232.500
11-37	12891-51K00-382	TAPPET (T:3.82)	0	Rp234.500
11-38	12891-51K00-384	TAPPET (T:3.84)	0	Rp234.500
11-39	12891-51K00-386	TAPPET (T:3.86)	0	Rp234.500
11-10	12891-51K00-328	TAPPET (T:3.28)	0	Rp232.500
11-1	12891-51K00-310	TAPPET (T:3.10)	0	Rp227.500
11-2	12891-51K00-312	TAPPET (T:3.12)	0	Rp234.500
11-3	12891-51K00-314	TAPPET (T:3.14)	0	Rp234.500
11-4	12891-51K00-316	TAPPET (T:3.16)	0	Rp232.500
11-5	12891-51K00-318	TAPPET (T:3.18)	0	Rp232.500
11-6	12891-51K00-320	TAPPET (T:3.20)	0	Rp232.500
11-7	12891-51K00-322	TAPPET (T:3.22)	0	Rp232.500
11-8	12891-51K00-324	TAPPET (T:3.24)	0	Rp232.500
11-9	12891-51K00-326	TAPPET (T:3.26)	0	Rp234.500
11-20	12891-51K00-348	TAPPET (T:3.48)	0	Rp226.000
11-11	12891-51K00-330	TAPPET (T:3.30)	0	Rp232.500
11-12	12891-51K00-332	TAPPET (T:3.32)	0	Rp232.500
11-13	12891-51K00-334	TAPPET (T:3.34)	0	Rp232.500
11-14	12891-51K00-336	TAPPET (T:3.36)	0	Rp226.000
11-15	12891-51K00-338	TAPPET (T:3.38)	0	Rp226.000
11-16	12891-51K00-340	TAPPET (T:3.40)	0	Rp227.000
11-17	12891-51K00-342	TAPPET (T:3.42)	0	Rp220.000
11-18	12891-51K00-344	TAPPET (T:3.44)	0	Rp232.500
11-19	12891-51K00-346	TAPPET (T:3.46)	0	Rp226.000
