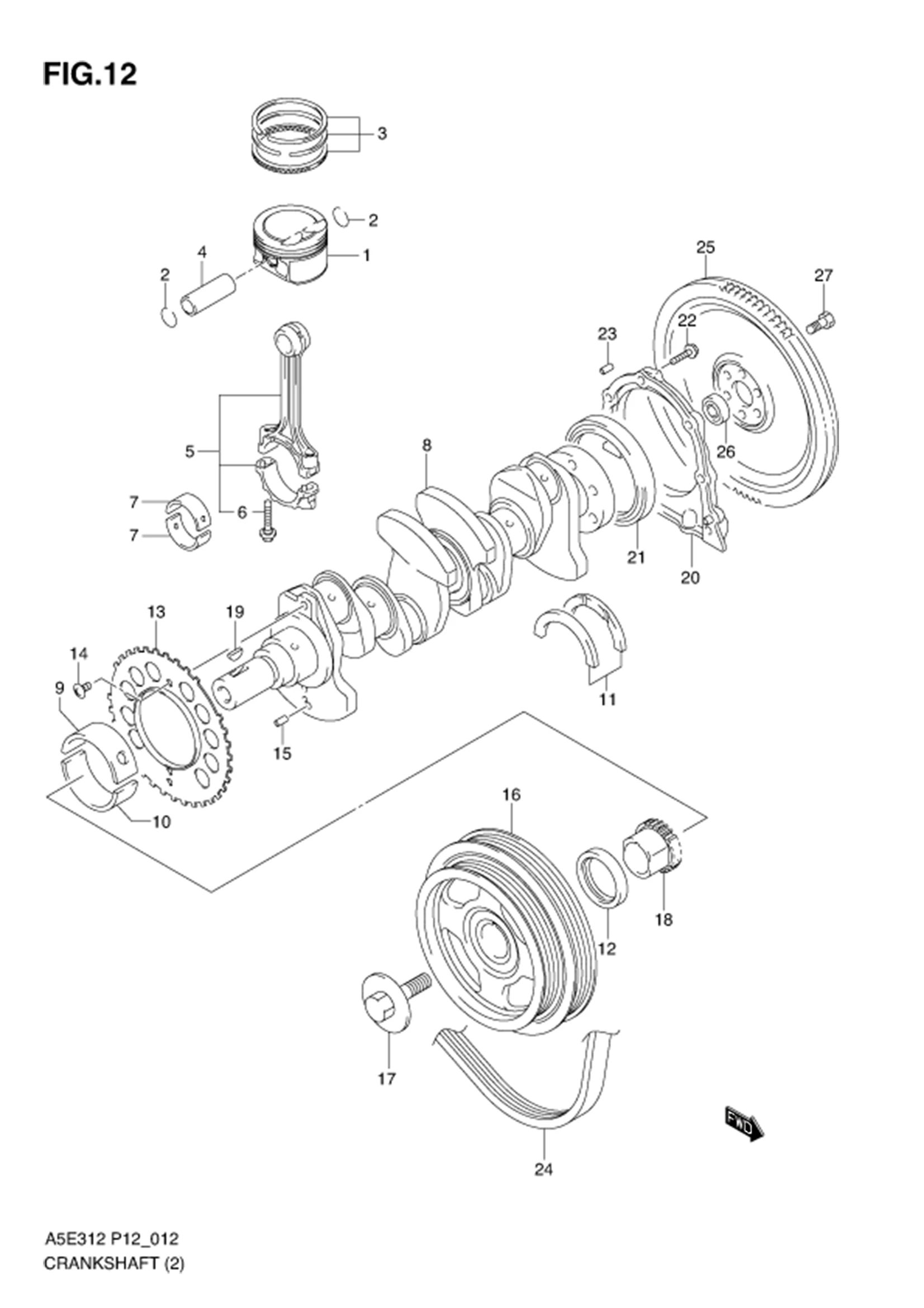

FIG.12 CRANKSHAFT (TYPE 2)

FIG.12 CRANKSHAFT (TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 12111M83KA0-000 PISTON 4 Rp166.500
2 09381-18002-000
SUB: 09381M18002-000		 CIRCLIP 8 Rp2.500
3 12140M83KA0-000 RING SET,PISTON 4 Rp131.500
4 12151M83K00-000 PIN,PISTON 4 Rp44.500
5 12160M83K00-000 CONNROD ASSY 4 Rp392.500
6 12163-69J00-000 •BOLT,CONNROD 8 Rp25.500
7-4 12181M68K00-0D0 BEARING,CONNROD (YELLOW) 8 Rp20.500 STD,T:1.5
7-6 12181M68K00-025 BEARING,CONNROD 8 Rp95.500 US:0.25,T:1.625
7-5 12181M68K00-0E0 BEARING,CONNROD (BLUE) 8 Rp22.000 STD,T:1.5
7-3 12181M68K00-0C0 BEARING,CONNROD (NON) 8 Rp20.500 STD,T:1.5
7-2 12181M68K00-0B0 BEARING,CONNROD (BLACK) 8 Rp20.500 STD,T:1.5
7-1 12181M68K00-0A0 BEARING,CONNROD (GREEN) 8 Rp20.500 STD,T:1.5
8 12221M83K20-000
SUB: 12221M83K00-000		 CRANKSHAFT 1 Rp3.601.000
9-2 12341M74L00-0B0 BEARING,CRANKSHAFT UPR (PURPLE) 5 Rp30.500 STD,T:2
9-10 12341-74L00-0EA
SUB: 12341M74L00-0EA		 BEARING,CRANKSHAFT UPR (RED/BLACK) 5 Rp61.500 US:0.25,T:2.125
9-9 12341-74L00-0DA
SUB: 12341M74L00-0DA		 BEARING,CRANKSHAFT UPR (RED/GREEN) 5 Rp61.500 US:0.25,T:2.125
9-8 12341-74L00-0CA
SUB: 12341M74L00-0CA		 BEARING,CRANKSHAFT UPR (RED/BROWN) 5 Rp61.500 US:0.25,T:2.125
9-7 12341-74L00-0BA
SUB: 12341M74L00-0BA		 BEARING,CRANKSHAFT UPR (RED/PURPLE) 5 Rp61.500 US:0.25,T:2.125
9-6 12341-74L00-0AA
SUB: 12341M74L00-0AA		 BEARING,CRANKSHAFT UPR (RED/PINK) 5 Rp59.500 US:0.25,T:2.125
9-5 12341M74L00-0E0 BEARING,CRANKSHAFT UPR (BLACK) 5 Rp30.500 STD,T:2
9-4 12341M74L00-0D0 BEARING,CRANKSHAFT UPR (GREEN) 5 Rp30.500 STD,T:2
9-3 12341M74L00-0C0 BEARING,CRANKSHAFT UPR (BROWN) 5 Rp30.500 STD,T:2
9-1 12341M74L00-0A0 BEARING,CRANKSHAFT UPR (PINK) 5 Rp30.500 STD,T:2
10-3 12345M74L00-0C0 BEARING,CRANKSHAFT LWR (BROWN) 5 Rp29.000 STD,T:2
10-10 12345-74L00-0EA
SUB: 12345M74L00-0EA		 BEARING,CRANKSHAFT LWR (RED/BLACK) 5 Rp61.000 US:0.25,T:2.125
10-9 12345-74L00-0DA
SUB: 12345M74L00-0DA		 BEARING,CRANKSHAFT LWR (RED/GREEN) 5 Rp61.000 US:0.25,T:2.125
10-8 12345-74L00-0CA
SUB: 12345M74L00-0CA		 BEARING,CRANKSHAFT LWR (RED/BROWN) 5 Rp61.000 US:0.25,T:2.125
10-7 12345-74L00-0BA
SUB: 12345M74L00-0BA		 BEARING,CRANKSHAFT LWR (RED/PURPLE) 5 Rp61.000 US:0.25,T:2.125
10-5 12345M74L00-0E0 BEARING,CRANKSHAFT LWR (BLACK) 5 Rp30.000 STD,T:2
10-4 12345M74L00-0D0 BEARING,CRANKSHAFT LWR (GREEN) 5 Rp29.000 STD,T:2
10-2 12345M74L00-0B0 BEARING,CRANKSHAFT LWR (PURPLE) 5 Rp29.000 STD,T:2
10-1 12345M74L00-0A0 BEARING,CRANKSHAFT LWR (PINK) 5 Rp29.000 STD,T:2
10-6 12345-74L00-0AA
SUB: 12345M74L00-0AA		 BEARING,CRANKSHAFT LWR (RED/PINK) 5 Rp59.000 US:0.25,T:2.125
11-1 12300-60840-000 BEARING SET,CRANK THRUST 1 Rp120.000 STD,T:2.5
11-2 12300-60840-012 BEARING SET,CRANK THRUST(US) 1 Rp147.000 OS:0.125,T:2.563
12 16141M68K00-000 SEAL,OIL (41X53X6) 1 Rp53.500
13 12222-68K00-000
SUB: 12222-51K00-000		 PLATE,SENSOR 1 Rp86.500
14 12223-69G00-000 SCREW,SENSOR PLATE 2 Rp13.500
15 09205-05006-000 PIN 1 Rp11.500
16 12610M73K10-000
SUB: 12611M68K00-000		 PULLEY,CRANKSHAFT 1 Rp713.000
17 12619-69G10-000 BOLT,CRANK PULLEY 1 Rp102.500
18 12631-54G11-000 SPROCKET,CRANKSHAFT TIMING 1 Rp439.500
19 08341M31059-000 KEY 1 Rp4.500
20 11341M51K00-000 HOUSING,OIL SEAL 1 Rp73.000
21 11342M68K00-000 SEAL (83X97X7) 1 Rp131.500
22 09103-06282-000 BOLT (6X25) 6 Rp16.500
23 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 2 Rp14.500
24 17521M68K50-000
SUB: 17521M68K00-000		 BELT,WATER PUMP (5PK895) 1 Rp86.000
25 12620-77M01-000
SUB: 12620M68K00-000		 FLYWHEEL 1 Rp766.000 MT
26 12623M68K00-000 BEARING,INPUT SHAFT 1 Rp88.000 MT
27 09100-10275-000
SUB: 09103-10305-000		 BOLT (10X18.5) 6 Rp30.500 MT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
