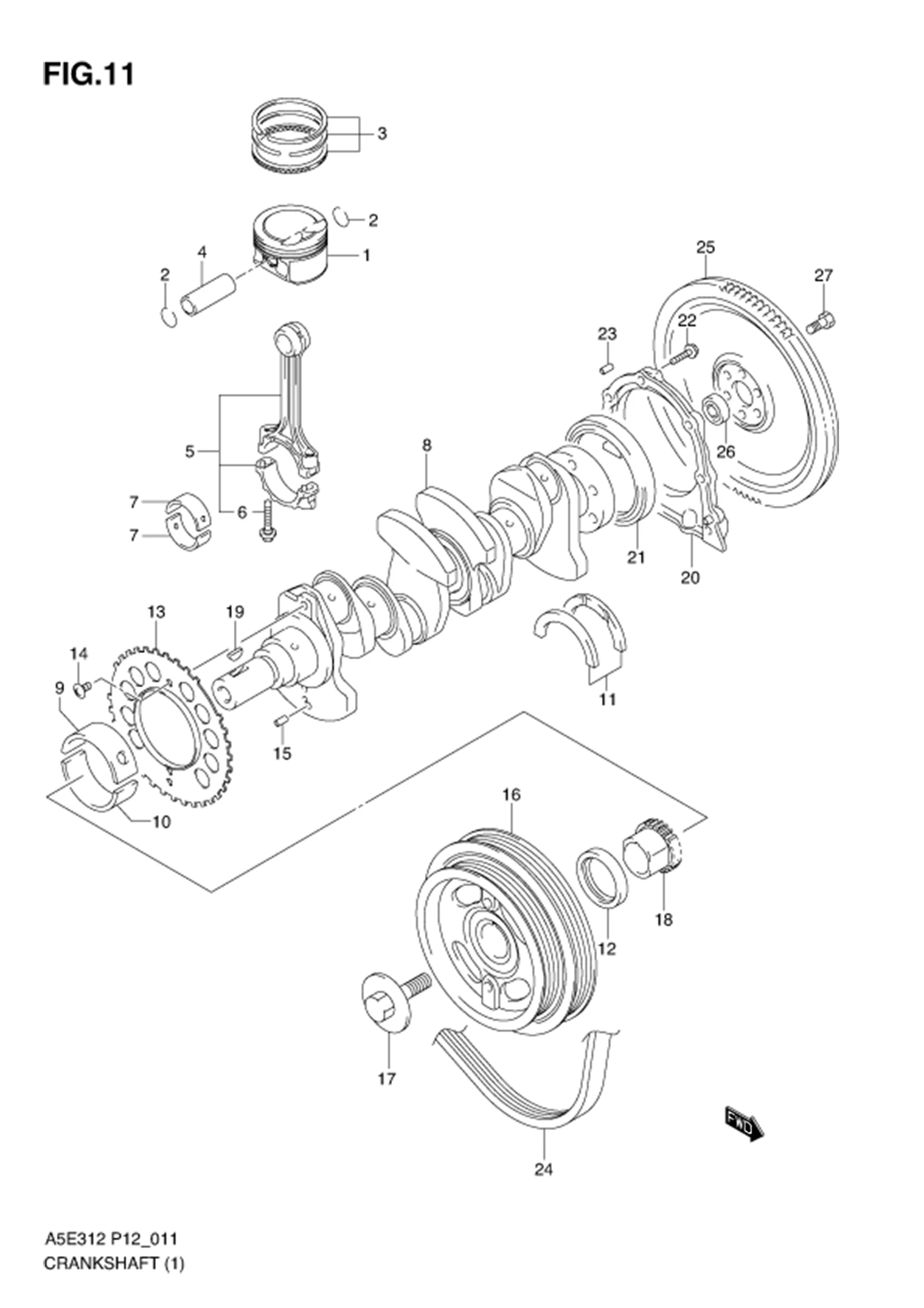

FIG.11 CRANKSHAFT (TYPE 1)

FIG.11 CRANKSHAFT (TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
1 12111M83KA0-000 PISTON 4 Rp166.500
2 09381-18002-000
SUB: 09381M18002-000		 CIRCLIP 8 Rp2.500
3 12140M83KA0-000 RING SET,PISTON 4 Rp131.500
4 12151M83K00-000 PIN,PISTON 4 Rp44.500
5 12160M83K00-000 CONNROD ASSY 4 Rp392.500
6 12163-69J00-000 •BOLT,CONNROD 8 Rp25.500
7-4 12181M68K00-0D0 BEARING,CONNROD (YELLOW) 8 Rp20.500 STD,T:1.5
7-6 12181M68K00-025 BEARING,CONNROD 8 Rp95.500 US:0.25,T:1.625
7-5 12181M68K00-0E0 BEARING,CONNROD (BLUE) 8 Rp22.000 STD,T:1.5
7-3 12181M68K00-0C0 BEARING,CONNROD (NON) 8 Rp20.500 STD,T:1.5
7-2 12181M68K00-0B0 BEARING,CONNROD (BLACK) 8 Rp20.500 STD,T:1.5
7-1 12181M68K00-0A0 BEARING,CONNROD (GREEN) 8 Rp20.500 STD,T:1.5
8 12221M83K20-000
SUB: 12221M83K00-000		 CRANKSHAFT 1 Rp3.601.000
9-2 12341M68K00-0B0 BEARING,CRANKSHAFT UPR (PURPLE) 0 Rp30.000 STD,T:2
9-10 12341M68K00-0EA BEARING,CRANKSHAFT UPR (RED/BLACK) 0 Rp144.000 US:0.25,T:2.125
9-9 12341M68K00-0DA BEARING,CRANKSHAFT UPR (RED/GREEN) 0 Rp144.000 US:0.25,T:2.125
9-8 12341M68K00-0CA BEARING,CRANKSHAFT UPR (RED/BROWN) 0 Rp136.000 US:0.25,T:2.125
9-7 12341M68K00-0BA BEARING,CRANKSHAFT UPR (RED/PURPLE) 0 Rp129.000 US:0.25,T:2.125
9-6 12341M68K00-0BA
SUB: 12341M68K00-0AA		 BEARING,CRANKSHAFT UPR (RED/PINK) 0 Rp129.000 US:0.25,T:2.125
9-5 12341M68K00-0E0 BEARING,CRANKSHAFT UPR (BLACK) 0 Rp31.500 STD,T:2
9-4 12341M68K00-0D0 BEARING,CRANKSHAFT UPR (GREEN) 0 Rp31.500 STD,T:2
9-3 12341M68K00-0C0 BEARING,CRANKSHAFT UPR (BROWN) 0 Rp30.000 STD,T:2
9-1 12341M68K00-0A0 BEARING,CRANKSHAFT UPR (PINK) 0 Rp29.500 STD,T:2
10-3 12345M68K00-0C0 BEARING,CRANKSHAFT LWR (BROWN) 0 Rp28.500 STD,T:2
10-10 12345M68K00-0EA BEARING,CRANKSHAFT LWR (RED/BLACK) 0 Rp137.000 US:0.25,T:2.125
10-9 12345M68K00-0DA BEARING,CRANKSHAFT LWR (RED/GREEN) 0 Rp137.000 US:0.25,T:2.125
10-8 12345M68K00-0CA BEARING,CRANKSHAFT LWR (RED/BROWN) 0 Rp133.500 US:0.25,T:2.125
10-7 12345M68K00-0BA BEARING,CRANKSHAFT LWR (RED/PURPLE) 0 Rp129.500 US:0.25,T:2.125
10-5 12345M68K00-0E0 BEARING,CRANKSHAFT LWR (BLACK) 0 Rp30.000 STD,T:2
10-4 12345M68K00-0D0 BEARING,CRANKSHAFT LWR (GREEN) 0 Rp30.000 STD,T:2
10-2 12345M68K00-0B0 BEARING,CRANKSHAFT LWR (PURPLE) 0 Rp28.500 STD,T:2
10-1 12345M68K00-0A0 BEARING,CRANKSHAFT LWR (PINK) 0 Rp27.500 STD,T:2
10-6 12345M68K00-0BA
SUB: 12345M68K00-0AA		 BEARING,CRANKSHAFT LWR (RED/PINK) 0 Rp129.500 US:0.25,T:2.125
11-1 12300-60840-000 BEARING SET,CRANK THRUST 1 Rp120.000 STD,T:2.5
11-2 12300-60840-012 BEARING SET,CRANK THRUST(US) 1 Rp147.000 OS:0.125,T:2.563
12 16141M68K00-000 SEAL,OIL (41X53X6) 1 Rp53.500
13 12222-68K00-000
SUB: 12222-51K00-000		 PLATE,SENSOR 1 Rp86.500
14 12223-69G00-000 SCREW,SENSOR PLATE 2 Rp13.500
15 09205-05006-000 PIN 1 Rp11.500
16 12610-73K00-000 PULLEY,CRANKSHAFT 1 Rp1.448.000
17 12619-69G10-000 BOLT,CRANK PULLEY 1 Rp102.500
18 12631-54GA1-000
SUB: 12631-54G00-000		 SPROCKET,CRANKSHAFT TIMING 1 Rp171.500
19 08341M31059-000
SUB: 08341-31059-000		 KEY 1 Rp4.500
20 11341M51K00-000
SUB: 11341-51K00-000		 HOUSING,OIL SEAL 1 Rp73.000
21 11342M68K00-000 SEAL (83X97X7) 1 Rp131.500
22 09103-06282-000 BOLT (6X25) 6 Rp16.500
23 04221-06129-000 PIN (4X6X11) 2 Rp12.500
24 17521M68K50-000
SUB: 17521M68K00-000		 BELT,WATER PUMP (5PK895) 1 Rp86.000
25 12620-77M01-000
SUB: 12620M68K00-000		 FLYWHEEL 1 Rp766.000
26 12623M68K00-000 BEARING,INPUT SHAFT 1 Rp88.000
27 09100-10275-000
SUB: 09103-10305-000		 BOLT (10X18.5) 6 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
