Smash FD 110 XCDF

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 2 CRANKCASE COVERFIG. 7 FRAME COVERFIG. 8 HANDLEBARFIG. 9 HANDLE COVERFIG. 10 HANDLE LEVERFIG. 18 REAR SWING ARMFIG. 21 REAR WHEELFIG. 22 STRIPPING SET

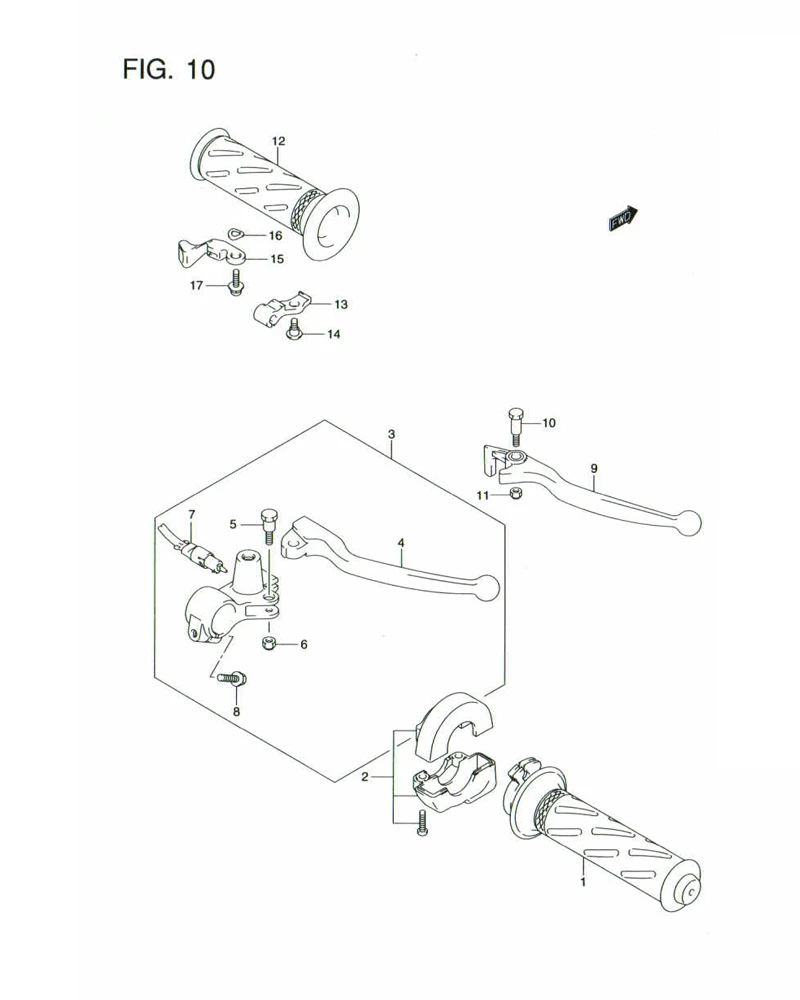

FIG. 10 HANDLE LEVER

FIG. 10 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-09G10-000
SUB: 57110B09G10N000		 GRIP, THROTTLE 1 Rp42.500
2 57100-09G11-000
SUB: 57100B09G10N000		 CASE ASSY, THROTTLE 1 Rp19.500
3-1 57300B09610N000 LEVER ASSY, RH 1 -
3-2 57300-21D00L000 LEVER ASSY, RH 1 -
4 DISCONTINUE
SUB: 57421B09G10N000		 LEVER, BRAKE 1 -
5 DISCONTINUE
SUB: 57431B09G00N000		 BOLT, PIVOT 1 -
6 DISCONTINUE
SUB: 08319-21063-000		 NUT 1 -
7 57470-10J40-000
SUB: 57470B09G00N000		 SWITCH ASSY, BRAKE 1 Rp46.500
8 01550-0625B-000
SUB: 01550-06253-000		 BOLT, HOLDER 1 Rp15.000
9 57421-21D10-100
SUB: 57421-21D10L000		 LEVER, BRAKE 1 Rp35.000
10 09111-09G00-000 BOLT 1 -
11 DISCONTINUE
SUB: 08319-21063-000		 NUT 1 -
12 57211-09G00-000
SUB: 57211B09G00N000		 GRIP, LH 1 Rp30.000
13 DISCONTINUE
SUB: 58711-09G00-000		 HOLDER, STARTER CABLE 1 -
14 09139-05057-000 SCREW 1 Rp6.500
15 58721-23F01-000
SUB: 58721-23F00-000		 LEVER, STARTER 1 Rp10.500
16 DISCONTINUE
SUB: 09164-07001-000		 WASHER 1 -
17 02212-75163-000 SCREW 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
