Preview Engine Transmission Electrical Suspension Body

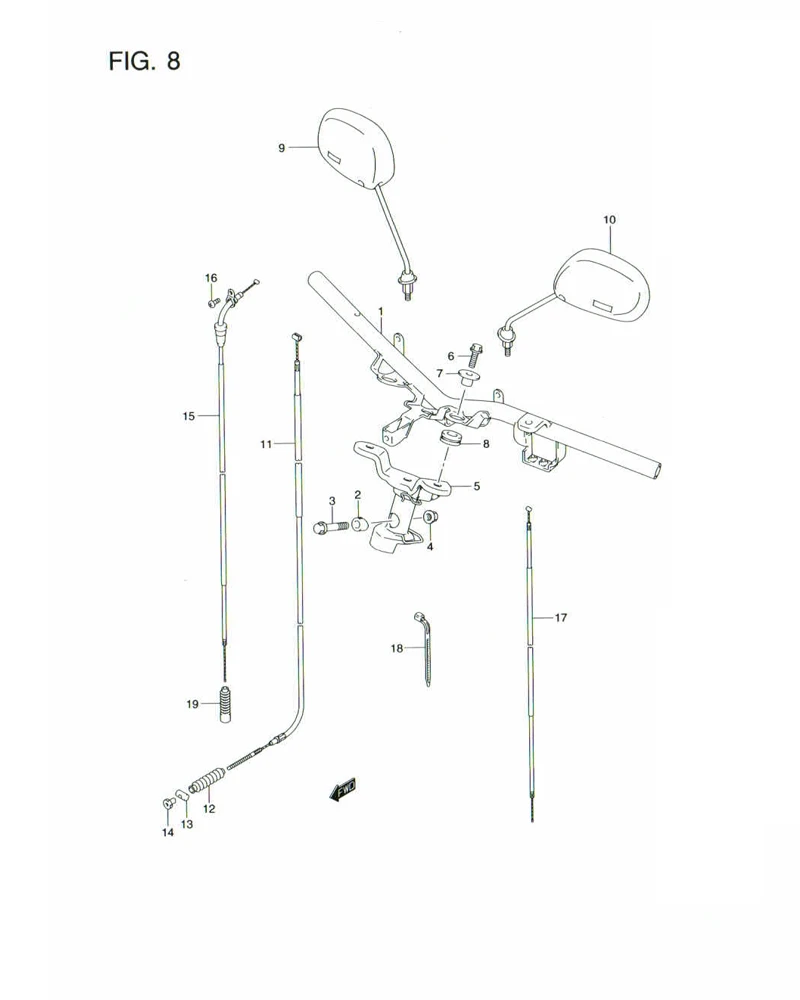

No	No. Part	Description	Qty	Price Per Pcs
1-2	DISCONTINUE SUB: 56110B09G10N000	HANDLEBAR	1	-
1-1	DISCONTINUE SUB: 56110B09G00N000	HANDLEBAR	1	-
2	51358-09G00-000	STOPPER, HANDLE	1	Rp8.000
3	09103-10126-000	BOLT	1	Rp28.500
4	08319-3110A-000 SUB: 08319-31103-000	NUT	1	Rp4.500
5-1	DISCONTINUE SUB: 51310B09G00N000	BRACKET, FORK UPPER	1	-
5-2	DISCONTINUE SUB: 51310B09G10N000	BRACKET, FORK UPPER	1	-
6	01550-0825A-000 SUB: 01550-08253-000	BOLT	3	Rp3.500
7	DISCONTINUE SUB: 56243-09G00-000	SPACER	3	-
8	DISCONTINUE SUB: 56247-09G00-000	CUSHION	3	-
9	56500-09G00-S01 SUB: 56500B09G00NS01	MIRROR ASSY, REAR VIEW LH	1	Rp76.500
10	56600-09G00-S01 SUB: 56600B09G00NS01	MIRROR ASSY, REAR VIEW LH	1	Rp76.500
11	58110B09G00N000	CABLE, FRONT BRAKE	1	-
12	09287-07001-000	SEAL	1	Rp12.000
13	DISCONTINUE SUB: 09209-10001-000	PIN	1	-
14	09150-05101-000	NUT	1	Rp18.000
15	58300B09G11N"	CABLE AASY, THROTTLE	1	-
16	02112-0512A-000 SUB: 02112-05123-000	SCREW	1	Rp2.500
17	58410B0900N-000	CABLE, STARTER	1	-
18	DISCONTINUE SUB: 09407-25401L000	CLAMP	1	-
19	58333-35401-000 SUB: 58333-35400-000	SEAL, DUST	1	Rp35.500
