Smash FD 110 XCDF

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 2 CRANKCASE COVERFIG. 7 FRAME COVERFIG. 8 HANDLEBARFIG. 9 HANDLE COVERFIG. 10 HANDLE LEVERFIG. 18 REAR SWING ARMFIG. 21 REAR WHEELFIG. 22 STRIPPING SET

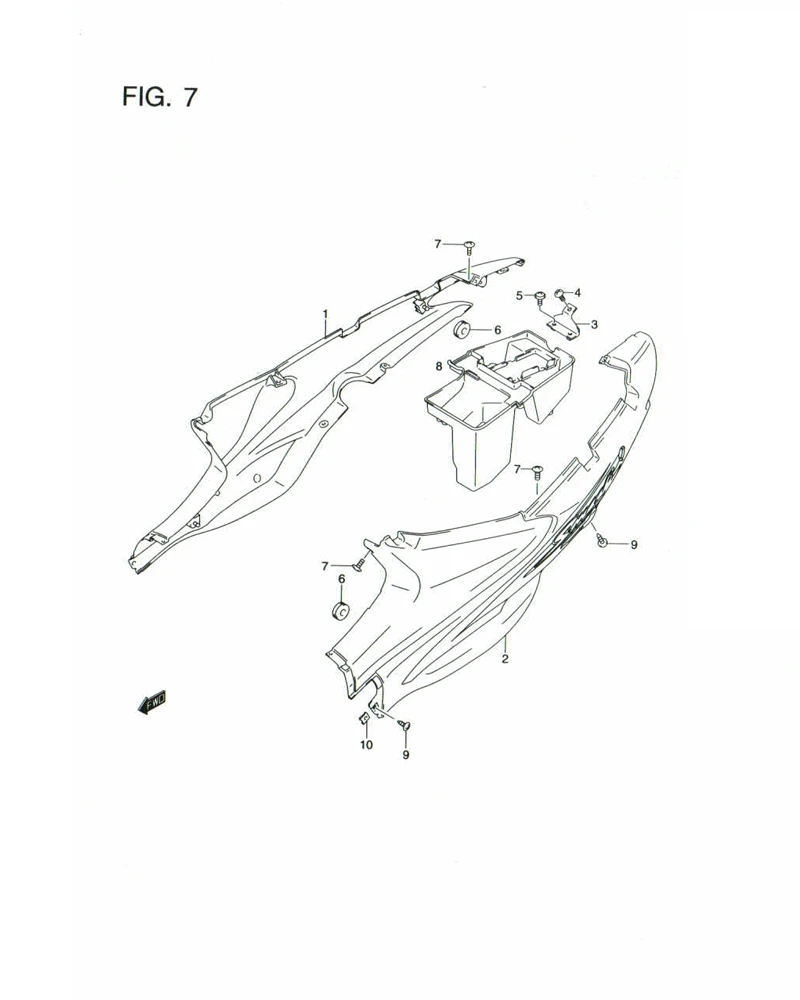

FIG. 7 FRAME COVER

FIG. 7 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-1 47111B09G00N000 COVER, RH 1 -
1-2 47111B09G10N000 COVER, RH 1 -
2-1 47211B09G00N000 COVER, LH 1 -
2-2 47211B09G10N000 COVER, LH 1 -
3 DISCONTINUE
SUB: 47140B09G00N000		 BRACKET, REAR 1 -
4 02142-0516B-000
SUB: 02142B05163N000		 SCREW 1 Rp4.000
5 DISCONTINUE
SUB: 09136B06081N000		 SCREW, UPPER 2 -
6 09320-08018L000 CUSHION 2 -
7 02142-0616B-000
SUB: 02142-06163-000		 SCREW 3 Rp5.500
8 47341-09G01-000
SUB: 47341B09G00N000		 COVER, UPPER 1 Rp35.000
9 03541-0516A-000
SUB: 03541-05163-000		 SCREW 7 Rp3.500
10 09148-05038-000 NUT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
