Smash FD 110 XCDF

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 2 CRANKCASE COVER FIG. 7 FRAME COVER FIG. 8 HANDLEBAR FIG. 9 HANDLE COVER FIG. 10 HANDLE LEVER FIG. 18 REAR SWING ARM FIG. 21 REAR WHEEL FIG. 22 STRIPPING SET

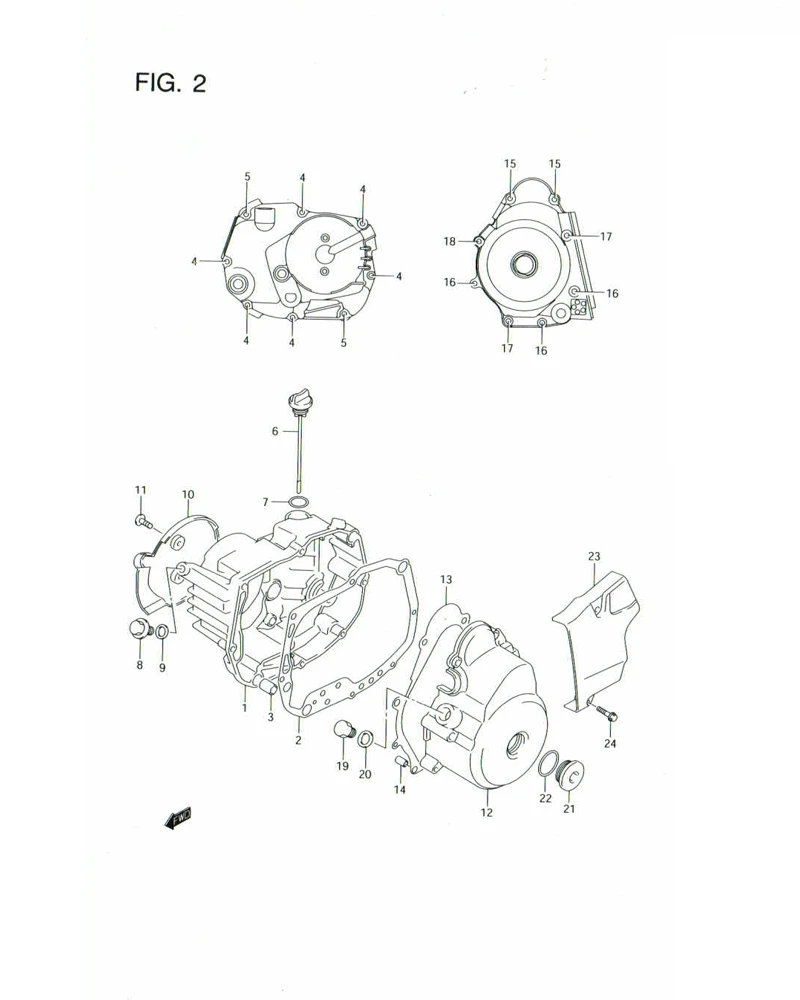

FIG. 2 CRANKCASE COVER

No	No. Part	Description	Qty	Price Per Pcs
1-2	DISCONTINUE SUB: 11341B09G20N000	COVER, CLUTCH WARM SILVER	1	-
1	11341-09G01-000 SUB: 11341B09G00N000	COVER, CLUTCH BLACK	1	Rp378.000
2	11482-09G00-001 SUB: 11482B09G00N000	GASKET, CLUTCH COVER	1	Rp14.500
3	04211M13189-000 SUB: 04211-13189-000	PIN	2	Rp9.000
4	01547-0630A-000 SUB: 01547-06303-000	SCREW	6	Rp6.500
5	01547-0640B-000 SUB: 01547-06403-000	SCREW	2	Rp7.000
6	11971-09403-000	GAUGE, OIL LEVEL	1	Rp46.000
7	09280-17003-000	O RING	1	Rp2.000
8	01550-0812A-000 SUB: 01550-08123-000	PLUG, OIL CHECK	1	Rp3.500
9	09168-08015-000	GASKET, CLUTCH COVER	1	Rp2.000
10-1	DISCONTINUE SUB: 11383B23F00N000	CAP, CLUTCH COVER BLACK	1	-
10-2	DISCONTINUE SUB: 11383B23F10N000	CAP, CLUTCH COVER WARM SILVER	1	-
11	02142-0508A-000 SUB: 02142-05083-000	SCREW, CAP	2	Rp3.500
12-2	DISCONTINUE SUB: 11351B23F11N000	COVER MAGNETO WARM SILVER	1	-
12-1	DISCONTINUE SUB: 11351B23F00N000	COVER MAGNETO BLACK	1	-
13	11483-09G00-001 SUB: 11483B09G00N000	GASKET MAGNETO COVER	1	Rp13.500
14	04211-09149-000	PIN	2	Rp3.000
15	01547-0620B-000 SUB: 01547-06203-000	SCREW	2	Rp6.500
16	01547-0630A-000 SUB: 01547-06303-000	SCREW	3	Rp6.500
17	01547-0640B-000 SUB: 01547-06403-000	SCREW	2	Rp7.000
18	01547-0650A-000 SUB: 01547-06503-000	SCREW	1	Rp7.000
19	09247-12104-000	PLUG, TOP, 12X10	1	Rp17.500
20	09168-12002-000	GASKET, 12.1X16.2X1.2	1	Rp10.000
21-1	DISCONTINUE SUB: 09259-26014-000	PLUG, HOLE, BLACK	1	-
21-2	DISCONTINUE SUB: 09259B26014N000	PLUG, HOLE WARM SILVER	1	-
22	09280-22008-000	O RING	1	Rp3.500
23-1	DISCONTINUE SUB: 11361B23F01N000	COVER ENGINE SPROCKET BLACK	1	-
23-2	DISCONTINUE SUB: 11361B23F11N000	COVER ENGINE SPROCKET WARM SILVER	1	-
24	01547-0630A-000 SUB: 01547-06303-000	SCREW	2	Rp6.500
