Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

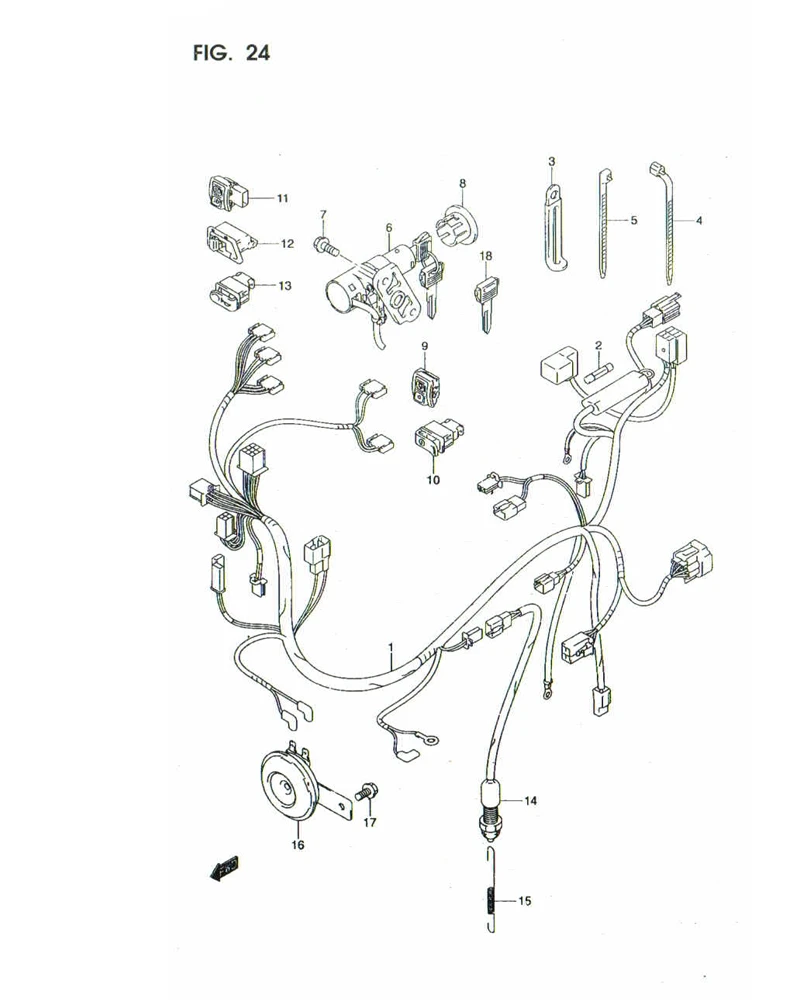

No	No. Part	Description	Qty	Price Per Pcs
1	36610-09G11-000 SUB: 36610B09G10N000	HARNESS WIRING	1	Rp566.500
2	09481-10001-000	.FUSE (10A)	1	Rp10.500
3-1	09404-06429-000	CLAMP (L:60)	1	Rp15.000
3-2	DISCONTINUE SUB: 09404-06433-000	CLAMP (L:95)	1	-
3-3	09404-06417-000	CLAMP (L:62)	1	-
4-1	36990-25G00-000 SUB: 09407-11401-000	CLAMP (L:95)	1	Rp13.000
4-2	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	1	Rp13.000
4-3	09407-18402-000	CLAMP (L:165)	1	Rp8.000
4-4	DISCONTINUE SUB: 09407-25401L000	CLAMP (L:235)	3	-
5	09407-30401L000	CLAMP (L:300)	1	-
6	37100-09G00-000 SUB: 37100B09G00N000	LOCK ASSY, STEERING	1	Rp141.500
7	01550-0616A-000 SUB: 01550-06163-000	BOLT	2	Rp3.500
8	37155-31C00-000	CAP, STEERING LOCK	1	Rp13.500
9	37340B9G00N-000	SWITCH ASSY, LIGHTING	1	-
10	37310-09G30-000 SUB: 37310B10E00N000	SWITCH ASSY, STARTER	1	Rp27.500
11	37420-10E10-000 SUB: 37420B10E00N000	SWITCH ASSY, DIMMER	1	Rp19.500
12	37510-10E00-000 SUB: 37510B10E00N000	SWITCH ASSY, TURNASIGNAL	1	Rp24.500
13	37520-09G40-000 SUB: 37520B10E00N000	SWITCH ASSY, HORN	1	Rp25.500
14	37740-35390-000 SUB: 37740-35390L000	SWITCH ASSY, STOP LAMP	1	Rp17.000
15	09443-06083-000	SPRING	1	Rp4.000
16	38500-09G00-000 SUB: 38500B09G00N000	HORN ASSY	1	Rp58.000
17	01550-0812A-000 SUB: 01550-08123-000	BOLT	1	Rp3.500
18-1	DISCONTINUE SUB: 37146-03A00-000	KEY, BLANK (TYPE:C)	1	-
18-2	DISCONTINUE SUB: 37146-03A10-000	KEY, BLANK (TYPE:D)	1	-
18-3	37146-03A20-000	KEY, BLANK (TYPE:E)	1	Rp76.500
18-4	37146-03A30-000	KEY, BLANK (TYPE:F)	1	Rp77.500
