SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18 MAGNETOFIG. 19 BATTERYFIG. 20 ELECTRICALFIG. 21 SPEEDOMETERFIG. 22 HEADLAMP / FR TURNSIGNAL LAMPFIG. 23 REAR COMBINATION LAMPFIG. 24 WIRING HARNESS

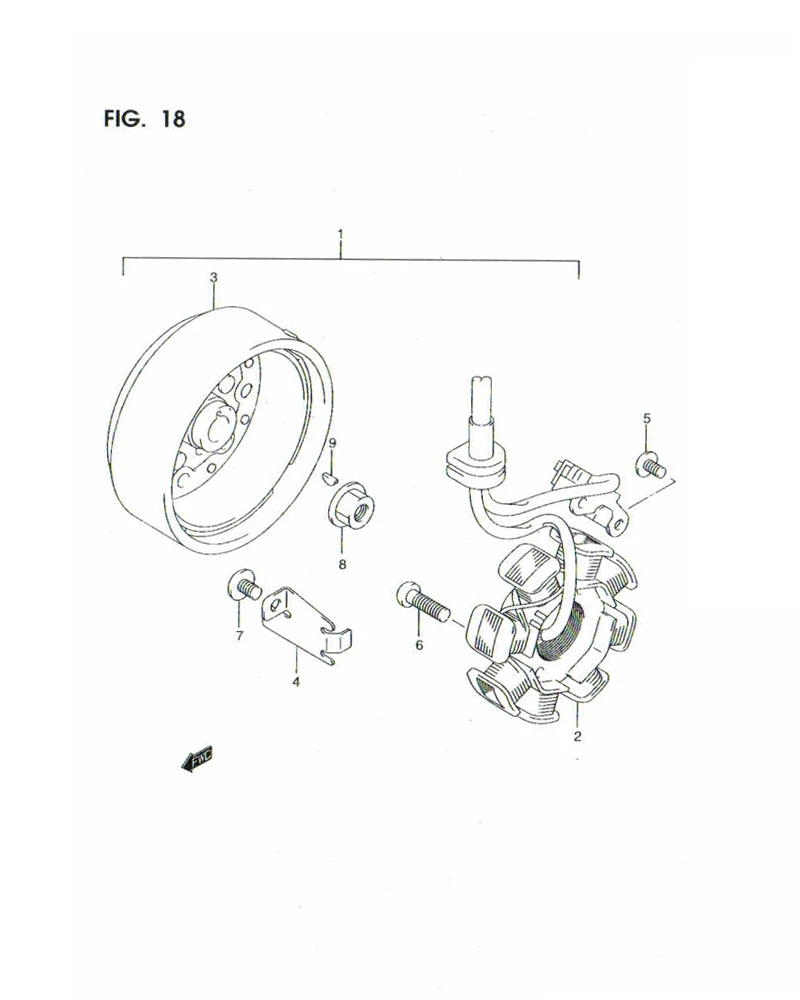

FIG. 18 MAGNETO

FIG. 18 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 32100B09G00N000		 MAGNETO ASSY 1 -
2 32101B30D51N000 .STARTOR ASSY 1 -
3 32102B09G00N000 .ROTOR 1 -
4 DISCONTINUE
SUB: 32371-30D00L000		 .CLAMP, MAGNETO LEAD 1 -
5 DISCONTINUE
SUB: 02112-05103-000		 .SCREW, SENSOR 2 -
6 02112-0620A-000
SUB: 02112-06203-000		 .SCREW, MAGENTO STATOR 2 Rp4.000
7 02142-0610A-000
SUB: 02142-06103-000		 .SCREW, MAGNETO LEAD CLAMP 1 Rp3.500
8 08316-1012A-000
SUB: 08316-10123-000		 .NUT, MAGNETO ROTOR 1 Rp6.500
9 08341-31039-000 .KEY, MAGNETO ROTOR 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
