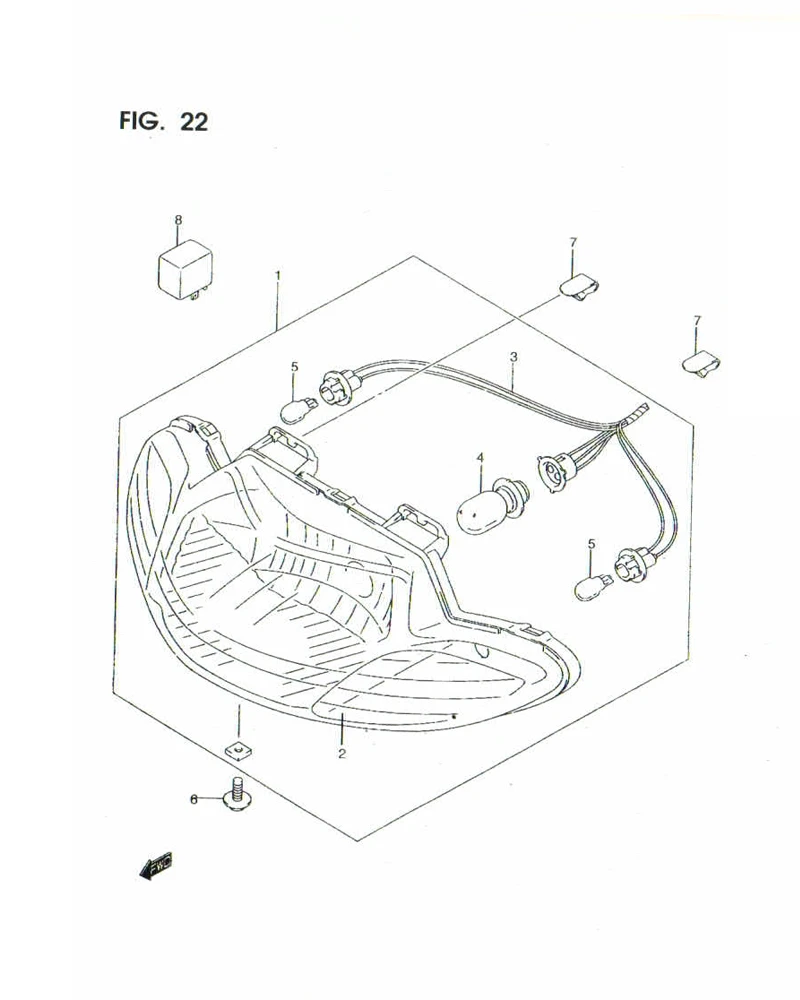

FIG. 22 HEADLAMP / FR TURNSIGNAL LAMP

FIG. 22 HEADLAMP / FR TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 35100B09G00N000		 HEADLAMP ASSY 1 -
2 35121-09G00-000
SUB: 35121B09G00N000		 .UNIT HEADLAMP 1 Rp125.500
3 35171-09G00-000
SUB: 35171B09G00N000		 .SOCKET 1 Rp15.500
4 09471-12213-000
SUB: 09471B12213N000		 .BULB, 12V32/32W 1 Rp35.500
5 09471B12114N000 .BULB, 12V, 10W 2 -
6 09136-05051-000 SCREW, HEADLAMP 1 Rp6.500
7 09148-23F00N000 CLIP 2 -
8 38610-35491-000
SUB: 38610B35491N000		 RELAY ASSY, TURN SIGNAL 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
