SMASH FD 110 XCD

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 18 MAGNETOFIG. 19 BATTERYFIG. 20 ELECTRICALFIG. 21 SPEEDOMETERFIG. 22 HEADLAMP / FR TURNSIGNAL LAMPFIG. 23 REAR COMBINATION LAMPFIG. 24 WIRING HARNESS

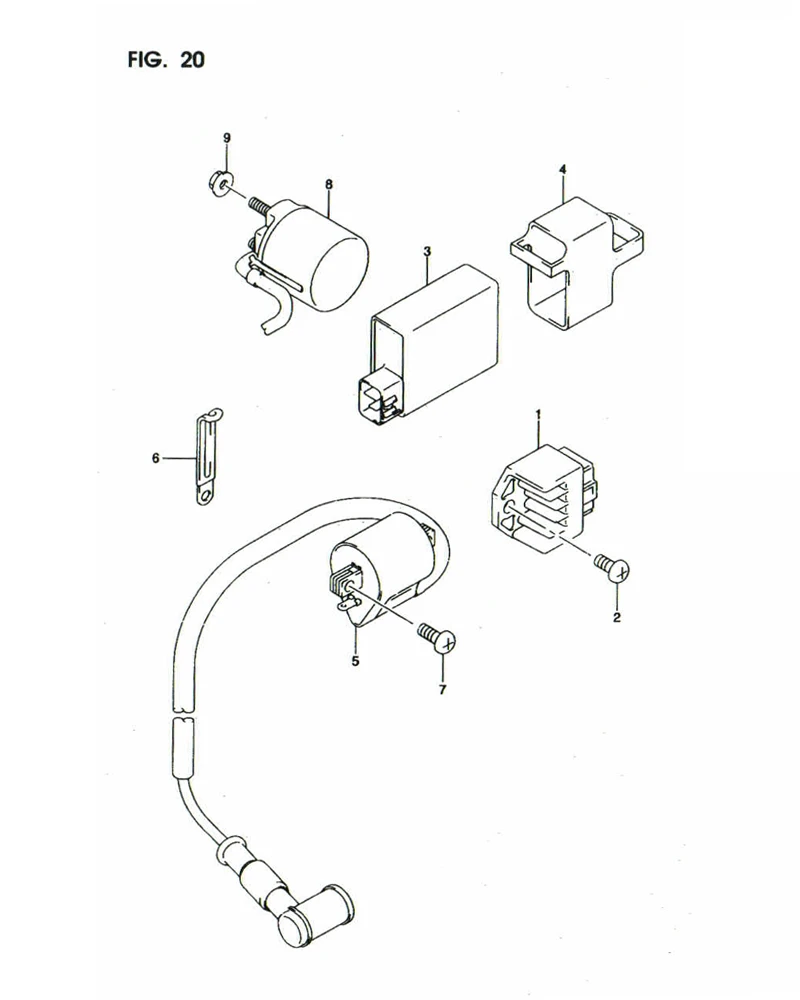

FIG. 20 ELECTRICAL

FIG. 20 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 32800-41H01-000
SUB: 32800B47E00N000		 RECTIFIER ASSY 1 Rp117.500
2 02112-0612A-000
SUB: 02112-06123-000		 SCREW 1 Rp3.500
3 DISCONTINUE
SUB: 32900B09G20N000		 CDI UNIT 1 -
4 32980-28F00-000
SUB: 32980B28F00N000		 CUSHION, CDI UNIT 1 Rp33.000
5 33410-20G01-000
SUB: 33410B30D20N000		 COILASSY, IGNITION 1 Rp74.000
6 09404-06429-000 CLAMP, HIGH TENSION CORD 1 Rp15.000
7 02112-0616A-000
SUB: 02112-06163-000		 SCREW, IGNITION COIL 2 Rp3.500
8 31800-31C00-000
SUB: 31800B31C00N000		 RELAY ASSY, STARTING MOTOR 1 Rp77.000
9 08361-3506A-000
SUB: 08361-35068-000		 NUT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
