New XL7 Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 400A FRONT SUSPENSIONFIG. 408A FRONT STABILIZERFIG. 410A FRONT DRIVE SHAFT (5MT)FIG. 410B FRONT DRIVE SHAFT (4AT)FIG. 418A FRONT SUSPENSION FRAMEFIG. 430A REAR SUSPENSIONFIG. 449E ROAD WHEEL/TIRE (XL7)FIG. 451B STEERING WHEEL (GL)FIG. 451C STEERING WHEEL (GX)FIG. 453A STEERING COLUMN (GL)FIG. 453B STEERING COLUMN (GX)FIG. 480A STEERING UNITFIG. 490A PEDAL/PEDAL BRACKET (5MT)FIG. 490B PEDAL/PEDAL BRACKET (4AT)FIG. 500A BRAKE MASTER CYLINDER (5MT:N_ESP)FIG. 500B BRAKE MASTER CYLINDER (5MT:W_ESP)FIG. 500C BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 500D BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 50CA FRONT BRAKE PIPING (N_ESP)FIG. 50CB FRONT BRAKE PIPING (W_ESP)FIG. 50DA REAR BRAKE PIPINGFIG. 510A ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A FRONT WHEEL BRAKEFIG. 530A REAR WHEEL BRAKEFIG. 542A PARKING BRAKEFIG. 570B FRONT HOOD PANEL (XL7)FIG. 572A TIRE CARRIER

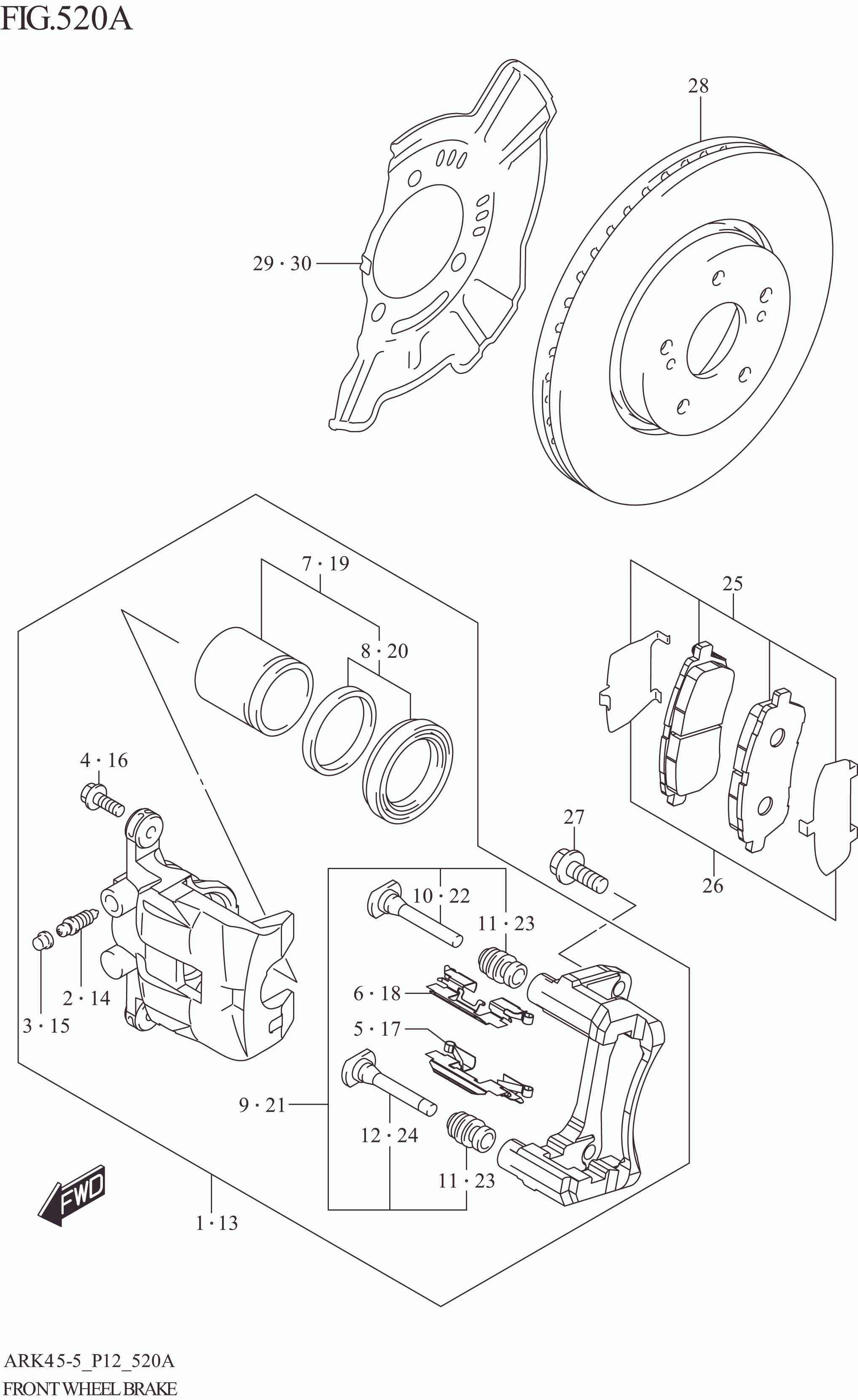

FIG. 520A FRONT WHEEL BRAKE

FIG. 520A FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55101-73R00-999 CALIPER,FR BRAKE,R 1 Rp1.794.000
2 55151-61J00-000 .SCREW,BLEEDER 1 Rp22.000
3 55156-61J00-000 .CAP,BLEEDER 1 Rp7.500
4 55206-61J00-001 .BOLT 2 Rp17.500
5 55234-59R00-000 .CLIP, PAD 1 Rp79.500
6 55235-59R00-000 .CLIP, PAD 1 Rp79.500
7 55840-59R00-000 .PISTON/SEAL SET 1 Rp240.500
8 55830-59R00-000 ..SEAL SET, PISTON 1 Rp139.500
9 55850-73R00-000 .SLIDE PIN,BOOT SET 1 Rp135.000
10 55192-61J00-001 ..PIN,GUIDE 1 Rp37.500
11 55201-61J00-000 ..BOOT,PIN 2 Rp24.500
12 55855-73R00-000 ..LOCK PIN SET 1 Rp82.500
13 55102-73R00-999 CALIPER,FR BRAKE,L 1 Rp1.794.000
14 55151-61J00-000 .SCREW,BLEEDER 1 Rp22.000
15 55156-61J00-000 .CAP,BLEEDER 1 Rp7.500
16 55206-61J00-001 .BOLT 2 Rp17.500
17 55234-59R00-000 .CLIP, PAD 1 Rp79.500
18 55235-59R00-000 .CLIP, PAD 1 Rp79.500
19 55840-59R00-000 .PISTON/SEAL SET 1 Rp240.500
20 55830-59R00-000 ..SEAL SET, PISTON 1 Rp139.500
21 55850-73R00-000 .SLIDE PIN,BOOT SET 1 Rp135.000
22 55192-61J00-001 ..PIN,GUIDE 1 Rp37.500
23 55201-61J00-000 ..BOOT,PIN 2 Rp24.500
24 55855-73R00-000 ..LOCK PIN SET 1 Rp82.500
25 55810-59R00-000 PAD SET 1 Rp543.500
26 55820-61J00-000 .SHIM SET,ANTI NOISE 1 Rp37.000
27 09117-12012-000 BOLT (12X32) 4 Rp38.500
28 55311-72R10-000 DISC,FR BRAKE 2 Rp421.500
29 55321-72R00-000 COVER,BRAKE DISC DUST,R 1 Rp39.000
30 55322-72R00-000 COVER,BRAKE DISC DUST,L 1 Rp39.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
