New XL7 Hybrid

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 400A FRONT SUSPENSION FIG. 408A FRONT STABILIZER FIG. 410A FRONT DRIVE SHAFT (5MT)FIG. 410B FRONT DRIVE SHAFT (4AT)FIG. 418A FRONT SUSPENSION FRAME FIG. 430A REAR SUSPENSION FIG. 449E ROAD WHEEL/TIRE (XL7)FIG. 451B STEERING WHEEL (GL)FIG. 451C STEERING WHEEL (GX)FIG. 453A STEERING COLUMN (GL)FIG. 453B STEERING COLUMN (GX)FIG. 480A STEERING UNIT FIG. 490A PEDAL/PEDAL BRACKET (5MT)FIG. 490B PEDAL/PEDAL BRACKET (4AT)FIG. 500A BRAKE MASTER CYLINDER (5MT:N_ESP)FIG. 500B BRAKE MASTER CYLINDER (5MT:W_ESP)FIG. 500C BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 500D BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 50CA FRONT BRAKE PIPING (N_ESP)FIG. 50CB FRONT BRAKE PIPING (W_ESP)FIG. 50DA REAR BRAKE PIPING FIG. 510A ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A FRONT WHEEL BRAKE FIG. 530A REAR WHEEL BRAKE FIG. 542A PARKING BRAKE FIG. 570B FRONT HOOD PANEL (XL7)FIG. 572A TIRE CARRIER

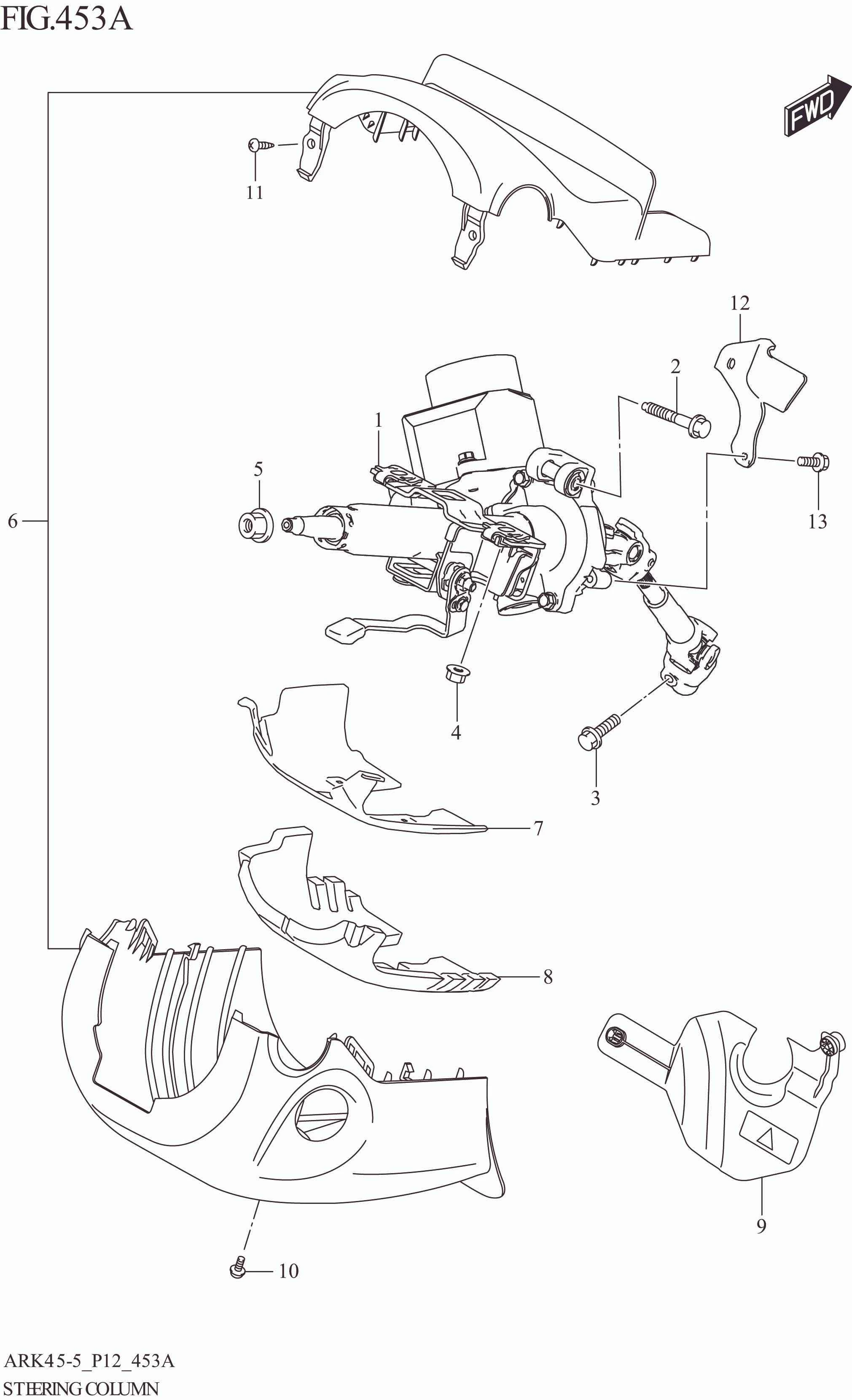

FIG. 453A STEERING COLUMN (GL)

FIG. 453A STEERING COLUMN (GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	48200-86TB0-000	COLUMN ASSY,STEERING	1	Rp8.515.000
2	48215-72R00-000	BOLT,STRG COLUMN LWR	1	Rp7.000
3	09117-08107-000	BOLT (8X30)	1	Rp22.000
4	08316-1008A-000	NUT	2	Rp3.500
5	08316-1012A-000	NUT	1	Rp6.500
6	48400-52R00-5PK	COVER ASSY,STRG COLUMN (BLACK)	1	Rp62.000
7	48431-52R00-000	PLATE,KNEE PROTECTOR	1	Rp20.500
8	48435-52R00-000	PAD,STRG COLUMN COVER	1	Rp26.500
9	48481-52R00-000	COVER,STRG JOINT	1	Rp19.000
10	09136M05030-000	SCREW (5X12)	1	Rp4.500
11	03241-0512A-000	SCREW	2	Rp3.500
12	48254-73R00-000	BRACKET,PEDAL RELEASE	1	Rp69.000
13	02162-0616A-000	SCREW (6X16)	2	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
