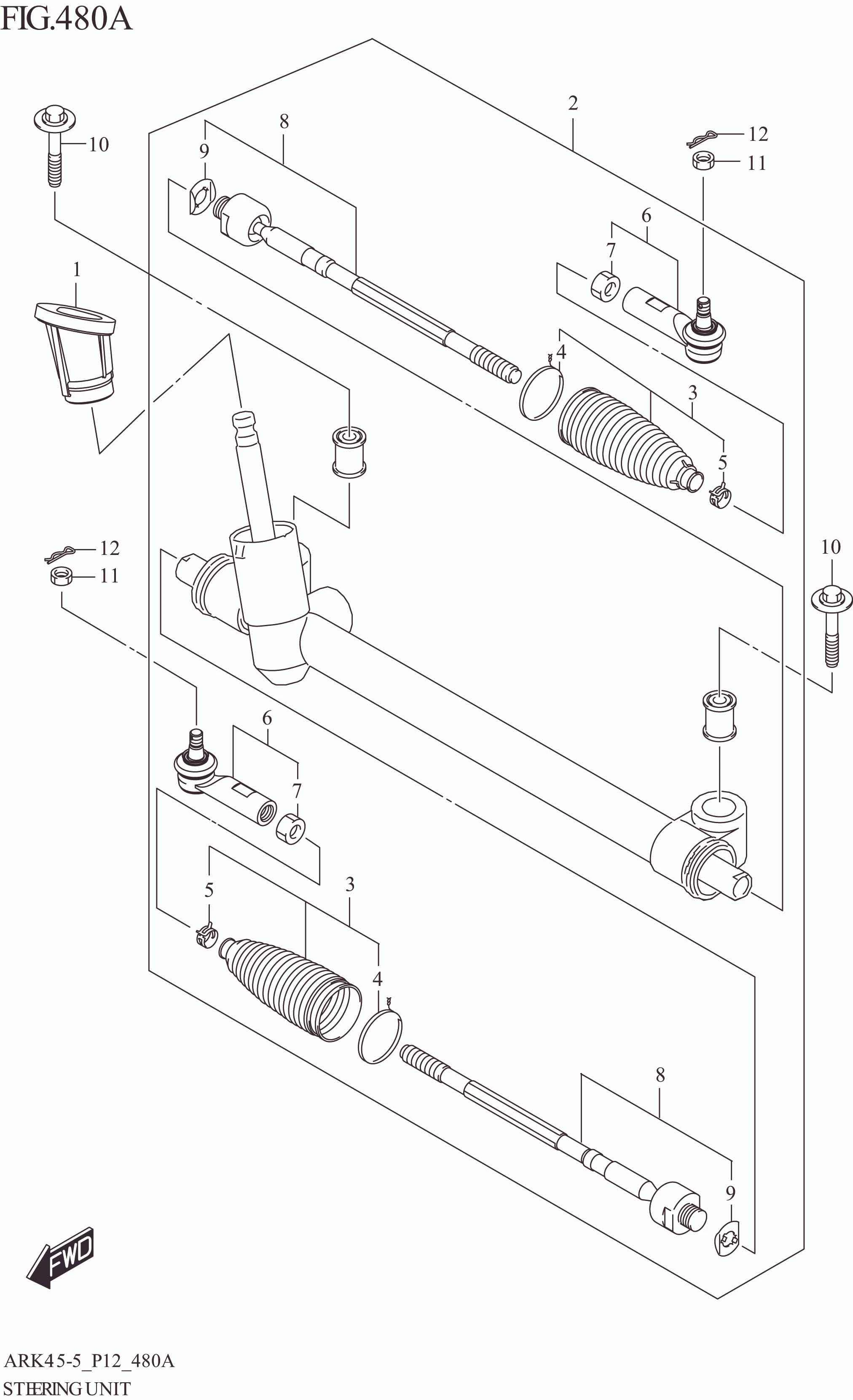

FIG. 480A STEERING UNIT

FIG. 480A STEERING UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	48450-52R00-000	PACKING,STRG GEAR	1	Rp49.000
2	48500-73R01-000	BOX ASSY,STRG GEAR	1	Rp2.477.500
3	48571-73R00-000	.BOOT,STRG	2	Rp375.000
4	48575-73R00-000	..WIRE,STRG	2	Rp74.500
5	48871-73R00-000	..CLIP,RACK BOOT	2	Rp60.000
6	48810-73R00-000	.END,STRG TIE-ROD	2	Rp200.500
7	48817-73R00-000	..NUT,TIE-ROD,STRG	2	Rp61.500
8	48830-73R01-000	.TIE-ROD,STRG	2	Rp511.000
9	48841-73R00-000	..WASHER,STRG TIE-ROD LOCK	2	Rp54.000
10	09116-12010-000	BOLT (12X77)	2	Rp60.000
11	09140-12039-000	NUT (M12)	2	Rp6.500
12	09385-12002-000	PIN,SNAP	2	Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
