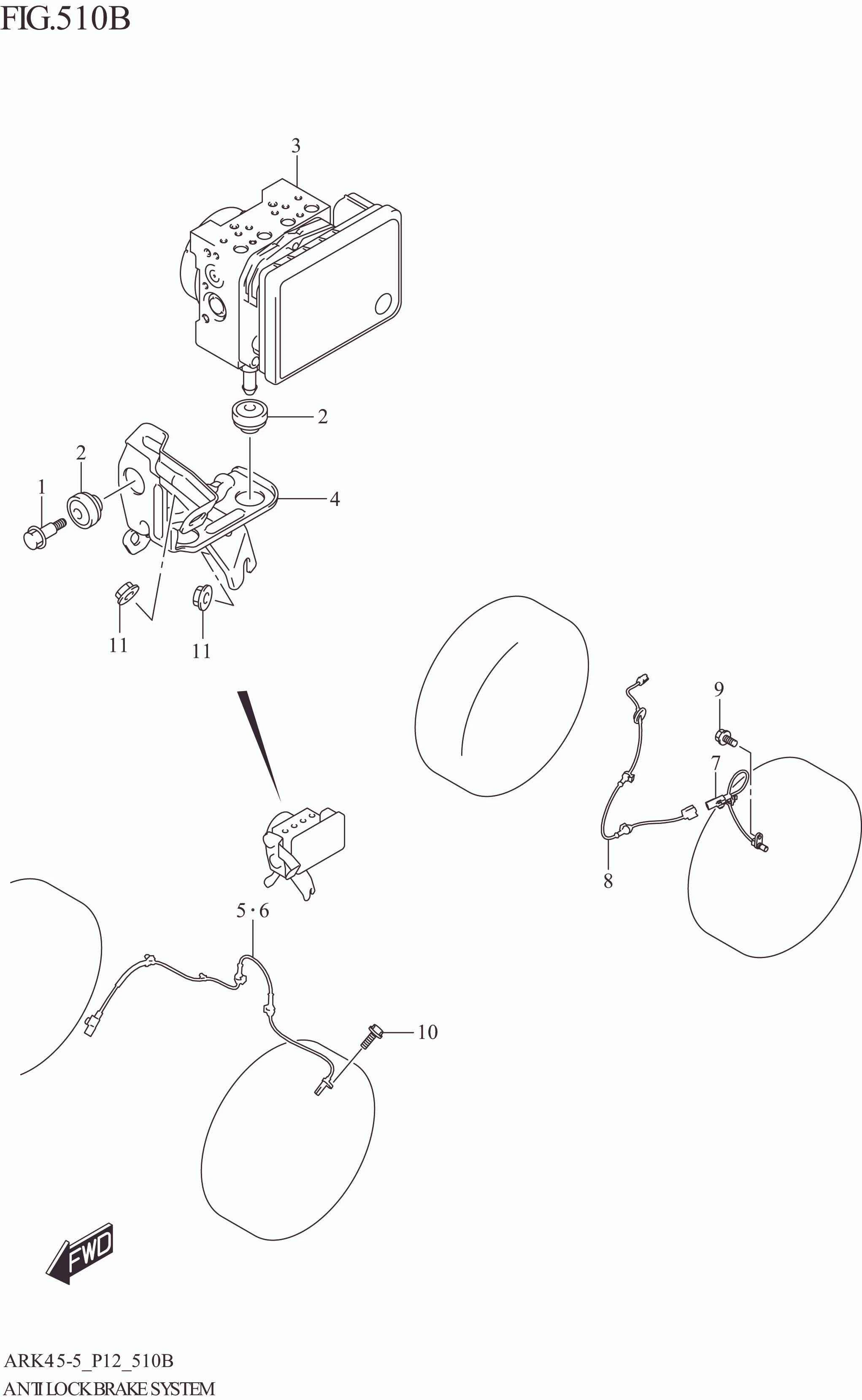

FIG. 510B ANTI LOCK BRAKE SYSTEM (W_ESP)

FIG. 510B ANTI LOCK BRAKE SYSTEM (W_ESP)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	56111-75F00-000	BOLT,ACTUATOR MOUNT	1	Rp42.500
2	56112-75F00-000	DAMPER,ACTUATOR MOUNT	3	Rp40.000
3-1	56130-73RL1-000	ACTUATOR ASSY,ESP	1	Rp5.671.500	XL7:5MT
3-2	56130-73RM1-000	ACTUATOR ASSY,ESP	1	Rp5.671.500	XL7:4AT
4	56161-68P50-000	BRACKET,ESP ACTUATOR	1	Rp45.500
5	56210-73R00-000	SENSOR,FR WHEEL,R	1	Rp175.000
6	56220-73R00-000	SENSOR,FR WHEEL,L	1	Rp175.000
7	56310-73R00-000	SENSOR,RR WHEEL	2	Rp137.500
8	56315-73R00-000	HARNESS,RR WHEEL SENSOR	2	Rp109.500
9	01550-0612A-000	BOLT (6X12)	2	Rp3.500
10	02162-0616A-000	SCREW (6X16)	2	Rp3.000
11	08316-1008A-000	NUT	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
