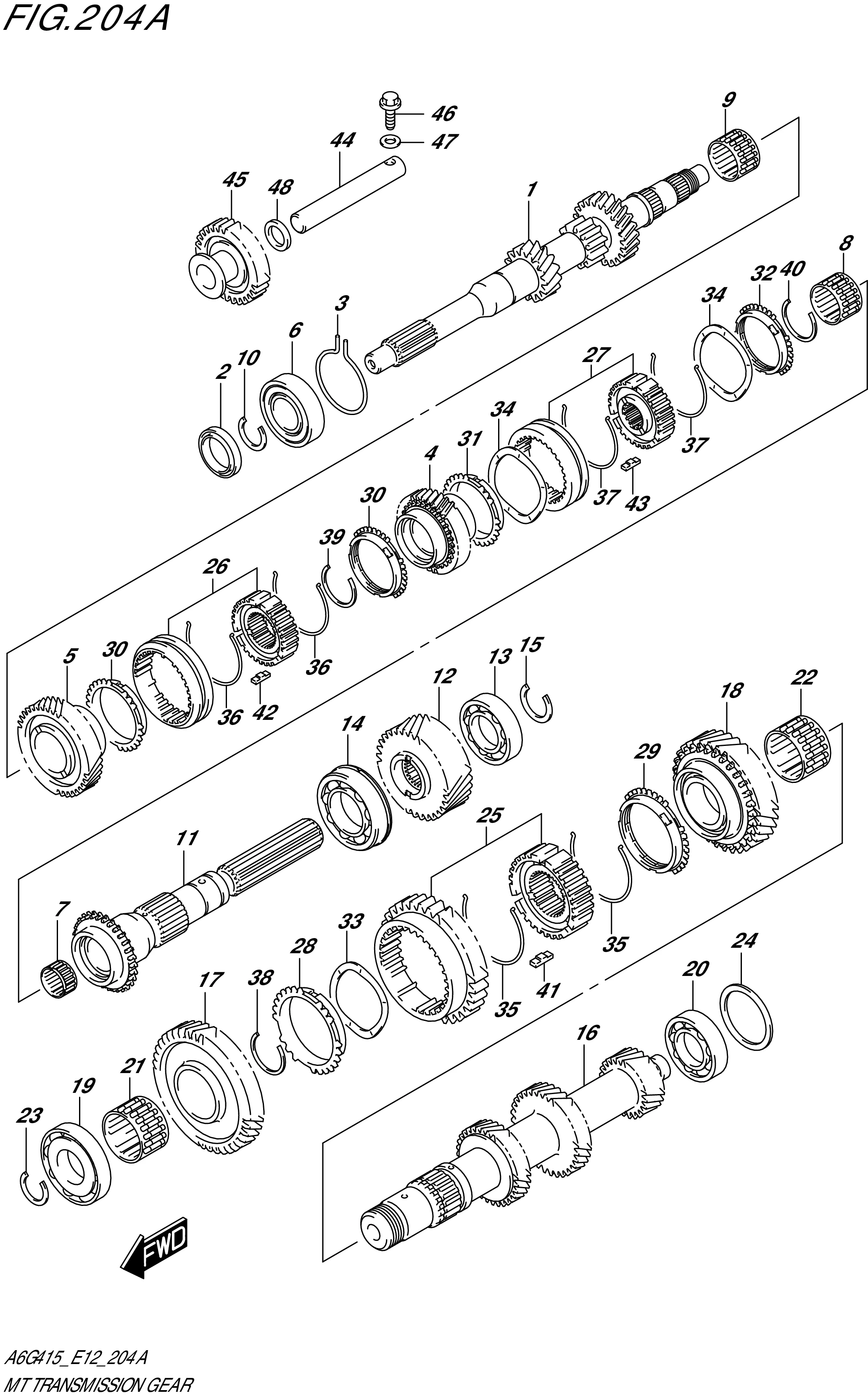

FIG. 204A - MT TRANSMISSION GEAR (5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	24111-78R00-000	SHAFT,TRANSMISSION INPUT	1	Rp2.748.500
2	09283-25101-000	SEAL,OIL,23.9X38X6 (23.9X38X6)	1	Rp81.500
3	24191-76J00-000	RING,INPUT SHAFT BRG SNAP	1	Rp36.000
4	24230-76J21-000	GEAR,INPUT SHAFT 3RD	1	Rp1.297.500
5	24241-76J20-000	GEAR,INPUT SHAFT 4TH	1	Rp1.184.000
6	09262-25138-000	BEARING,25X52X15 (25X52X15)	1	Rp318.500
7	09263-15045-000	BEARING,15X20X15.8 (15X20X15.8)	1	Rp60.000
8	24284-60B00-000	BEARING	1	Rp121.000
9	24283M68K20-000	BEARING (25X30X23.8)	1	Rp56.500
10	09380-25011-000	CIRCLIP	1	Rp14.500
11	24121-76J02-000	SHAFT, OUTPUT	1	Rp2.047.000
12	24122-76J00-000	GEAR,T/M OUTPUT SHAFT	1	Rp790.500
13	09262-25188-000	BEARING,T/M OUTPUT SHAFT RR	1	Rp240.000
14	09262-35092-000	BEARING,35X62X14 (35X62X14)	1	Rp285.500
15	09380-25011-000	CIRCLIP	1	Rp14.500
16	24131-78R00-000	SHAFT,TRANSMISSION COUNTER	1	Rp2.953.500
17	24311-76J21-000	GEAR,COUNTERSHAFT 1ST	1	Rp1.270.000
18	24320-77R00-000	GEAR,COUNTERSHAFT 2ND	1	Rp1.493.000
19	09262-25187-000	BEARING,COUNTERSHAFT FR	1	Rp418.500
20	09262-20163-000	BEARING,20X52X15 (20X52X15)	1	Rp279.000
21	09263-30030-000	BEARING (30X35X24.8)	1	Rp135.500
22	09263-30066-000	BEARING,2ND GEAR NDL	1	Rp171.500
23	09380-25011-000	CIRCLIP	1	Rp14.500
24-9	24391-82M00-180	SHIM,COUNTERSHAFT RR BRG T1.80(T1.80)	0	Rp35.000
24-8	24391-82M00-170	SHIM,COUNTERSHAFT RR BRG T1.70(T1.70)	0	Rp35.000
24-7	24391-82M00-160	SHIM,COUNTERSHAFT RR BRG T1.60(T1.60)	0	Rp35.000
24-6	24391-82M00-150	SHIM,COUNTERSHAFT RR BRG T1.50(T1.50)	0	Rp35.000
24-4	24391-82M00-130	SHIM,COUNTERSHAFT RR BRG T1.30(T1.30)	0	Rp35.000
24-3	24391-82M00-120	SHIM,COUNTERSHAFT RR BRG T1.20(T1.20)	0	Rp35.000
24-2	24391-82M00-110	SHIM,COUNTERSHAFT RR BRG T1.10(T1.10)	0	Rp35.000
24-1	24391-82M00-100	SHIM,COUNTERSHAFT RR BRG T1.00(T1.00)	0	Rp35.000
24-5	24391-82M00-140	SHIM,COUNTERSHAFT RR BRG T1.40(T1.40)	0	Rp35.000
25	24400-77R00-000	HUB ASSY,LOW SPEED SYNC	1	Rp1.865.000
26	24410-72J41-000	HUB ASSY,HIGH SPEED SYNC	1	Rp1.241.500
27	24420-76J00-000	HUB ASSY,5TH SPEED SYNC	1	Rp1.291.500
28	24431-63B20-000	RING,2ND GEAR SYNC	1	Rp247.000
29	24402-77R00-000	RING,2ND GEAR SYNC	1	Rp348.500
30	24432-76J00-000	RING,HIGH SPEED SYNC	2	Rp311.000
31	24432-84041-000	RING,5TH SPEED SYNC	1	Rp268.000
32	24435-76J00-000	RING,5TH SPEED SYNC	1	Rp272.000
33	24436-76G00-000	SPRING,SYNC RING LOW	1	Rp75.000
34	DISCONTINUE SUB: 24436-81051-000	SPRING,SYNC RING	2	-
35	24441-60B00-000	SPRING,LOW SPEED SYNC	2	Rp22.000
36	24442-60B00-000	SPRING,HIGH SPEED SYNC	2	Rp21.000
37	24443-60B50-000	SPRING,5TH SPEED SYNC	2	Rp19.500
38	24451-60B00-000	CIRCLIP	1	Rp30.500
39	24452-60B00-000	CIRCLIP,HIGH SPEED SYNC HUB	1	Rp26.500
40	09380M19005-000 SUB: 09380M19004-000	CIRCLIP (ID:17.5)	1	Rp5.500
41	24471-60B00-000	KEY,LOW SPEED SYNCHRONIZER	3	Rp29.000
42	24472-60B00-000	KEY,SYNCHRONIZER	3	Rp25.000
43	DISCONTINUE SUB: 24471-60D00-000	KEY,SYNCHRONIZER	3	-
44	24551-76J00-000	SHAFT,T/M REV GEAR	1	Rp160.500
45	24560-77PA1-000	GEAR,REVERSE IDLER	1	Rp790.500
46	24565-60B00-000	BOLT,REVERSE SHAFT	1	Rp21.500
47	09168M08030-000	GASKET (8.2X17X1)	1	Rp6.500
48	09161M16010-000	WASHER (16X24X3)	1	Rp5.500
