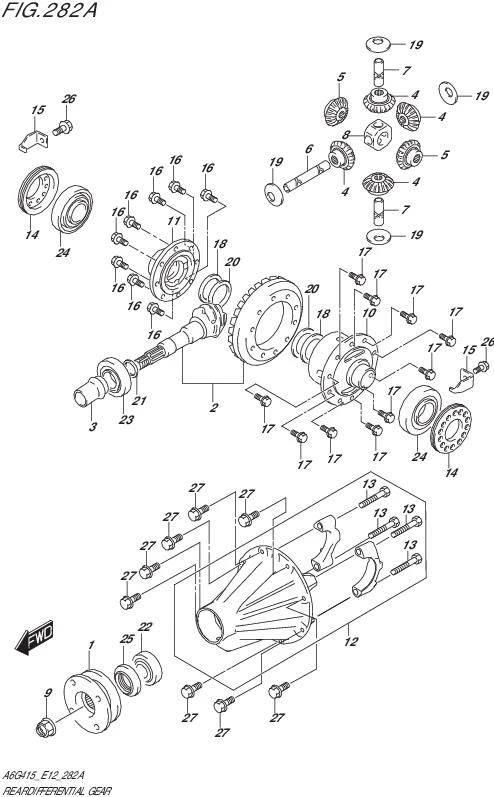

FIG.282A-REAR DIFFERENTIAL GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	27110-83C00-000	FLANGE,UNIVERSAL JOINT	1	Rp853.500
2-1	27301-77810-000	BEVEL PINION & GEAR SET	1	Rp7.037.500
2-2	27301-77820-000	BEVEL PINION & GEAR SET	1	Rp7.027.500
3	DISCONTINUE SUB: 27315-60A01-000	SPACER,DRIVE BEVEL PINION	1	-
4	27331M67K00-000	PINION,DIFFERENTIAL	4	Rp178.500
5	27341-83000-000	GEAR,DIFFERENTIAL	2	Rp599.000
6	27351-83000-000	SHAFT,DIFF PINION NO.1	1	Rp278.000
7	27355-83000-000	SHAFT,DIFF PINION NO.2	2	Rp219.000
8	27356-86081-000	JOINT,DIFF PINION SHAFT	1	Rp415.000
9	27375-60A00-000	NUT,UNIVERSAL JOINT	1	Rp78.000
10	27411-83000-000	CASE,DIFFERENTIAL,L	1	Rp1.631.500
11	27421-77R00-000	CASE,DIFFERENTIAL,R	1	Rp971.000
12	27450-83000-000	CARRIER ASSY,DIFF	1	Rp2.926.000
13	09111-12010-000	.BOLT,12X58 (12X58)	4	Rp54.500
14	27461-83000-000	ADJUSTER,DIFF SIDE BRG	2	Rp114.500
15	27462-68H00-000	PLATE,DIFF SIDE BRG LOCK	2	Rp27.000
16	09103-08563-000	BOLT,DIFF CASE	8	Rp31.500
17	09103-10469-000	BOLT,DRIVE BEVEL GEAR	10	Rp33.000
18-3	09160M35015-000	WASHER,35X46X0.6 (35X46X0.6)	2	Rp6.500
18-1	09160M35013-000	WASHER,35X46X0.8 (35X46X0.8)	2	Rp9.000
18-2	09160M35014-000	WASHER (35X46X0.7)	2	Rp10.000
19	09164M15011-000 SUB: 09164M15006-000	WASHER,15.3X30X1 (15.3X30X1)	4	Rp8.000
20	09164-35003-000	WASHER (35.2X44X0.9)	2	Rp47.500
21-8	09181-35119-000	SHIM,35X42X1.18 (35X42X1.18)	1	Rp31.000
21-12	09181-35125-000	SHIM,35X42X1.3 (35X42X1.30)	1	Rp22.500
21-11	09181-35124-000	SHIM,35X42X1.27 (35X42X1.27)	1	Rp30.500
21-10	09181-35122-000	SHIM,35X42X1.24 (35X42X1.24)	1	Rp31.000
21-9	09181-35121-000	SHIM,35X42X1.21 (35X42X1.21)	1	Rp30.500
21-7	09181-35118-000	SHIM,35X42X1.15 (35X42X1.15)	1	Rp22.500
21-6	09181-35117-000	SHIM,35X42X1.12 (35X42X1.12)	1	Rp31.000
21-5	09181-35115-000	SHIM,35X42X1.09 (35X42X1.09)	1	Rp32.000
21-4	09181-35114-000	SHIM,35X42X1.06 (35X42X1.06)	1	Rp32.000
21-3	DISCONTINUE SUB: 09181-35112-000	SHIM,35X42X1.03 (35X42X1.03)	1	-
21-2	09181-35111-000	SHIM,35X42X1 (35X42X1.00)	1	Rp32.500
21-1	09181-35101-000 SUB: 09181-35023-000	SHIM,35X42X0.3 (T:0.30)	1	Rp14.500
22	09265-30017-000	BEARING,30X72X20.75 (30X72X20.75)	1	Rp487.000
23	09265-35011-000	BEARING,35X80X22.75 (35X80X22.75)	1	Rp690.000
24	09265-45002-000	BEARING,45.2X80X19.84 (45.2X80X19.84)	2	Rp636.000
25	09283-40027-000	SEAL,OIL,40X72X18.5 (40X72X18.5)	1	Rp91.000
26	01550-0812A-000	BOLT (8X12)	2	Rp3.500
27	09117-08102-000	BOLT,8X32 (8X32)	8	Rp25.000
