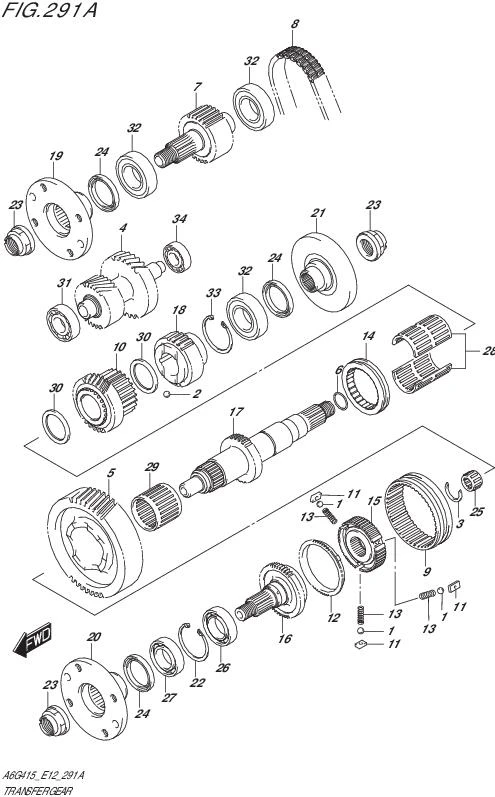

FIG.291A-TRANSFER GEAR (5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	24951-84A00-000	BALL	3	Rp33.500
2	24951-84A00-000	BALL	1	Rp33.500
3-2	25111-84A00-218	RING,SNAP (T:2.18)	1	Rp45.500
3-3	25111-84A00-224	RING,SNAP (T:2.24)	1	Rp45.500
3-4	25111-84A00-230	RING,SNAP (T:2.30)	1	Rp45.500
3-5	25111-84A00-236	RING,SNAP (T:2.36)	1	Rp45.500
3-6	25111-84A00-242	RING,SNAP (T:2.42)	1	Rp45.500
3-7	25111-84A00-248	RING,SNAP (T:2.48)	1	Rp45.500
3-8	25111-84A00-254	RING,SNAP (T:2.54)	1	Rp45.500
3-9	25111-84A00-260	RING,SNAP (T:2.60)	1	Rp45.500
3-1	25111-84A00-212	RING,SNAP (T:2.12)	1	Rp45.500
4	26223-84A01-000	GEAR,TRANSFER COUNTER	1	Rp1.571.500
5	26242-84A00-000	GEAR,OUTPUT LOW	1	Rp1.391.000
6	26253-84A00-000	O RING	1	Rp39.500
7	29111-84A01-000	SHAFT,T/F INPUT	1	Rp1.543.500
8	29225-84A00-000	CHAIN	1	Rp4.097.000
9	29231-84A00-000	SLEEVE,HUB	1	Rp1.053.000
10	29232-76J12-000	GEAR,OUTPUT	1	Rp1.772.500
11	29234-84A00-000	KEY,SYNC	3	Rp41.500
12	29235-84A60-000	RING,SYNC NO.3	1	Rp767.000
13	29236-84A00-000	SPRING,KEY	3	Rp40.000
14	29241-80050-000	SLEEVE,REDUCTION CLUTCH	1	Rp816.000
15	29242-84A00-000	HUB,FRONT DRIVE CLUTCH	1	Rp1.183.000
16	29251-84A00-000	SHAFT,TRANSFER OUTPUT RR	1	Rp2.805.500
17	29252-84A00-000	SHAFT,TRANSFER OUTPUT FR	1	Rp2.397.500
18	26481-77R00-000	SPACER,T/F OUTPUT	1	Rp502.500
19	29711-81A01-000	FLANGE,UNIVERSAL JOINT	1	Rp813.000
20	29711-81A01-000	FLANGE,UNIVERSAL JOINT	1	Rp813.000
21	29260-78R00-000	DAMPER ASSY,DYNAMIC	1	Rp2.831.500
22	29913-55C00-000	RING,SNAP	1	Rp61.500
23	29951-83050-000	NUT	3	Rp100.000
24	29972-80060-000	SEAL,OIL	3	Rp85.000
25	29981-84A00-000	BEARING	1	Rp160.500
26	29982-84A60-000	BEARING	1	Rp462.500
27	29983-55C00-000	BEARING	1	Rp319.000
28	29984-84A00-000	BEARING	1	Rp372.000
29	29985-84A00-000	BEARING	1	Rp198.500
30	29986-84A00-000	BEARING	2	Rp312.000
31	29987-84A00-000	BEARING	1	Rp301.500
32	29988-77R00-000	BEARING	3	Rp419.000
33	29992-80050-000	CIRCLIP,T/F INPUT SHAFT BRG	1	Rp55.500
34	09262-17023-000	BEARING,17X40X12 (17X40X12)	1	Rp128.000
