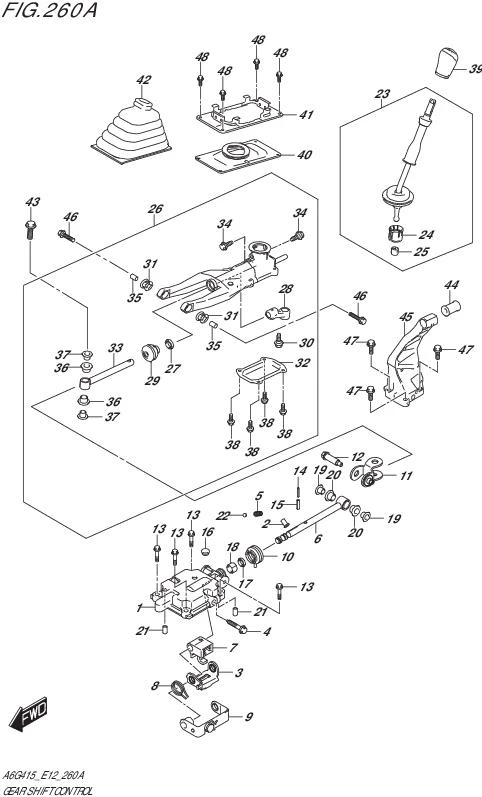

FIG.260A-GEAR SHIFT CONTROL (5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	25121-76J00-000	CASE,GEAR SHIFT LEVER	1	Rp733.500
2	25250-77A00-000	LOCATING	1	Rp74.000
3	25310-77R00-000	PLATE,GEAR SHF INTERLOCK	1	Rp282.000
4	25321-84A00-000	BOLT,GEAR SHIFT STOP	1	Rp47.000
5	25415-77D00-000	SPRING,GEAR SHF LOCATING	1	Rp25.000
6	25510-77R00-000	SHAFT,GEAR SHIFT	1	Rp350.000
7	25541-76J02-000	ARM,GEAR SHIFT & SELECT	1	Rp498.000
8	25576-84A20-000	SPRING,GEAR SELECT RETURN	1	Rp33.500
9	DISCONTINUE SUB: 25580-84A01-000	PLATE,REV GR SHIFT LIMIT	1	-
10	25651M68K00-000 SUB: 25651M74B00-000	BOOT,SHIFT & SELECT SFT OIL	1	Rp10.500
11	28253-77R00-000	JOINT,GEAR SHF CONT	1	Rp119.500
12	28254-77R00-000	BOLT,CONT SHAFT JOINT	1	Rp52.500
13	09103-08153-000	BOLT,8X30 (8X30)	4	Rp18.500
14	09205M03049-000 SUB: 09205M03037-000	PIN,SPRING (3X25)	1	Rp6.500
15	09205M06016-000	PIN,SPRING (6X25)	1	Rp4.500
16	09250-12004-000	CAP,OD:17 (OD:17)	1	Rp17.500
17	09283M14005-000	SEAL,OIL,14X22X7.3 (14X22X6.0)	1	Rp9.000
18	09304-14020-000	BUSH (16X10)	1	Rp27.000
19	09306-12011-000	BUSH	2	Rp21.000
20	09320-14024-000	BUSH	2	Rp26.500
21	DISCONTINUE SUB: 04211-09169-000	PIN (9X16)	2	-
22	06111-10003-000	BALL	1	Rp10.000
23	28101-77R00-000	LEVER,GEAR SHIFT CONTROL	1	Rp2.105.500
24	28116-77R00-000	.SEAT,GEAR SHIFT CONT LEVER	1	Rp134.500
25	28151-84A01-000	.BUSH,GR SHF CONTROL LEVER	1	Rp33.000
26	28102-77R00-000	ARM ASSY,GEAR SHIFT CONT	1	Rp2.498.000
27	25517-84MD0-000	.SEAL,GEAR SHIFT SHAFT OIL	1	Rp81.500
28	25531-77R00-000	.ARM,GEAR SHIFT CONTROL	1	Rp480.000
29	25651-52R00-000	.BOOT,SHIFT & SELECT SFT	1	Rp65.500
30	25701-60B10-000	.BOLT,GEAR SHIFT YOKE	1	Rp25.500
31	28119-77R00-000	.BUSH,SHIFT CONTROL ARM	2	Rp60.500
32	28242-77R00-000	.PLATE,GEAR SHIFT CONTROL	1	Rp125.000
33	28270-77R01-000	.SHAFT,GEAR SHIFT CONT	1	Rp415.500
34	09103-08384-000	.BOLT (8X18.4)	2	Rp30.500
35	09180-08193-000	.SPACER,8.5X12X17 (8.5X12X17)	2	Rp26.500
36	09306-12011-000	.BUSH	2	Rp21.000
37	09320-14024-000	.BUSH	2	Rp26.500
38	DISCONTINUE SUB: 01550-0816C-000	.BOLT	4	-
39	28113M79M41-C48 SUB: 28113M79M02-C48	KNOB,GEAR SHIFT CONT LEVER (CHROME,BLACK)	1	Rp155.000
40	28135-77R00-000	BOOT,GEAR SHF LEVER NO.1	1	Rp190.000
41	28137-77R00-000	COVER,GEAR SHIFT CONT BOOT	1	Rp267.500
42	28138-77R00-5PK	BOOT,GEAR SHF LEVER NO.3 (BLACK)	1	Rp445.000
43	28254-77R00-000	BOLT,CONT SHAFT JOINT	1	Rp52.500
44	28222-77R00-000	BUSH,GEAR SHIFT CONT BRACKET	1	Rp77.500
45	28291-77R00-000	BRACKET,GR SHF CONT RR	1	Rp959.000
46	09118-08130-000	BOLT,8X35 (8X35)	2	Rp22.000
47	01551-1030A-000 SUB: 01551M1030A-000	BOLT	3	Rp27.000
48	02162-0616A-000	SCREW (6X16)	4	Rp3.000
