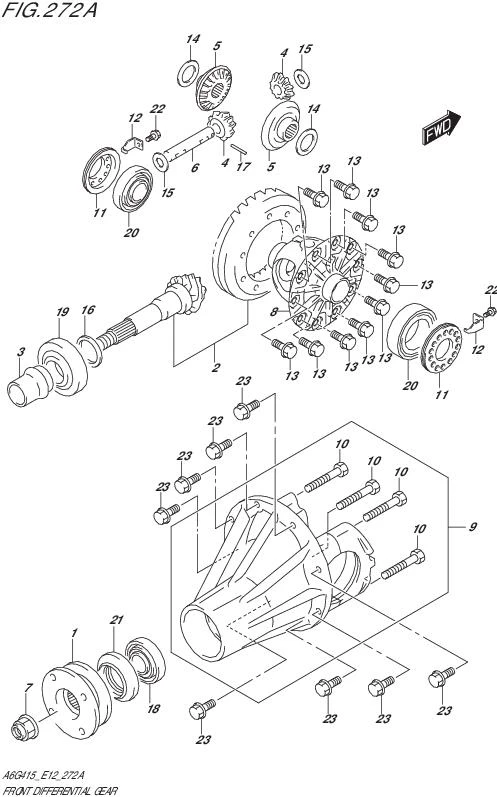

FIG.272A-FRONT DIFFERENTIAL GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	27110-83C00-000	FLANGE,UNIVERSAL JOINT	1	Rp853.500
2-1	27300-77880-000	BEVEL PINION & GEAR SET	1	Rp7.037.500
2-2	27300-77890-000	BEVEL PINION & GEAR SET	1	Rp7.027.500
3	DISCONTINUE SUB: 27315-60A01-000	SPACER,DRIVE BEVEL PINION	1	-
4	27331-76A21-000	PINION,DIFFERENTIAL	2	Rp526.500
5	27341-76A22-000	GEAR,DIFF	2	Rp642.000
6	27351-64B40-000	SHAFT,DIFFERENTIAL PINION	1	Rp266.500
7	27375-60A00-000	NUT,UNIVERSAL JOINT	1	Rp78.000
8	27411-81A60-000	CASE,DIFFERENTIAL	1	Rp2.049.000
9	27450-81A60-000	CARRIER ASSY,DIFFERENTIAL	1	Rp2.974.500
10	DISCONTINUE SUB: 09111-10054-000	.BOLT,10X50 (10X50)	4	-
11	DISCONTINUE SUB: 27461-63201-000	ADJUSTER,DIFF SIDE BEARING	2	-
12	27462-68H00-000	PLATE,DIFF SIDE BRG LOCK	2	Rp27.000
13	09103-10309-000	BOLT (10X16)	10	Rp39.500
14-7	09160M35004-000	WASHER (35X46X1.20)	0	Rp14.500
14-6	09160M35010-000	WASHER (35X46X1.15)	0	Rp9.500
14-5	09160M35003-000	WASHER (35X46X1.10)	0	Rp9.000
14-3	09160M35002-000	WASHER (35X46X1.0)	0	Rp9.500
14-2	09160M35008-000	WASHER (35X46X0.95)	0	Rp14.500
14-1	09160M35006-000	WASHER (35X46X0.9)	0	Rp8.500
14-4	09160M35009-000	WASHER (35X46X1.05)	0	Rp14.000
15	09164M15011-000 SUB: 09164M15006-000	WASHER,15.3X30X1 (15.3X30X1)	2	Rp8.000
16-8	09181-35119-000	SHIM,35X42X1.18 (35X42X1.18)	0	Rp31.000
16-12	09181-35125-000	SHIM,35X42X1.3 (35X42X1.30)	0	Rp22.500
16-11	09181-35124-000	SHIM,35X42X1.27 (35X42X1.27)	0	Rp30.500
16-10	09181-35122-000	SHIM,35X42X1.24 (35X42X1.24)	0	Rp31.000
16-9	09181-35121-000	SHIM,35X42X1.21 (35X42X1.21)	0	Rp30.500
16-7	09181-35118-000	SHIM,35X42X1.15 (35X42X1.15)	0	Rp22.500
16-6	09181-35117-000	SHIM,35X42X1.12 (35X42X1.12)	0	Rp31.000
16-5	09181-35115-000	SHIM,35X42X1.09 (35X42X1.09)	0	Rp32.000
16-4	09181-35114-000	SHIM,35X42X1.06 (35X42X1.06)	0	Rp32.000
16-3	DISCONTINUE SUB: 09181-35112-000	SHIM,35X42X1.03 (35X42X1.03)	0	-
16-2	09181-35111-000	SHIM,35X42X1 (35X42X1.00)	0	Rp32.500
16-1	09181-35101-000 SUB: 09181-35023-000	SHIM,35X42X0.3 (T:0.30)	0	Rp14.500
17	09205-05016-000	PIN,SPRING (5X32)	1	Rp16.500
18	09265-30017-000	BEARING,30X72X20.75 (30X72X20.75)	1	Rp487.000
19	09265-35011-000	BEARING,35X80X22.75 (35X80X22.75)	1	Rp690.000
20	09265-41001-000	BEARING,41X68X17.5 (41X68X17.5)	2	Rp474.000
21	09283-40027-000	SEAL,OIL,40X72X18.5 (40X72X18.5)	1	Rp91.000
22	01550-0812A-000	BOLT (8X12)	2	Rp3.500
23	09117-08102-000	BOLT,8X32 (8X32)	8	Rp25.000
