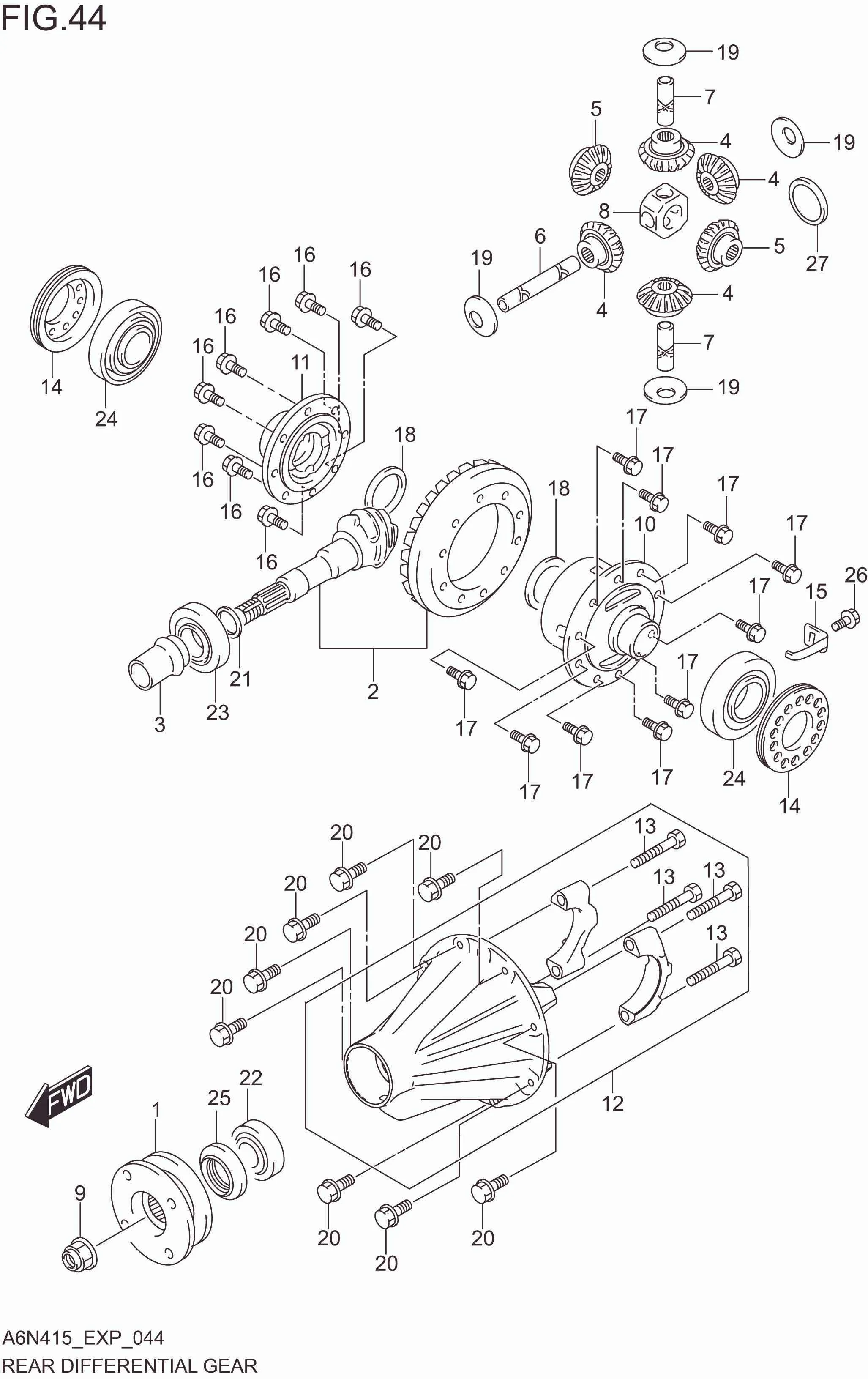

FIG. 044 REAR DIFFERENTIAL GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	27110-83C00-000	FLANGE,UNIVERSAL JOINT	1	Rp853.500
2-1	27038-80TC0-000	BEVEL PINION & GEAR SET	1	Rp5.700.000
2-2	27038-80TD0-000	BEVEL PINION & GEAR SET	1	Rp5.700.000
3	DISCONTINUE SUB: 27315-60A01-000	SPACER,DRIVE BEVEL PINION	1	-
4	27331M80TA0-000	PINION,DIFFERENTIAL	4	Rp91.500
5	27341M80TA0-000	GEAR,DIFF	2	Rp170.500
6	27351M80TA0-000	SHAFT,DIFF PINION,NO.1	1	Rp47.000
7	27355M80TA0-000	SHAFT,DIFF PINION,NO.2	2	Rp27.500
8	27356M80TA0-000	JOINT,DIFF PINION SHAFT	1	Rp72.000
9	27375M80T00-000	NUT,UNIVERSAL JOINT	1	Rp24.000
10	27411M80TA0-000	CASE,DIFFERENTIAL,LH	1	Rp743.500
11	27421-77R00-000	CASE,DIFF,RH	1	Rp971.000
12	27450M80TA0-000	CARRIER ASSY,DIFFERENTIAL	1	Rp2.474.500
13	09111M12013-000	.BOLT,12X58 (12X58)	4	Rp27.000
14	27461M80TA0-000	ADJUSTER,DIFF SIDE BRG	2	Rp37.500
15	27462M80T00-000	PLATE,DIFF SIDE BRG LOCK	2	Rp5.000
16	09103-08563-000	BOLT	8	Rp31.500
17	09103-10469-000	BOLT	10	Rp33.000
18-6	09160M35022-000	WASHER,DIFF SIDE T0.95	2	Rp10.000
18-5	09160M35021-000	WASHER,DIFF SIDE T0.9	2	Rp10.000
18-4	09160M35018-000	WASHER,DIFF SIDE T1.0	2	Rp20.500
18-2	09160M35014-000	WASHER,DIFF SIDE T0.7	2	Rp10.000
18-1	09160M35013-000	WASHER,DIFF SIDE T0.8	2	Rp9.000
18-3	09160M35015-000	WASHER,DIFF SIDE T0.6	2	Rp6.500
19	09164M15011-000	WASHER,DIFF PINION	4	Rp8.000
20	09117M08116-000	BOLT,8X32 (8X32)	8	-
21-7	09181-35118-000	SHIM (T:1.250)	1	Rp22.500
21-12	09181-35125-000	SHIM (T:1.300)	1	Rp22.500
21-11	09181-35124-000	SHIM (T:1.270)	1	Rp30.500
21-10	09181-35122-000	SHIM (T:1.240)	1	Rp31.000
21-9	09181-35121-000	SHIM (T:1.210)	1	Rp30.500
21-8	09181-35119-000	SHIM (T:1.180)	1	Rp31.000
21-6	09181-35117-000	SHIM (T:1.120)	1	Rp31.000
21-5	09181-35115-000	SHIM (T:1.090)	1	Rp32.000
21-4	09181-35114-000	SHIM (T:1.060)	1	Rp32.000
21-3	DISCONTINUE SUB: 09181-35112-000	SHIM (T:1.030)	1	-
21-2	09181-35111-000	SHIM (T:1.000)	1	Rp32.500
21-1	09181-35101-000	SHIM (T:0.300)	1	Rp14.500
22	09265-30017-000	BEARING,30X72X20.75	1	Rp487.000
23	09265-35011-000	BEARING,35X80X22.75	1	Rp690.000
24	09265-45002-000	BEARING,45.2X80X19.84	2	Rp636.000
25	09283-40027-000	SEAL,OIL,40X72X18.5	1	Rp91.000
26	01550-0812A-000	BOLT (8X12)	2	Rp3.500
27	27361M76M00-000	WASHER,DIFF GEAR SPRING	2	Rp4.500
