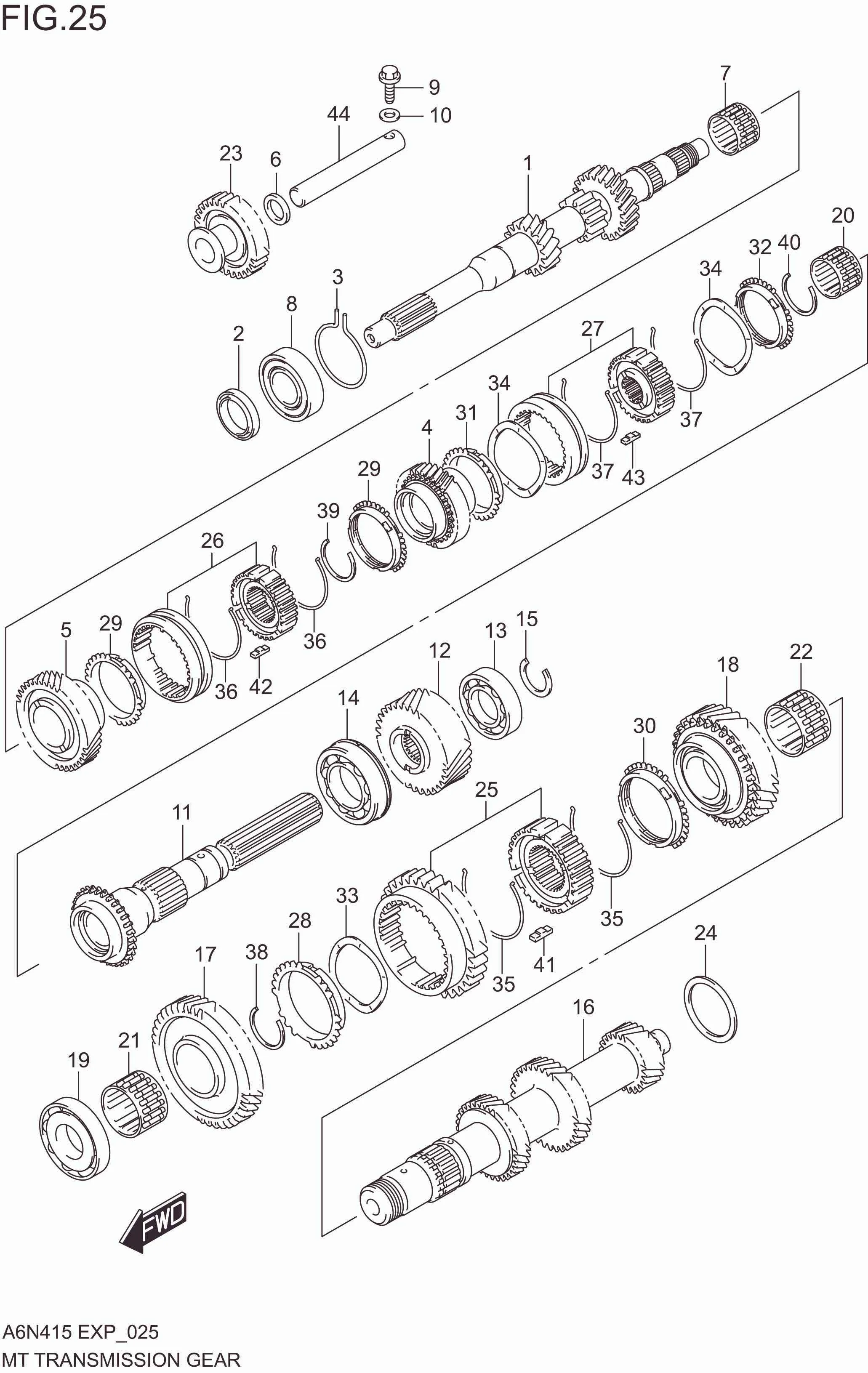

FIG. 025 MT TRANSMISSION GEAR(5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	24111M80T00-000	SHAFT,TRANSMISSION INPUT	1	Rp1.406.000
2	09283M25109-000	SEAL,OIL,23.9X38X6 (23.9X38X6)	1	Rp21.500
3	24191M77P00-000	RING,INPUT SHAFT BRG SNAP	1	Rp4.000
4	24230M77PA0-000	GEAR,INPUT SHAFT 3RD	1	Rp1.214.000
5	24241M80T00-000	GEAR,INPUT SHAFT 4TH	1	Rp549.500
6	09161M16014-000	WASHER (16X24X3)	1	Rp4.000
7	24152M77P00-000	BEARING,INPUT SHAFT NDL	1	Rp21.500
8	24155M77P01-000	BEARING,INPUT SHAFT FR	1	Rp102.000
9	24565M53M00-000	BOLT,REVERSE SHAFT	1	Rp9.500
10	09168M08030-000	GASKET (8.2X17X1)	1	Rp6.500
11	24121-76J02-000	SHAFT,OUTPUT	1	Rp2.047.000
12	24122M77P00-000	GEAR,T/M OUTPUT SHAFT	1	Rp351.500
13	24126M77P00-000	BEARING,T/M OUTPUT SHAFT RR	1	Rp61.000
14	24125M77P00-000	BEARING,T/M OUTPUT SHAFT FR	1	Rp102.000
15	09380M25015-000	CIRCLIP	1	Rp1.500
16	24131M80T00-000	SHAFT, COUNTER	1	Rp2.343.500
17	24311M77PA0-000	GEAR, COUNTER SHAFT 1ST	1	Rp651.000
18	24320M80T00-000	GEAR, COUNTER SHAFT 2ND	1	Rp1.035.500
19	24135M77P00-000	BEARING,COUNTERSHAFT FR	1	Rp59.500
20	24283M68K20-000	BEARING,3RD GEAR NDL	1	Rp56.500
21	24381M68K20-000	BEARING,1ST GEAR NDL	1	Rp57.000
22	24136M77P40-000	BEARING,COUNTERSHAFT RR	1	Rp144.000
23	24560-77PA1-000	GEAR, REVERSE IDLE	1	Rp790.500
24-9	24391M77P00-180	SHIM,COUNTERSHAFT RR BRG T1.80	1	Rp5.500
24-8	24391M77P00-170	SHIM,COUNTERSHAFT RR BRG T1.70	1	Rp5.500
24-7	24391M77P00-160	SHIM,COUNTERSHAFT RR BRG T1.60	1	Rp5.500
24-6	24391M77P00-150	SHIM,COUNTERSHAFT RR BRG T1.50	1	Rp5.500
24-4	24391M77P00-130	SHIM,COUNTERSHAFT RR BRG T1.30	1	Rp5.500
24-3	24391M77P00-120	SHIM,COUNTERSHAFT RR BRG T1.20	1	Rp5.500
24-2	24391M77P00-110	SHIM,COUNTERSHAFT RR BRG T1.10	1	Rp5.500
24-1	24391M77P00-100	SHIM,COUNTERSHAFT RR BRG T1.00	1	Rp5.000
24-5	24391M77P00-140	SHIM,COUNTERSHAFT RR BRG T1.40	1	Rp5.500
25	24400M80T00-000	HUB ASSY, LOW SPEED SYNC	1	Rp803.500
26-1	24410M67K20-000	HUB ASSY,HIGH SPEED SYNC	1	Rp442.000
26-2	24410M68K20-000	HUB ASSY,HIGH SPEED SYNC	1	Rp1.180.500
27	24420M77P00-000	HUB ASSY,5TH SPEED SYNC	1	Rp192.500
28	24402M80T00-000	RING,2ND GEAR SYNC	1	Rp263.500
29	24432M77P00-000	RING,HIGH SPEED SYNC	2	Rp56.000
30-1	24432M79GA0-000	RING,1ST GEAR SYNC	1	Rp98.500
30-2	24432M79GC0-000	RING,1ST GEAR SYNC	1	Rp98.500
31	24435M77P00-000	RING,5TH SPEED SYNC	1	Rp47.000
32-1	24435M79GA0-000	RING,REV SHF BRAKE	1	Rp69.500
32-2	24435M79GC0-000	RING,REV SHF BRAKE	1	Rp76.500
33	24436-76G00-000	SPRING,SYNC RING LOW	1	Rp75.000
34	DISCONTINUE SUB: 24436-81051-000	SPRING,SYNC RING	2	-
35	24441-60B00-000	SPRING,LOW SPEED SYNC	2	Rp22.000
36	24442-60B00-000	SPRING,HIGH SPEED SYNC	2	Rp21.000
37	24443-60B50-000	SPRING,5TH SPEED SYNC	2	Rp19.500
38-1	24451M67K00-000	CIRCLIP,LOW SPEED SYNC HUB	1	Rp3.000
38-2	24451M67K20-000	CIRCLIP,LOW SPEED SYNC HUB	1	Rp3.000
39	24452M68K00-000	CIRCLIP,HIGH SPEED SYNC HUB	1	Rp8.500
40	09380M19005-000	RING,SNAP (ID:17.5)	1	Rp5.500
41	24471-60B00-000	KEY,LOW SPEED SYNCHRONIZER	3	Rp29.000
42	24472-60B00-000	KEY,SYNCHRONIZER	3	Rp25.000
43	DISCONTINUE SUB: 24471-60D00-000	KEY,SYNCHRONIZER	3	-
44	24551M77P20-000	SHAFT,T/M REV GEAR	1	Rp55.500
