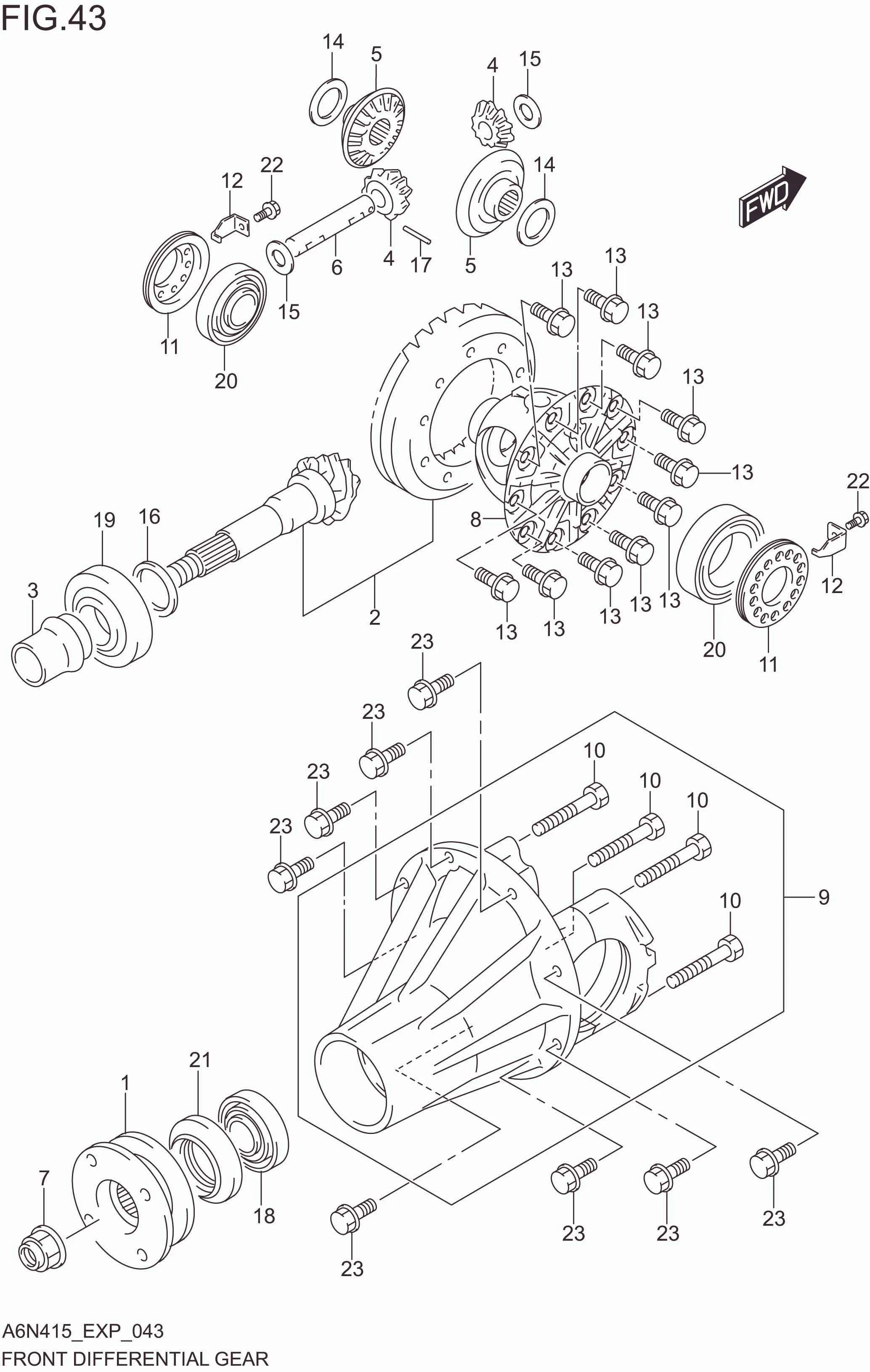

FIG. 043 FRONT DIFFERENTIAL GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	27110-83C00-000	FLANGE,UNIVERSAL JOINT	1	Rp853.500
2-1	27038-80T20-000	BEVEL PINION & GEAR SET	1	Rp5.700.000
2-2	27038-80T30-000	BEVEL PINION & GEAR SET	1	Rp5.700.000
3	DISCONTINUE SUB: 27315-60A01-000	SPACER,DRIVE BEVEL PINION	1	-
4	27331M74L00-000	PINION,DIFFERENTIAL	2	Rp440.000
5	27341M74L00-000	GEAR, DIFF	2	Rp155.500
6	27351M74L00-000	SHAFT,DIFFERENTIAL PINION	1	Rp104.000
7	27375M80T00-000	NUT,UNIVERSAL JOINT	1	Rp24.000
8	27411M80T00-000	CASE,DIFFERENTIAL	1	Rp685.000
9	27450M80T00-000	CARRIER ASSY,DIFFERENTIAL	1	Rp2.064.000
10	27322M78L00-000	.BOLT (10X50)	4	Rp11.500
11	27461M80T00-000	ADJUSTER,DIFF SIDE BEARING	2	Rp32.500
12	27462M80T00-000	PLATE,DIFF SIDE BRG LOCK	2	Rp5.000
13	09103-10309-000	BOLT (10X16)	10	Rp39.500
14-7	09160M35024-000	WASHER (35X46X1.20)	0	Rp4.500
14-6	09160M35023-000	WASHER (35X46X1.15)	0	Rp10.000
14-5	09160M35022-000	WASHER (35X46X1.10)	0	Rp10.000
14-3	09160M35020-000	WASHER (35X46X1.0)	0	Rp4.500
14-2	09160M35019-000	WASHER (35X46X0.95)	0	Rp4.500
14-1	09160M35018-000	WASHER (35X46X0.9)	0	Rp20.500
14-4	09160M35021-000	WASHER (35X46X1.05)	0	Rp10.000
15	09164M15011-000	WASHER (15.3X30X1)	2	Rp8.000
16-8	09181-35119-000	SHIM (T:1.180)	0	Rp31.000
16-12	09181-35125-000	SHIM (T:1.300)	0	Rp22.500
16-11	09181-35124-000	SHIM (T:1.270)	0	Rp30.500
16-10	09181-35122-000	SHIM (T:1.240)	0	Rp31.000
16-9	09181-35121-000	SHIM (T:1.210)	0	Rp30.500
16-7	09181-35118-000	SHIM (T:1.250)	0	Rp22.500
16-6	09181-35117-000	SHIM (T:1.120)	0	Rp31.000
16-5	09181-35115-000	SHIM (T:1.090)	0	Rp32.000
16-4	09181-35114-000	SHIM (T:1.060)	0	Rp32.000
16-3	DISCONTINUE SUB: 09181-35112-000	SHIM (T:1.030)	0	-
16-2	09181-35111-000	SHIM (T:1.000)	0	Rp32.500
16-1	09181-35101-000	SHIM (T:0.300)	0	Rp14.500
17	09205-05016-000	PIN,SPRING (5X32)	1	Rp16.500
18	09265-30017-000	BEARING,DR BEVEL PINION FR	1	Rp487.000
19	09265-35011-000	BEARING,DRIVE BEVEL PINION RR	1	Rp690.000
20	09265-41001-000	BEARING,DIFF SIDE	2	Rp474.000
21	09283-40027-000	SEAL,OIL,40X72X18.5	1	Rp91.000
22	01550-0812A-000	BOLT	2	Rp3.500
23	09117M08116-000	BOLT,8X32 (8X32)	8	-
